1. Control System
Boasting a premium microcontroller-driven control system, the equipment is endowed with a reliable core control unit. This not only ensures long-term, smooth operation but also markedly minimizes the risk of malfunctions.
2. Frame Structure
The frame is manufactured using an integral casting process. This design enhances the equipment’s structural stability, granting it superior rigidity and improved anti-vibration capabilities, thus laying a solid foundation for stable performance.
3. Heating Technology
The device adopts infrared lamp heating, which offers strong heat penetration. Meanwhile, the integrated design of bottle preform rotation and orbital heating promotes even heat dispersion, ultimately achieving fast, consistent, and dependable heating results.
4. Adaptability & Temperature Control
The internal baffles of the heating tube can be flexibly adjusted in both width and height, allowing the equipment to fit various types of bottle preforms. Additionally, the built-in automatic exhaust function promptly adjusts the internal environment of the heating tube, ensuring constant heating conditions at all times.
5. Safety Mechanism
Every mechanical motion is equipped with a safety self-locking mechanism. If a production fault occurs, the system immediately activates the protection procedure and automatically switches to a safe operating mode to prevent potential hazards.
6. Drive & Environmental Friendliness

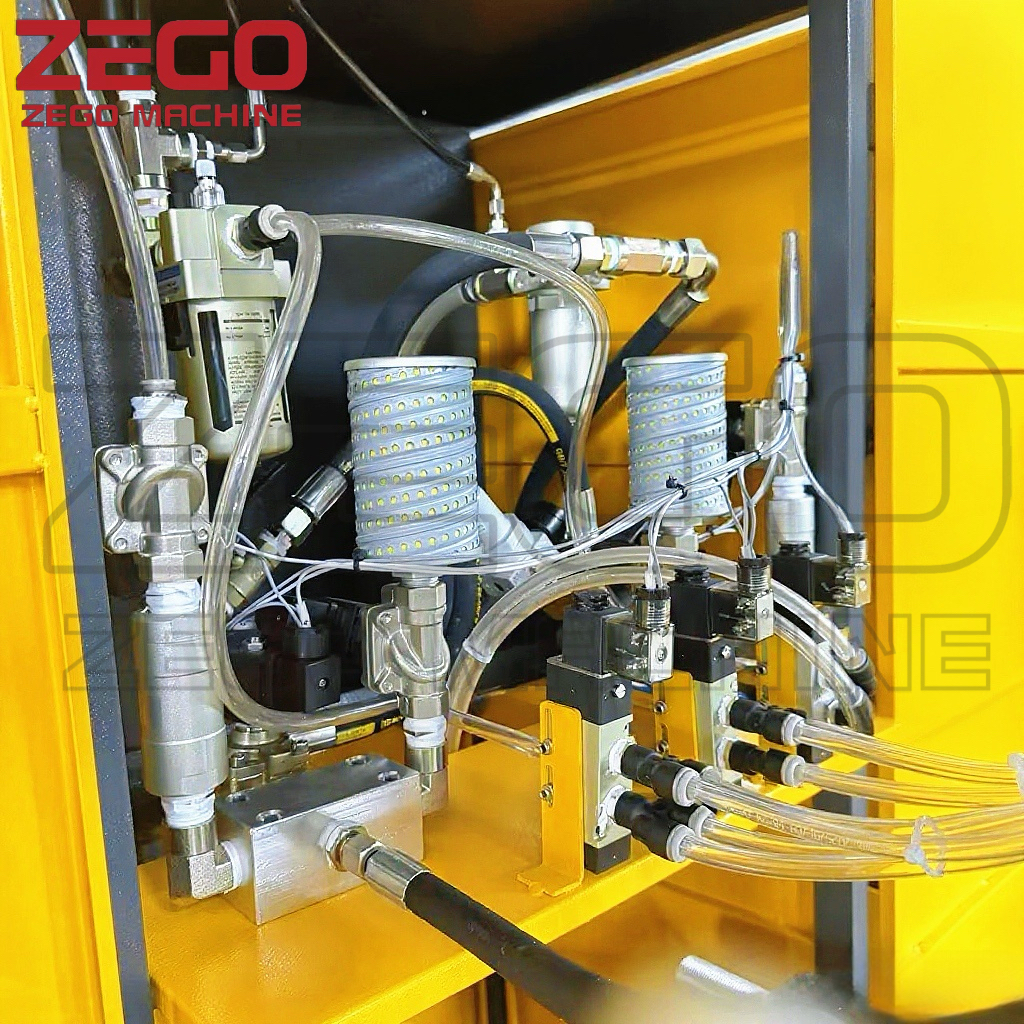

Cylinders act as the driving components, eliminating the requirement for an additional oil pump. This design not only eliminates oil pollution from the source for a clean working process but also effectively reduces the noise generated by the equipment during operation.
|
| ZG100-25L |
| Container | Clamping Force(KN) | 130 |
| Clamping Stroke(MM) | 360 |
| Stretching Stroke(MM) | 500 |
| Cavity | 1-2 |
| Capacity(BPH) | 80-100 |
| Max.Bottle Volume(LTR) | 25 |
| Max.Neck Diameter(MM) | 130 |
| Max.Bottle Diameter(MM) | 300 |
| Max.Height(MM) | 520 |
| Electric Sydstem | Total Power(KW) | 15 |
| Heating Power(KW) | 10 |
| Machine Specification | Blower size(MM) | 2180×740×1900 |
| Blower weight(MM) | 1250 |
| Heater size(MM) | 2170×670×1600 |
| Heater weight(MM) | 400 |
