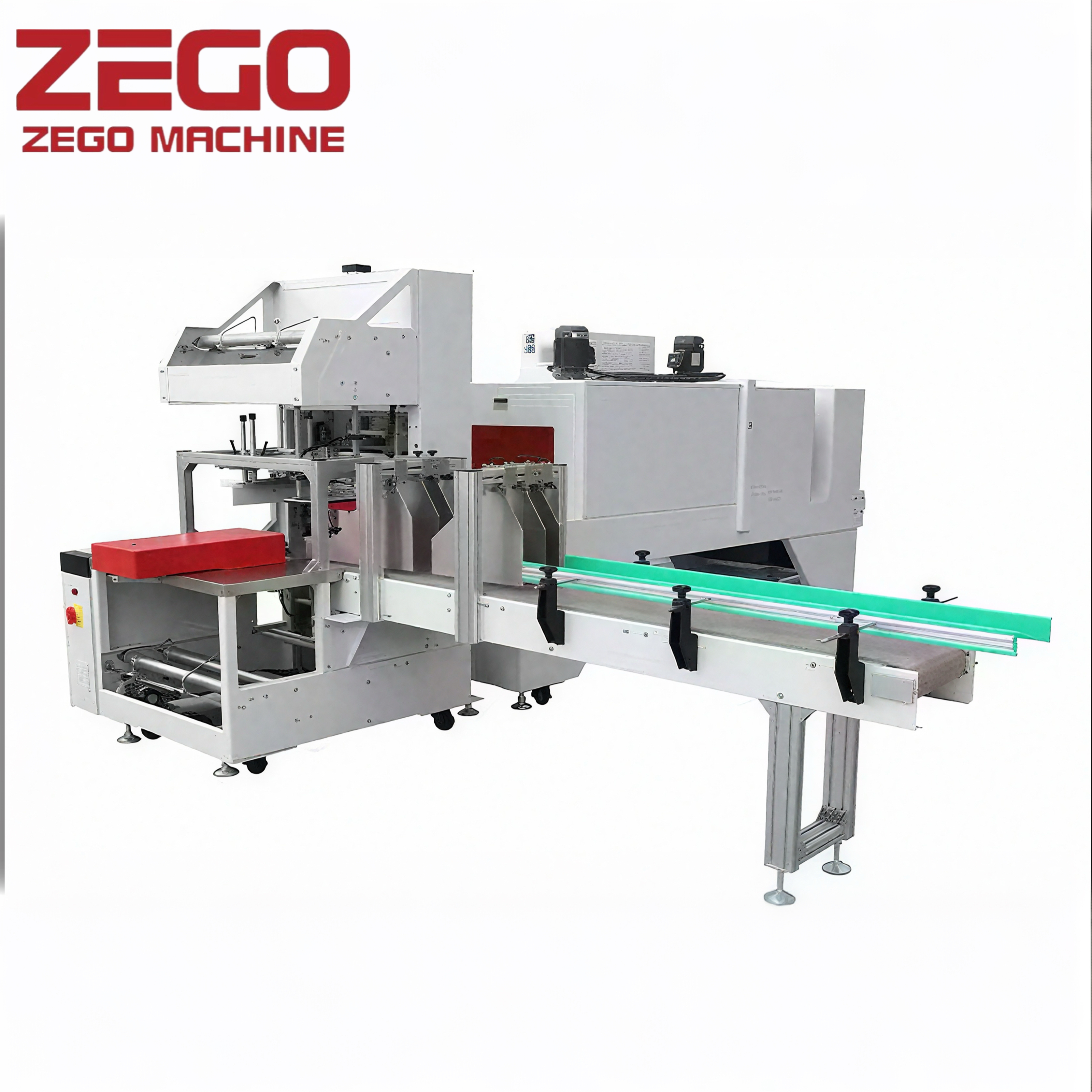

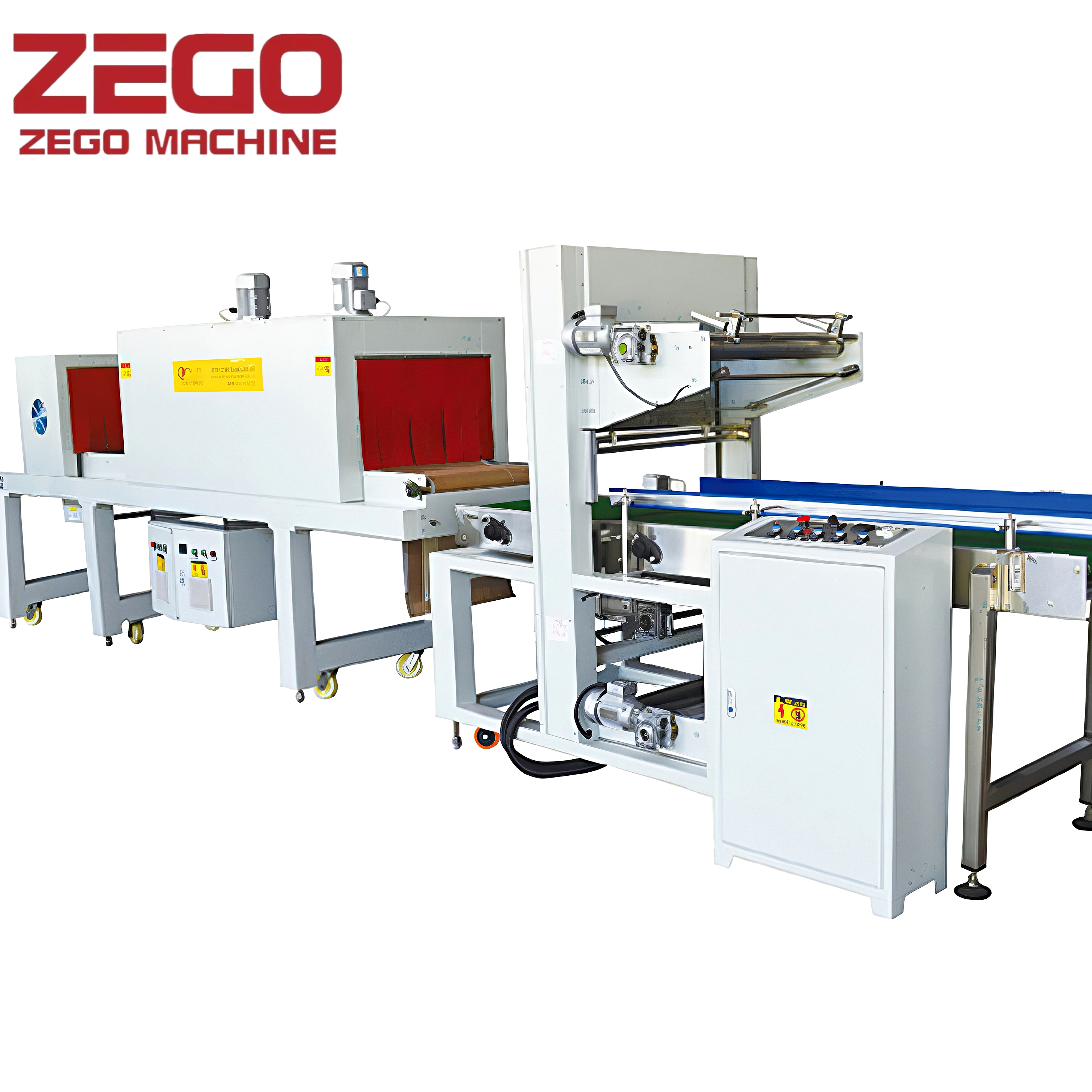

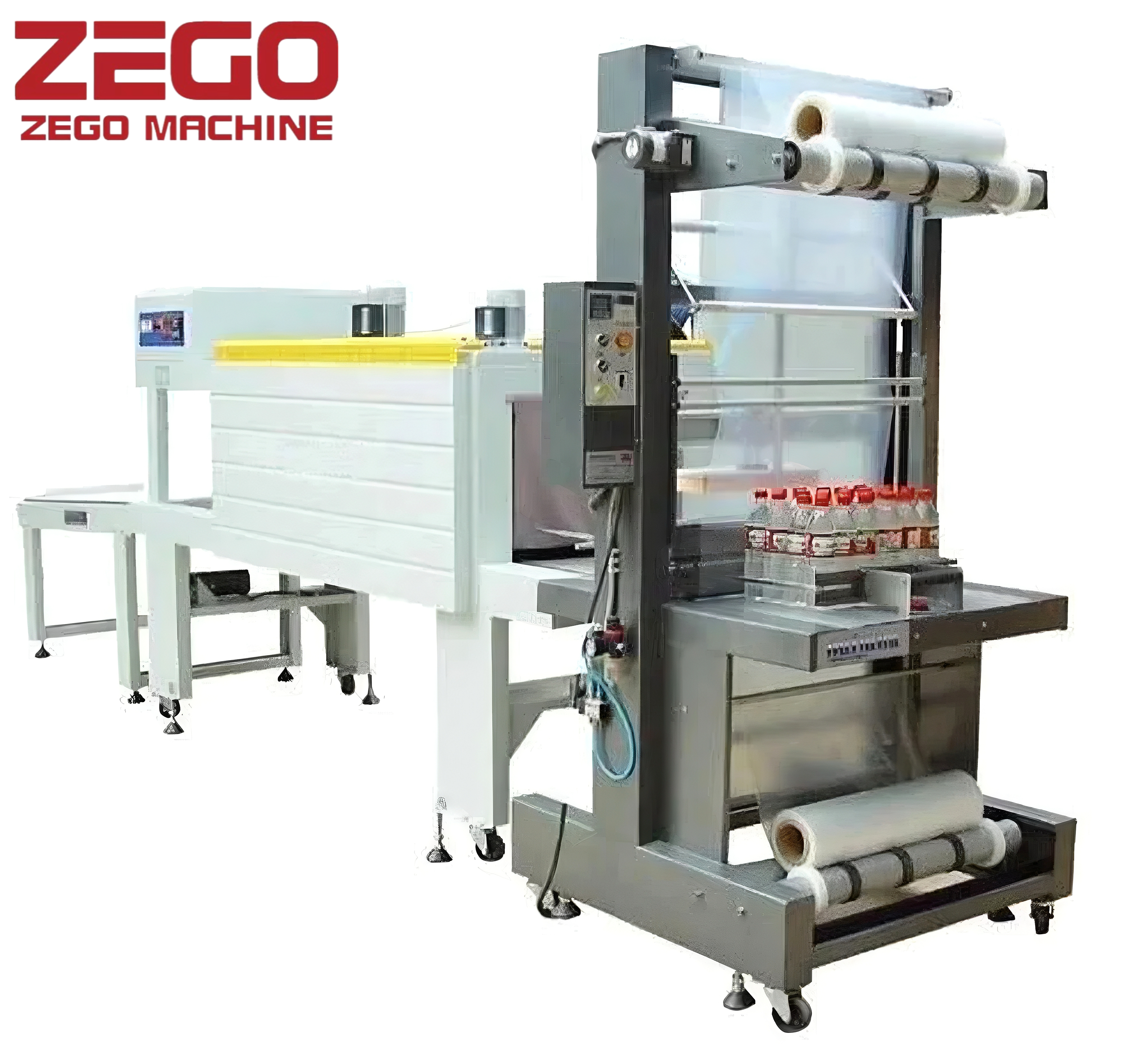

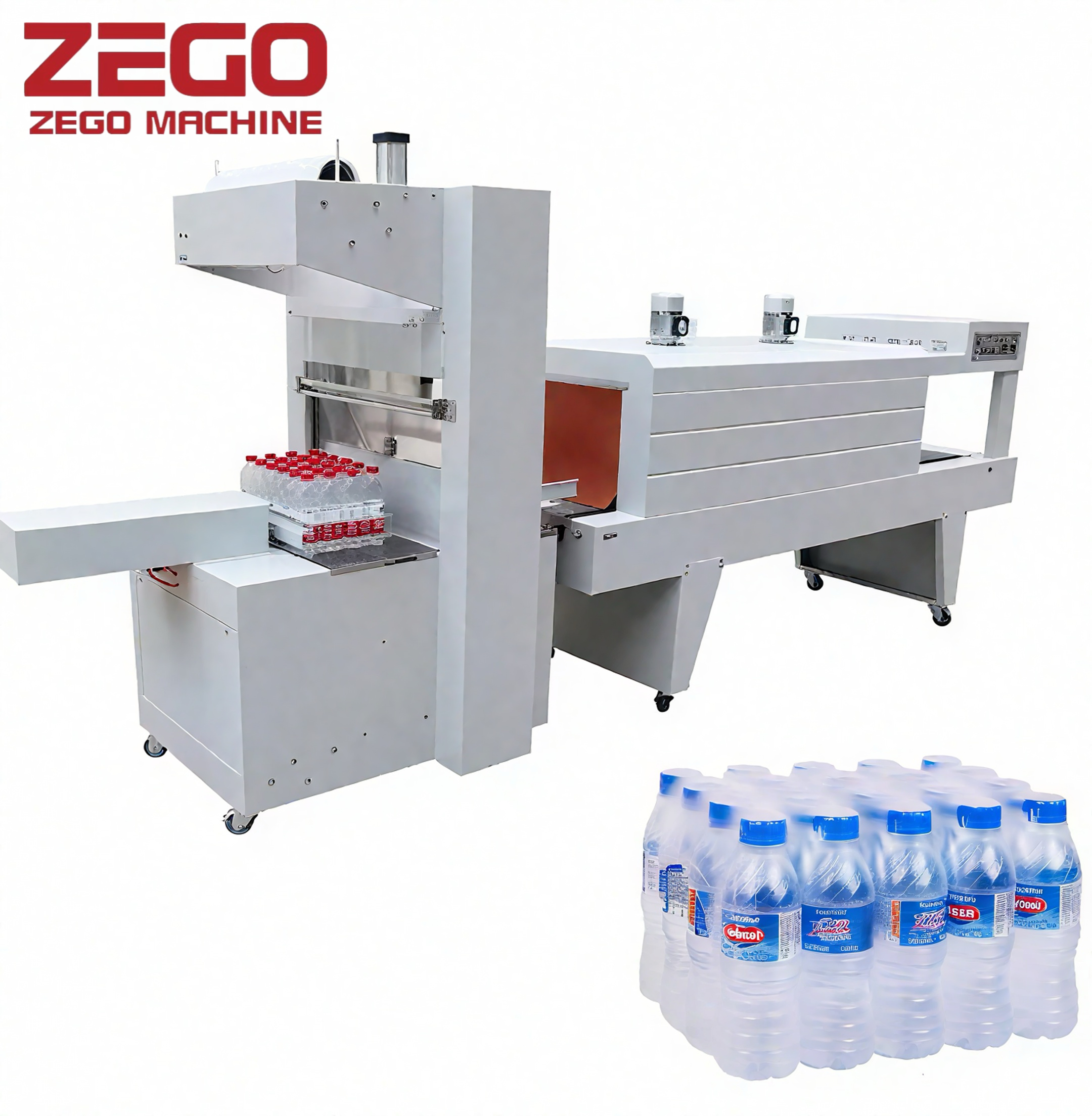

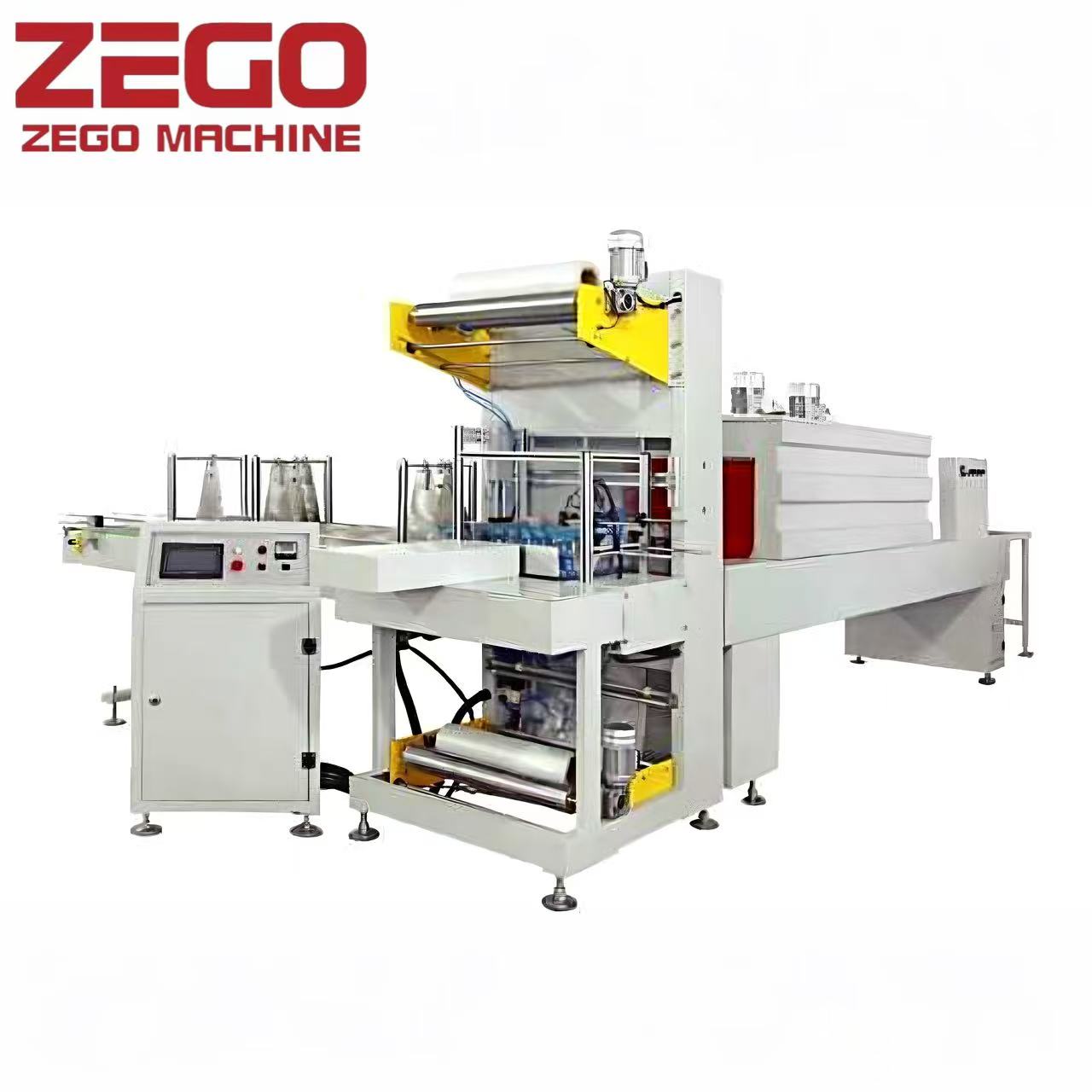

Water Beverage Oil Bottle Shrink Wrapping Production Automatic Shrink Packer Line


Availability:

Quantity:

Inquire Add to Basket

The sleeve-type film shrink wrapping machine is suitable for heat shrink packaging of cans, mineral water, beer, glass bottles, beverages and other bottles without or with a bottom tray; it can also be used in conjunction with a constant temperature PE heat shrink machine to shrink and package refractory materials, foam concrete, fireproof materials, and fireproof bricks, so that the items can achieve a perfect packaging effect.

Product Description

Feature

1. The width adjustment components of the bottle feed are all made of aluminum profiles, one bottle type has one set of the aluminum components. There is no need to correct the width of each column, and it can be directly inserted. Only one worker is required to change the bottle type, and it is very convenient and quick to replace the bottle type replacement parts.

2. The bottle feeding part is controlled by photo electricity, 3 full bottle detection, using SICK sensor, one-hand adjustment device, can easily adjust the upper and lower positions to meet the requirements of different sizes of bottles.

3. The bottle driving part pushes the bottle groups that have been divided according to the requirements to the film winding area evenly to ensure the smooth operation of the bottles. Double chains are used to drive the movement of the bottle rushing rod, which effectively improves the running stability of the bottle group.

4. The appearance is simple and beautiful, the structure is novel and unique, and the maintenance is convenient. Pneumatic expansion support film roll, electronic induction film conveying, smooth film feeding, fast and convenient film changing.

5. The whole machine adopts Siemens motion control system, which integrates motion control, logic control and process control functions, providing a complete solution for production.

6. The shrink tunnel adopts circulating air technology, reasonable structure, heat insulation, high temperature control accuracy, and better shrink packaging effect.

Capacity	5 packs/min (single course)
Applicable bottle type	Cans, glass bottles, PET bottles
Applicable bottle size	(1) Glass bottles, PET bottles, cans, etc., ranging from Ø55-110mm (2) Bottle height H80-320mm
Packaging products size	Length 210-450mm; Width 120-300mm; Height 80-330mm
Equipment size	2480×790×1480mm(LWH)
Packaging pass rate	98%
Film damage rate	≤0.1%
Equipment power	26KW
Compressed air	(a) Pressure: 0.4-0.8MPa (b) Air consumption: 100L/MIN
Equipment weight	800KG

微信图片_20250913093006_716_14

Technical Parameters Of Shrinking Machine

Heating tube

Carefully laid out heating positions for better heating effect
Powerful motor

Powerful nameplate motor durable
Adjustable air pressure

High flow adjustable air pressure.Exhaust protection cylinder.
Turbine blades evenly heated

Turbine blades evenly heat the air create strong wind force and provide good wind circulation.
Safe and efficient

The object reaches the designated position .Press down on the object steadily and orderly.
Safe and convenient

Fully functional and convenient. Focusing on quality for greater efficiency.

Complete Line

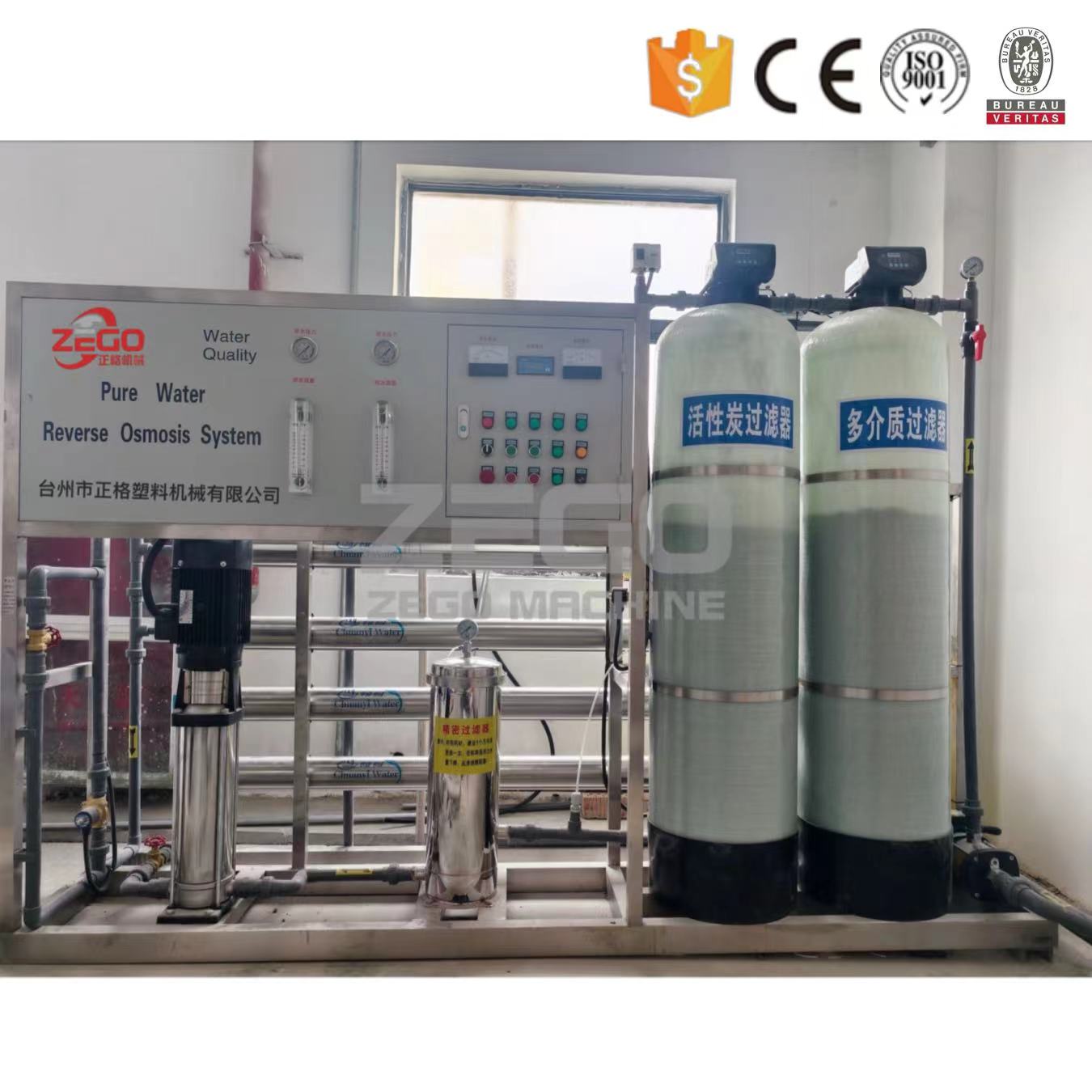

Water Treatment

We adopt different equipment to produce pure water, mineral water etc. The main equipment of RO Water Treatment Plant are silica sand filter, active carbon filter, sodium ion exchanger, hollow fiber, RO, UV sterilizer, precision filter, ozone generator, water tank etc.

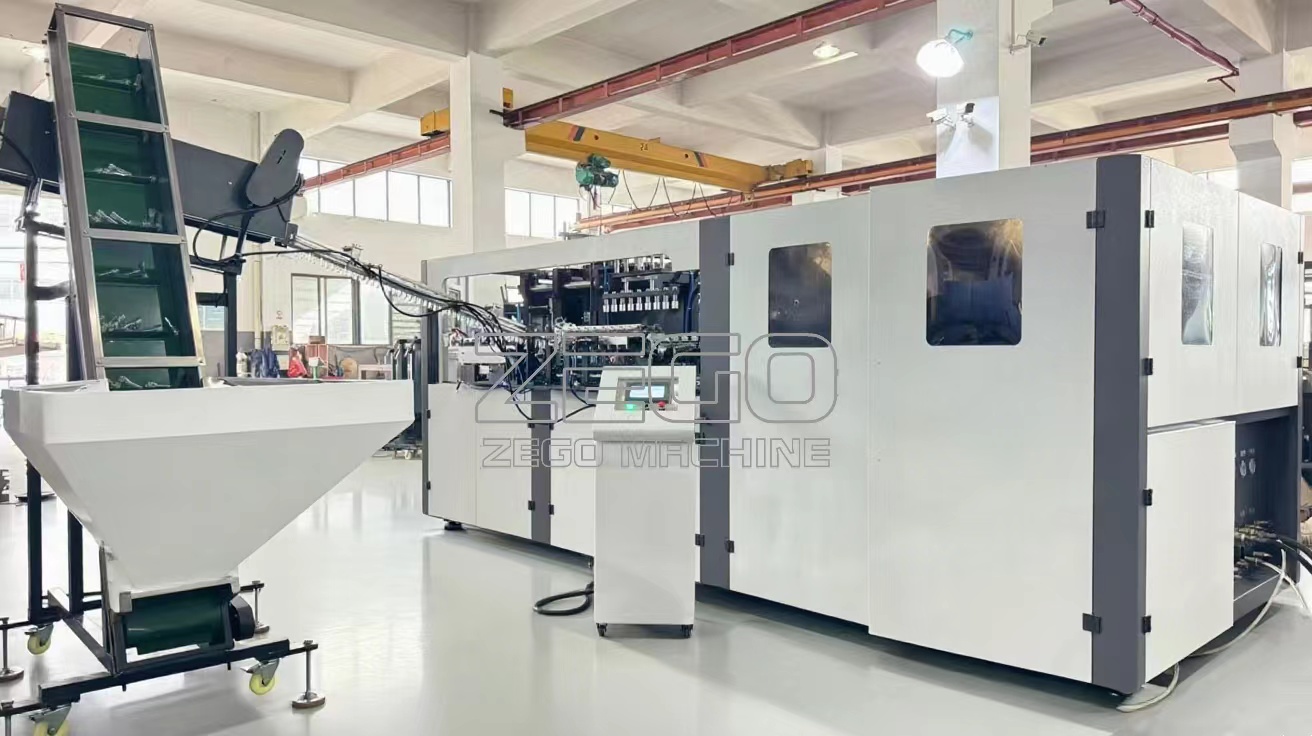

Bottle Blowing Machine

Bottle blowing machine adopts our most advanced blowing technologies. This machine is a high intelligent, stable and reliable blowing machine,with simple structure,and low energy consumption.
Filling Machine

CGF water filling machine adopts the suspension design. It allows the machine to fill different type of the bottles. It is normally used as drinking water filling machine. However, it can also be used for fill PET bottle with fruit juice and tea drinks at high temperature by simply change the accessories.
Labeling Machine

Including PVC Shrinking Labeling Machine, OPP labeling machine, Self-adhesive / Sticker labeling machine, Etc.
Widely used for different material of container and label. The label cost is comparatively lower, it can meet the requirements of those users who have diverse kinds of the containers.
Package Machine

PE film heat shrink wrapping machine is suitable for wrapping of such products as pop top, mineral water, bottles, drinks etc. Working with PE film shrink tunnel to pack the goods perfectly , the whole production process adopts the Germany advanced technics, and the main parts are imported from international famous company.
