1.Adopts a premium single-chip microcomputer control system, which ensures steady long-term operation and minimizes the risk of malfunctions.
2.The one-piece cast frame enhances the equipment's overall rigidity and anti-vibration capability, thereby securing its stable performance.
3.Fitted with infrared lamp heating (boasting high penetration), the device achieves fast, uniform, and dependable heating through rotating bottle preforms and orbital heating—both of which guarantee even heat dispersion.
4.The width/height-adjustable baffles inside the heating tube work with multiple types of bottle preforms. Additionally, the integrated automatic exhaust function helps sustain consistent heating conditions.
5.Each mechanical motion is outfitted with a safety self-locking mechanism. If a process error occurs, the system will automatically shift to a safe operating mode.

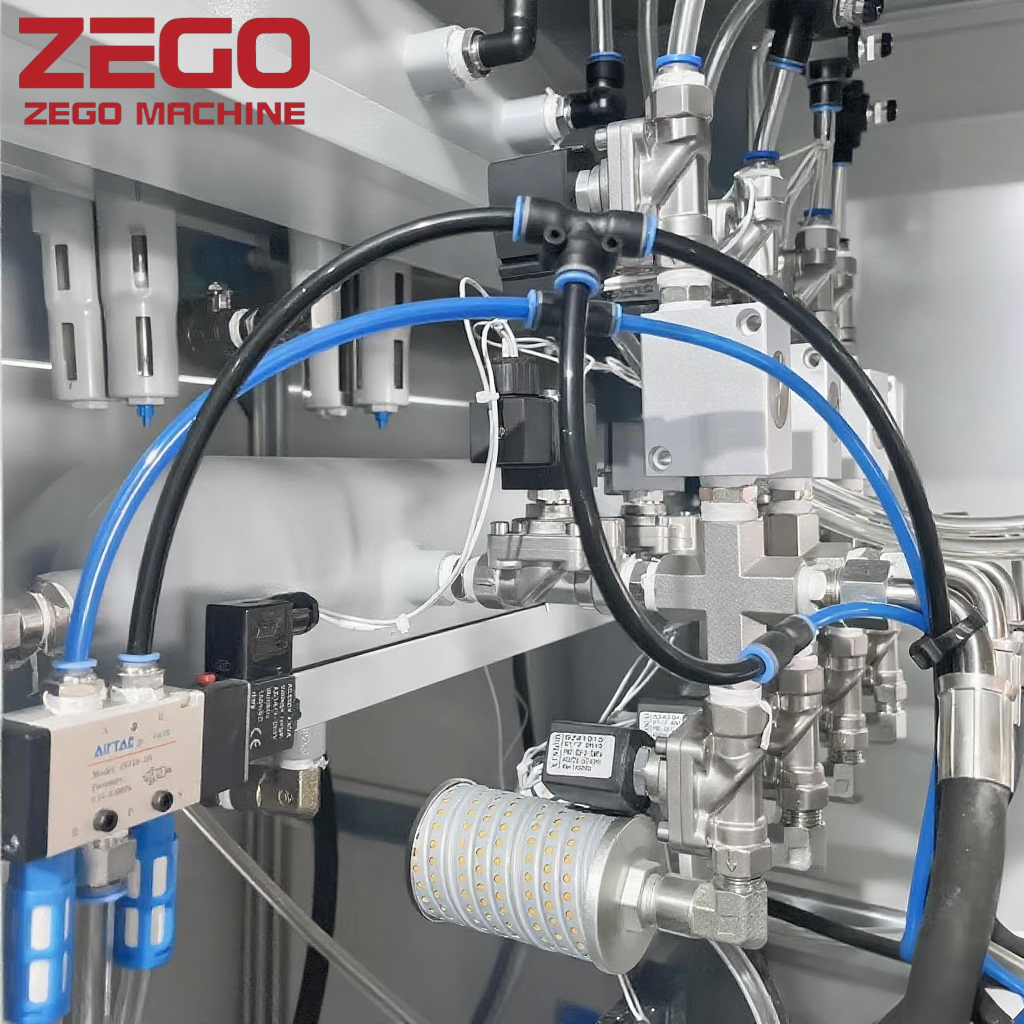

6.The cylinder-driven operation (no oil pump required) enables pollution-free operation and keeps the equipment's running noise at a low level.
| ZG2000A | ||
| Container | Clamping Force(KN) | 90 |
| Clamping Stroke(MM) | 190 | |
| Stretching Stroke(MM) | 370 | |
| Cavity | 4 | |
| Capacity(BPH) | 1800-2200 | |
| Max.Bottle Volume(LTR) | 2 | |
| Max.Neck Diameter(MM) | 38 | |
| Max.Bottle Diameter(MM) | 100 | |
| Max.Height(MM) | 350 | |
| Electric Sydstem | Total Power(KW) | 11 |
| Heating Power(KW) | 8 | |
| Machine Specification | Blower size(MM) | 1780×670×1600 |
| Blower weight(MM) | 800 | |
| Heater size(MM) | 2170×670×1600 | |
| Heater weight(MM) | 400 |
