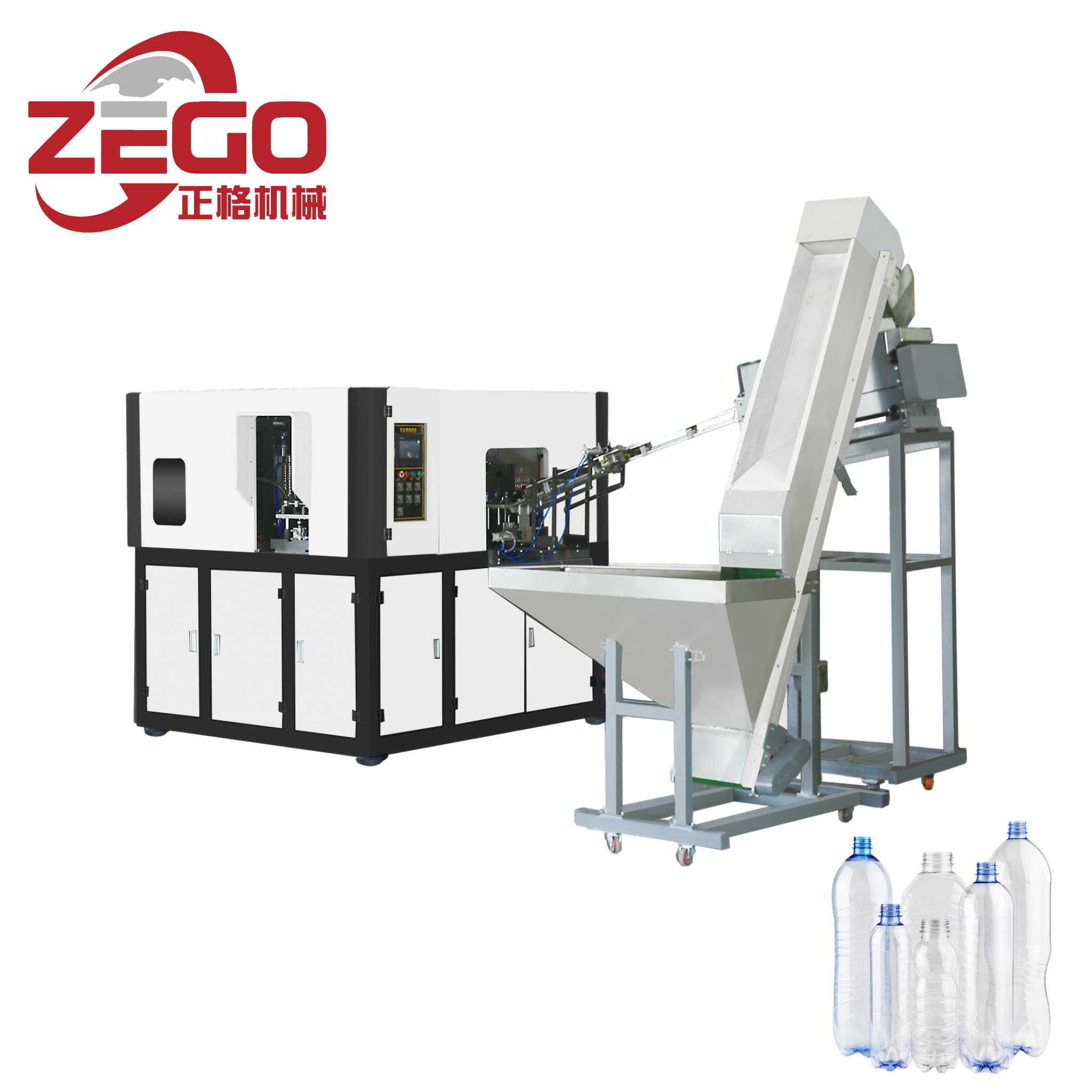

Fully Automatic l50ml-2000m 1Liter Plants PET Beverages Juice Water Bottle Plastic Bottle Making Machine

A Variable Pitch PET bottle blower is a high-speed, automated linear stretch-mold system whose preform feed is regulated by altering the gap between gripper and mold. By continuously adjusting this spacing, the machine can switch rapidly among different bottle formats—from small water bottles to large containers—cutting clamp time and raising overall output.

Specification

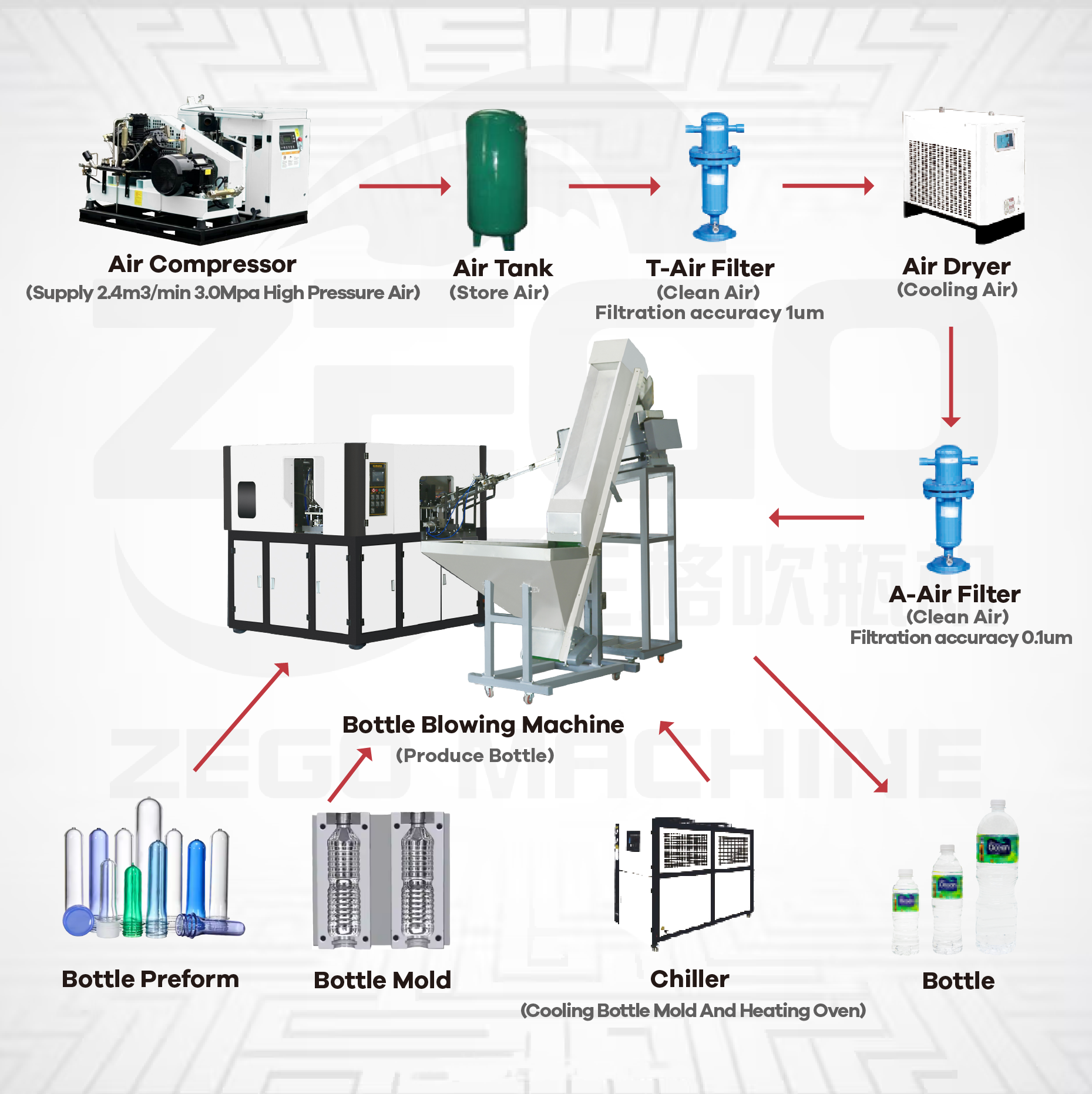

• Air Compressor : Compress air,used for blowing bottle and blower action. ( Pressure 3.0 Mpa )

• Air Tank : Store high pressure air.

• Air Filter : Including 1 set T-class filter (1um) and 1 set A-class filter (0.01um). Cleaning oil and dust.

• Air Dryer : Cooling and dry air,improve bottle quality,prolong phnuematic parts life.

• Chiller : Cooling mould,make the machine suitable to working 24 hour per day.



ZG2000

ZG4000

ZG6000

ZG9000

Machine Details

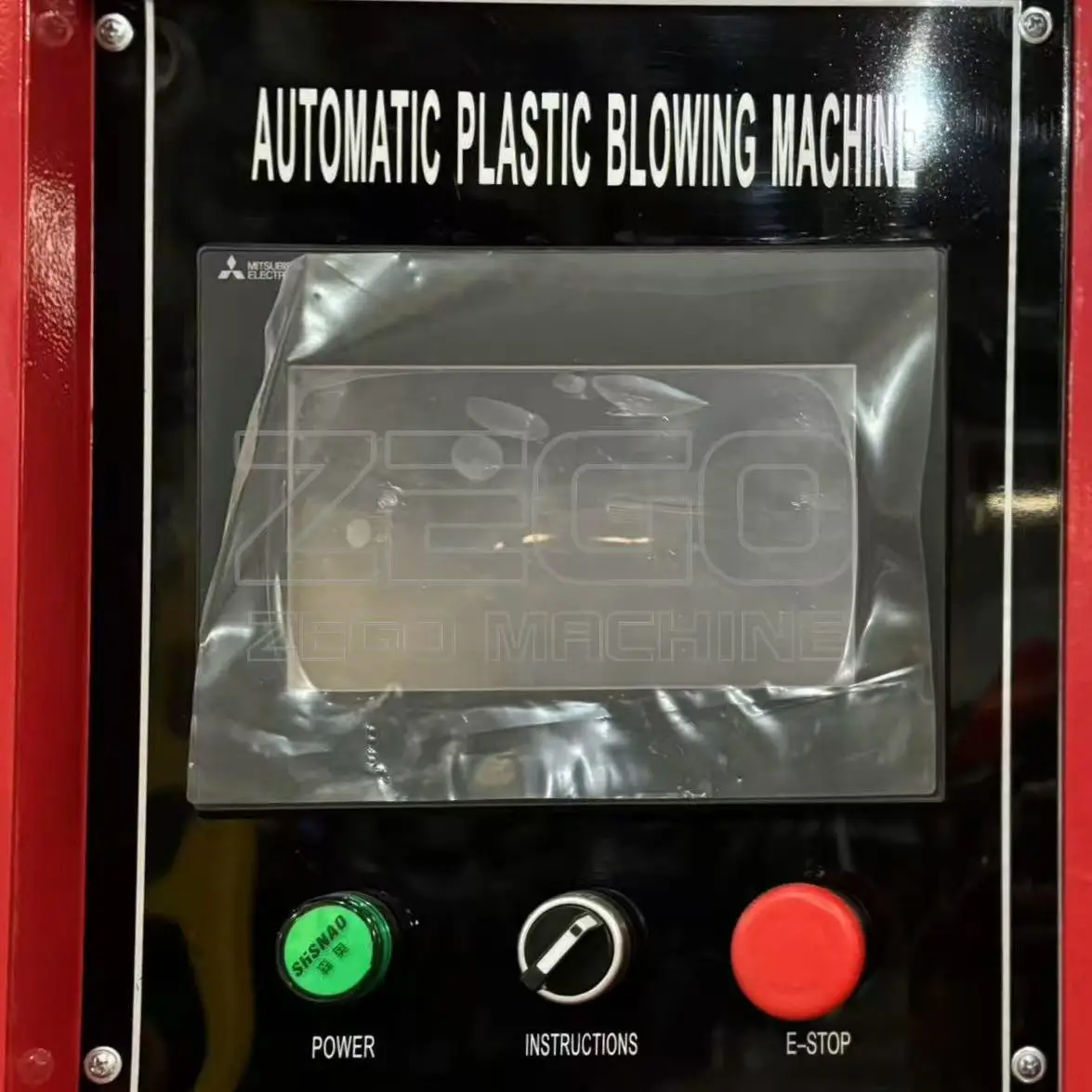

PLC

*Easy operation and monitoring through human - machine interface.

*Daily automatic recording of production data and live
supervision of production information.

*Failure warning and troubleshooting.

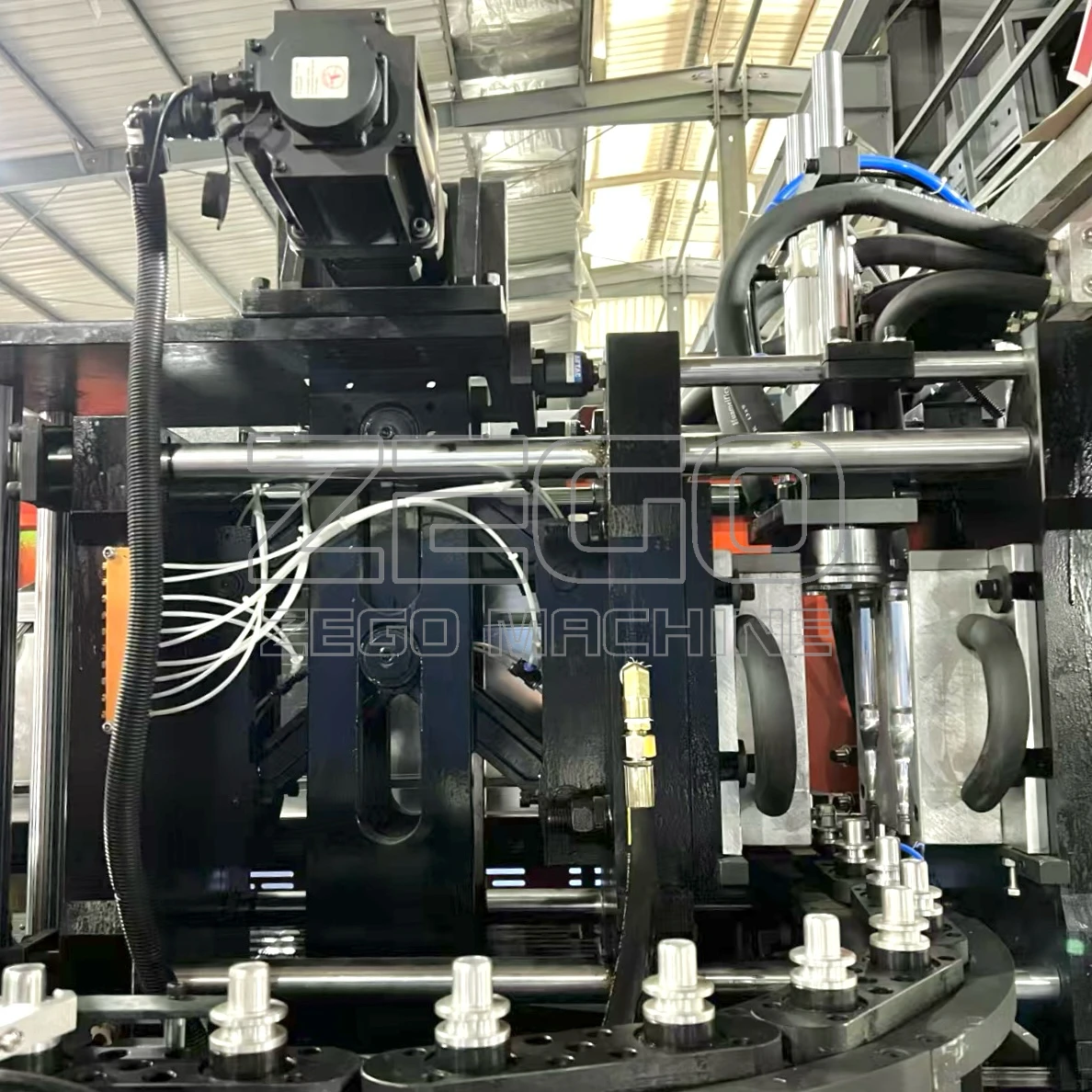

Clamping System

*Servo motor drives two cranks to control clamping.
*Reduces mold-clamping time, boosting productivity.
*Pressurize plate prevents swelling molds and minimizes joint line issues.

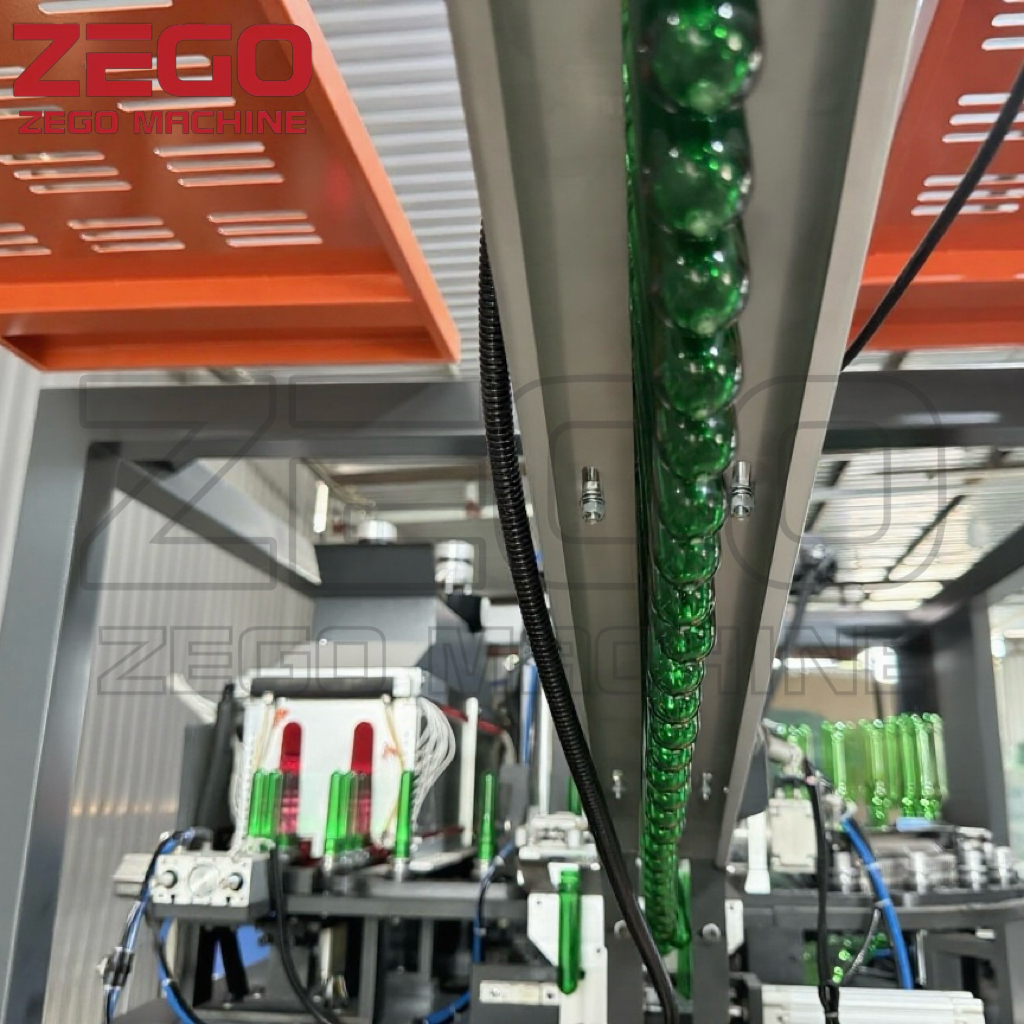

Auto Preform Unscrambler System

*One-way preform-feeding with servo motor prevents blockage and abrasion.
*Dual photoelectric sensors control feeding and separation.
*Sensors alert operator to add preforms, avoiding machine stops.

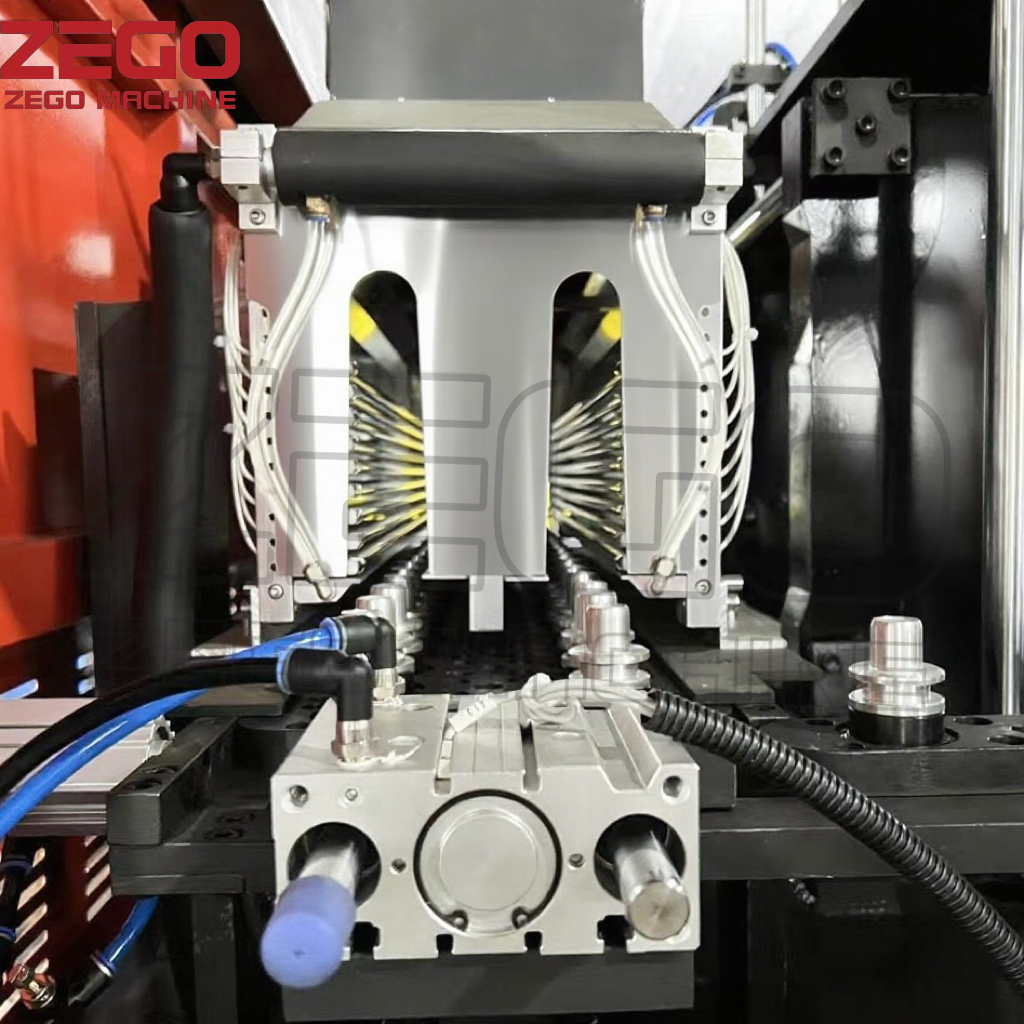

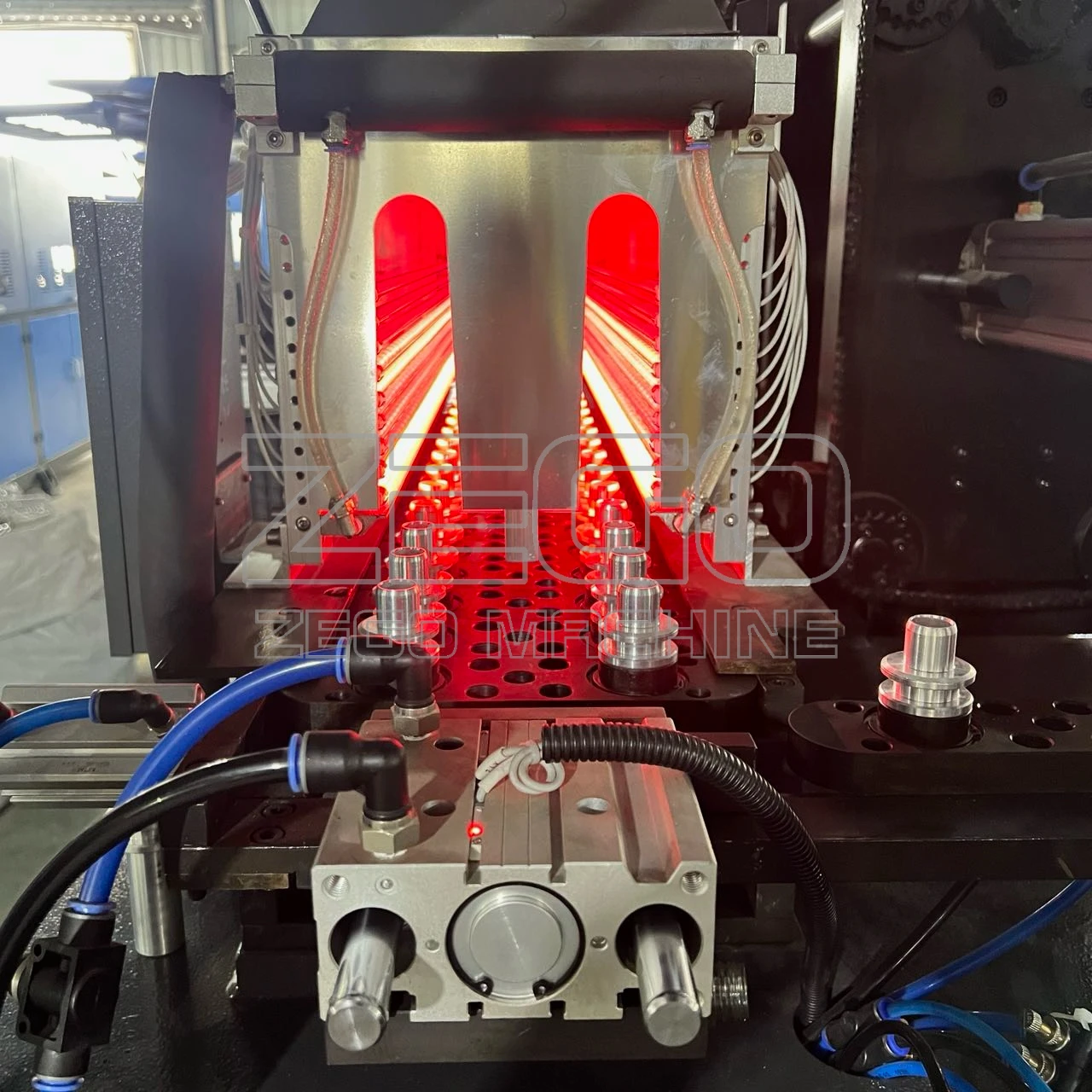

Heating System

*Perfect heating system design reduces power consumption.
*Special oven design saves energy and simplifies maintenance.
*Adjustable lamp positions and temperatures, with a cycle air-cooling system to maintain constanterature.

Easy Operate To Change Bottle Mold

*Drawer-type mold structure design.
*Easy mold change within one hour.
*Same bottle neck diameter required.

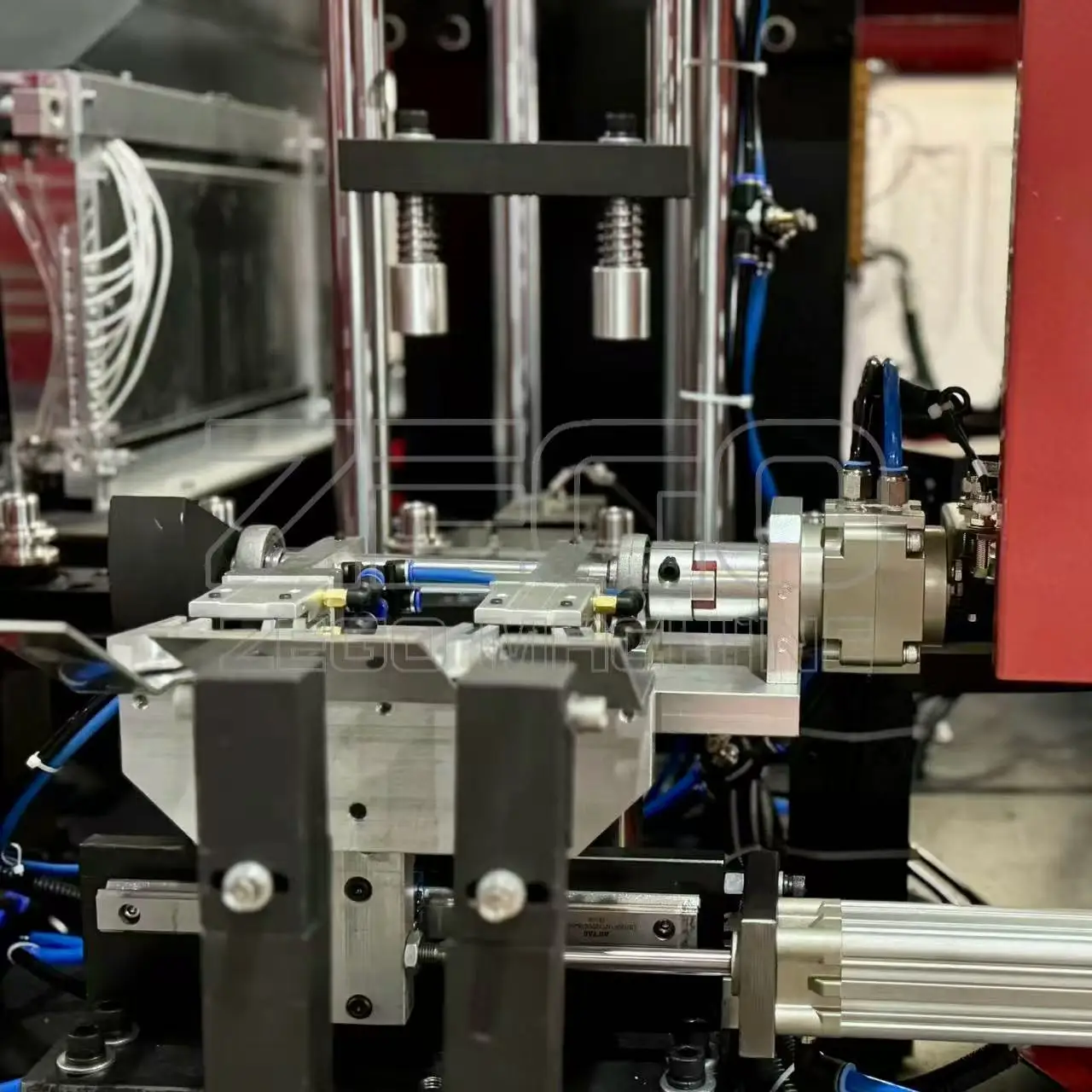

Stretching Servo System

*Servo-driven tie rod for precise control.
*Fast adjustment of blowing and sealing devices.
*Safe operation on the control table.
