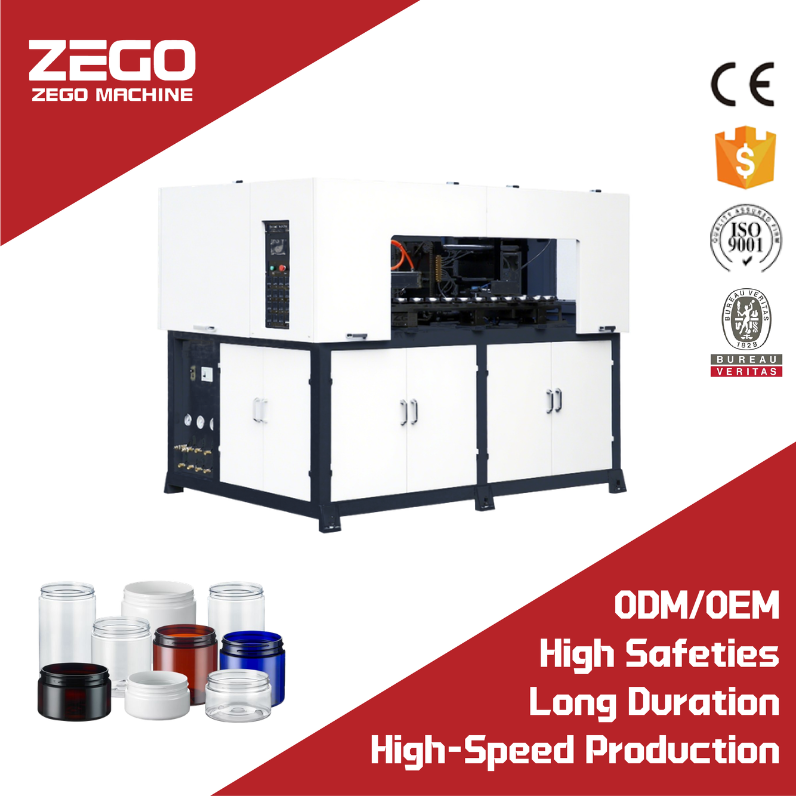

Best Prices Linear Type 2 Cavity Jar Wide Mouth Automatic Bottle Blow Machine Machine Making Bottle Jar Low Cost Factory Price


Availability:

Quantity:

Inquire Add to Basket

Model:
ZG-2000D
Brand:
ZEGO

Production Capacity: 1500BPH(500ml)
Control mode: Fully-auto PLc control
Container: PET bottle 0.1liter-5liter
Your product: Water and csD, Beer, Milk and dairy products, Oil and vinegar,Household & automotive

Advantage：
1.The machine use continuous rotation system with multiple safety protection devices to ensure the high speed preform feeding.
2.The preform feeding without turning device,simple structure,convenient maintance, reduce cost of spare part change.
3.The heating pitch between the preforms is small,effectively using the heating space of the lamp tube,and improving the heating efficiency enery saving by variable pitch structure.
4.The water runs directly through the heating channel with air cooling system to protect preform neck from deformation.
5.Optimize oven air draft and preform surface cooling.Reversible heating box make it more easy to change lamp.
6.Mould closing adopts CAM linkage,no chain plate pin shaft small size, long service life.
7.The stepping servo motor ensure high-speed operation and accurate positioning.
8.Servo moto is used to drive the stretching and blowing station,equipped with high speed precision blowing valve set to achieve high production requirements.
9.Stainless steel pipe make the air blowing more clean without pollution.
10.High pressure recycle system reduce power consumption.
11.Multiple direction positioned for the autoloader make it more flexibly for installation.
12.The machine is desighed to be compact in size.effectively reducing floor space.

Product Specifications

TAIZHOU ZEGO MACHINE CO., LTD., established in 2005, is a leading manufacturer of PET bottle blow molding packaging solutions. We provide end-to-end PET bottle solutions—from injection, blowing, filling, labeling, to packing—for industries such as water, juice, oil, detergents, cosmetics, and pharmaceuticals. Customizable with 1 to 12 cavities,produce 5ml to 50L PET bottles ,with output rates from 100 to 24,000 bottles per hour.

We maintain the “INNOVATIVE VALUE, DELICATE PRODUCTS, and PROMPTSERVICE” spirit. Our slogan is “SHAPE BOTTLES, SHAPE INDUSTRY POWER!” Our ultra-long quality assurance, remote training, competitive pricing, and reliable service have earned the trust of global clients, many of whom return for repeat purchases.

		ZG2000SG
Container	Clamping Force(KN)	200
	Clamping Stroke(MM)	125
	Stretching Stroke(MM)	450
	Cavity	2
	Capacity(BPH)	1800-2200
	Max.Bottle Volume(LTR)	2
	Max.Neck Diameter(MM)	110
	Max.Bottle Diameter(MM)	110
	Max.Height(MM)	300
Electric System	Total Power(KW)	26
Electric System	Heating Power(KW)	24
Machine Specification	Blower size(MM)	1950×1850×2100
	Blower weight(MM)	1950
	Heater size(MM)	2150×1450×2450
	Heater weight(MM)	450

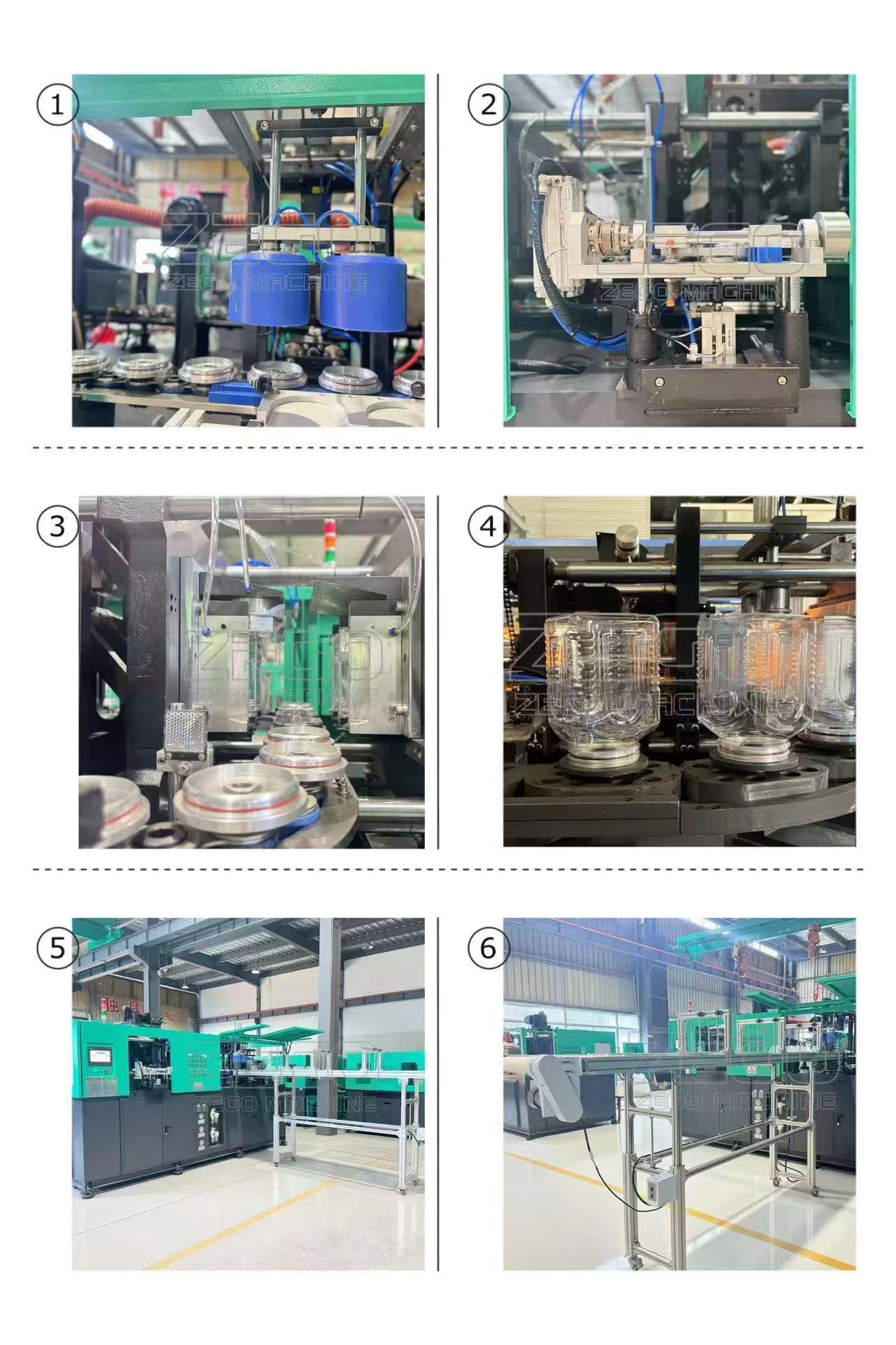

Product Description

H1db8343e36f048adabf5a2b14811459dT

H0f2721a10af34d69b0e53135c7c512e2k

H4838b9b135204763b3e47ccaf60d87784

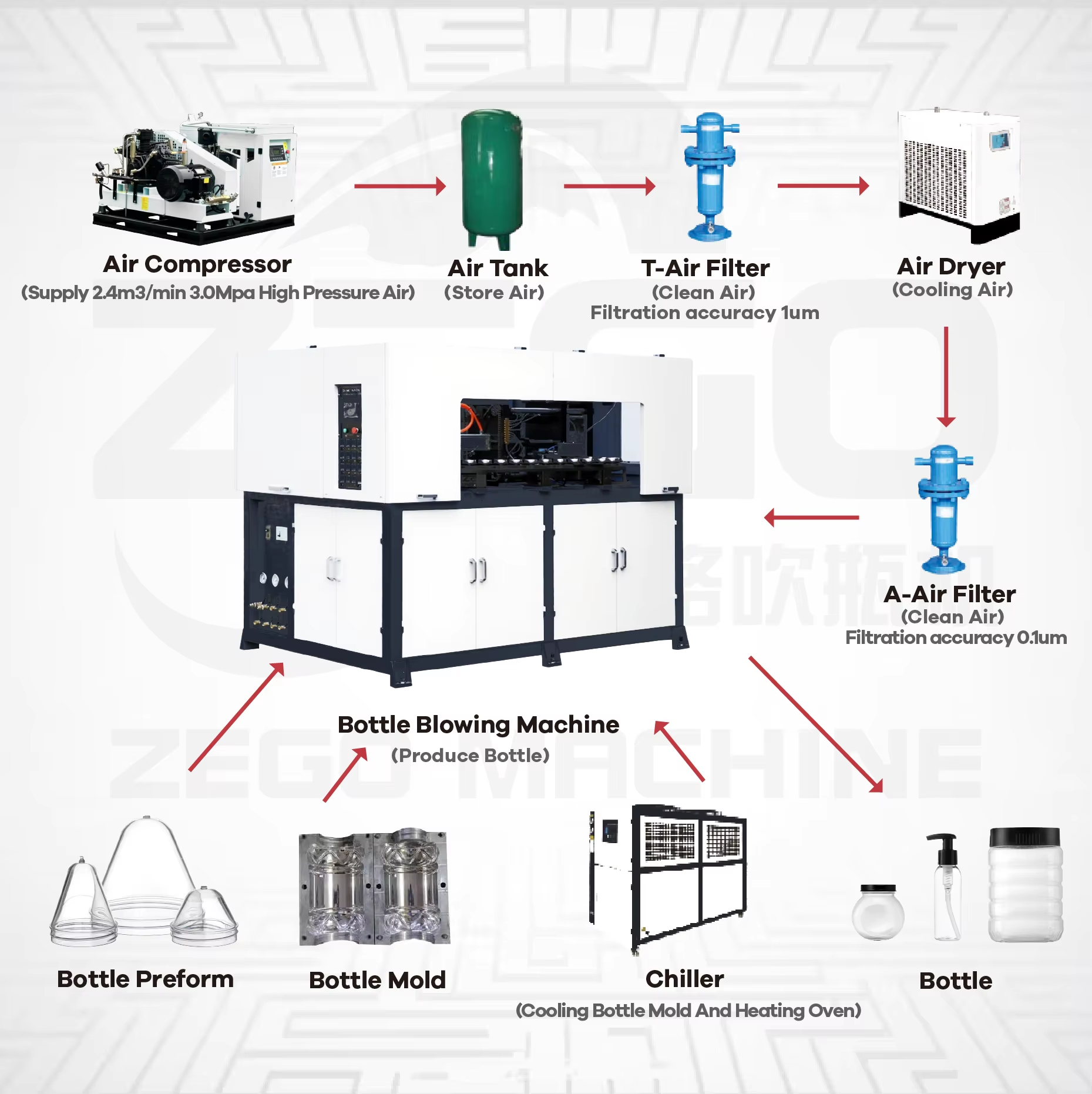

Air Compressor : Compress air,used for blowing bottle and blower action. ( Pressure 3.0 Mpa )

Air Tank : Store high pressure air.
Air Filter : Including 1 set T-class filter (1um) and 1 set A-class filter (0.01um). Cleaning oil and dust. Air Dryer : Cooling and dry air,improve bottle quality,prolong phnuematic parts life.
 Chiller : Cooling mould,make the machine suitable to working 24 hour per day.
