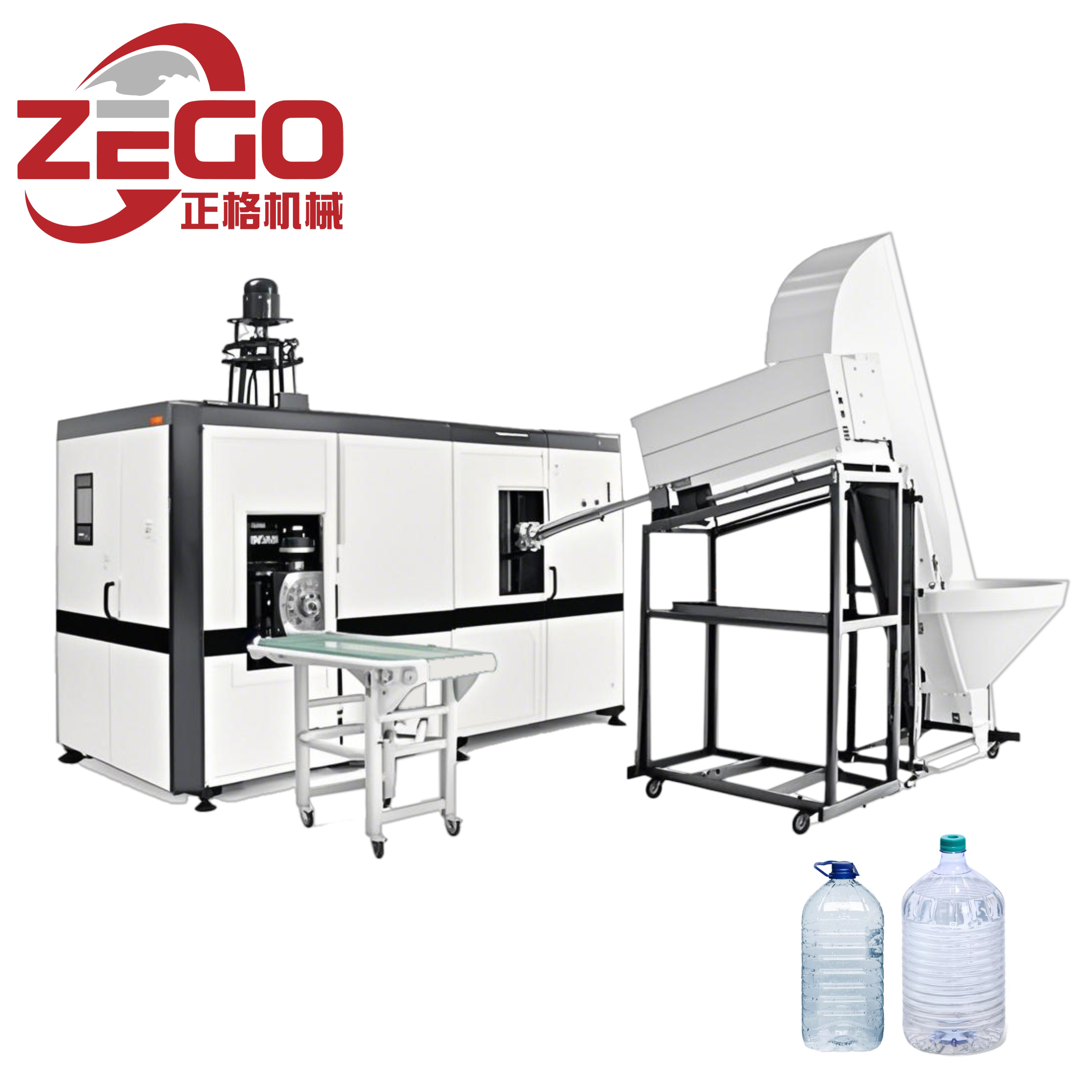

5L PET Cooking Oil Water Bottle Blow Molding Machine Fully Automatic Plastic Oil Bottle Making Machine with High Speed

5L PET Cooking Oil Water Bottle Blow Molding Machine Fully Automatic Plastic Oil Bottle Making Machine with High Speed


Availability:

Quantity:

Inquire Add to Basket

Model:
ZG5L-2
Brand:
ZEGO

Production Capacity: 1600BPH(5Liter)
Control mode: Fully-auto PLc control

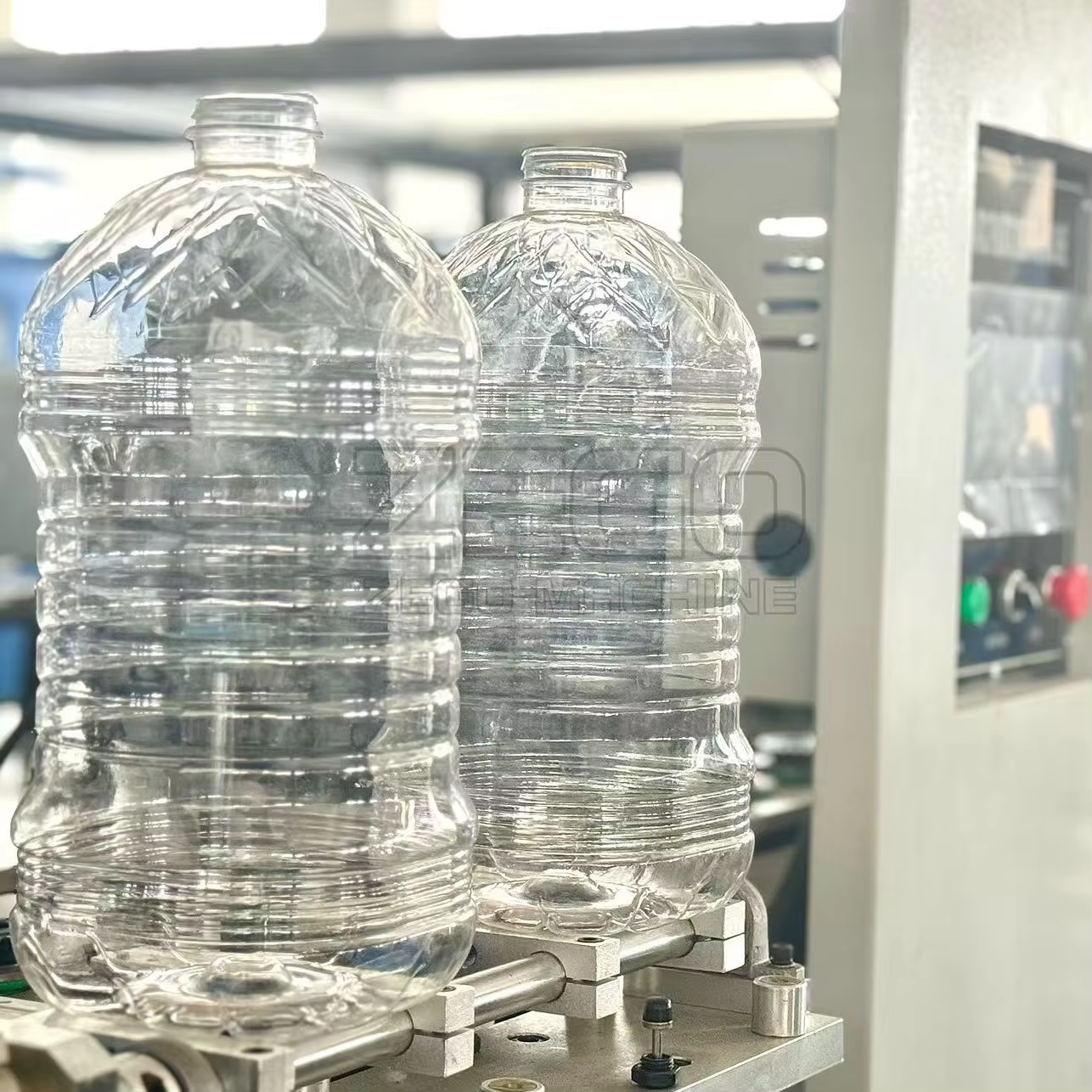

Container: PET bottle 0.1liter-5liter
Your product: Water and csD, Beer, Milk and dairy products, Oil and vinegar,Household & automotive

Advantage:
1). Stable performance with advanced PLC.
2). Automatic preform conveyer to save human cost.
3). Preform self-rotation and infrared pre-heater revolution assure the even distribution of heat, which improve the bottle shaping rate, increase the production.
4). High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity invariable.
5). High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect safe environment, in case of the breakdown in certain procedure.
6). Introduce the FESTO air cylinder to avoid contamination and noise.
7). Satisfaction with different atmosphShirley pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
8). Strong clamping force with high pressure and double crank links to lock the mould.
9). Two ways of operating: automatic and manual.
10). Safe,reliable and unique design of the position of valve to make the pneumatic diagram in the machine easier to understand.
11). Low cost,high efficiency,easy operation and maintenance etc, profited from the fully automatic technological process.
12). Ideal cooling system make the finished bottles without any flaws.

Product Description

H2765308746464e7bb1f51888fbb817eae H6ed7f763c58649179e8df1dc8fc0c423q

A Variable Pitch PET bottle blower is a high-speed, automated linear stretch-mold system whose preform feed is regulated by altering the gap between gripper and mold. By continuously adjusting this spacing, the machine can switch rapidly among different bottle formats—from small water bottles to large containers—cutting clamp time and raising overall output.

Specification

Air Compressor : Compress air,used for blowing bottle and blower action. ( Pressure 3.0 Mpa )
Air Tank : Store high pressure air.
Air Filter : Including 1 set T-class filter (1um) and 1 set A-class filter (0.01um). Cleaning oil and dust.
Air Dryer : Cooling and dry air,improve bottle quality,prolong phnuematic parts life.
Chiller : Cooling mould,make the machine suitable to working 24 hour per day.

ZG2000

ZG4000

photobank (1) ZG6000

ZG9000

Product Feature

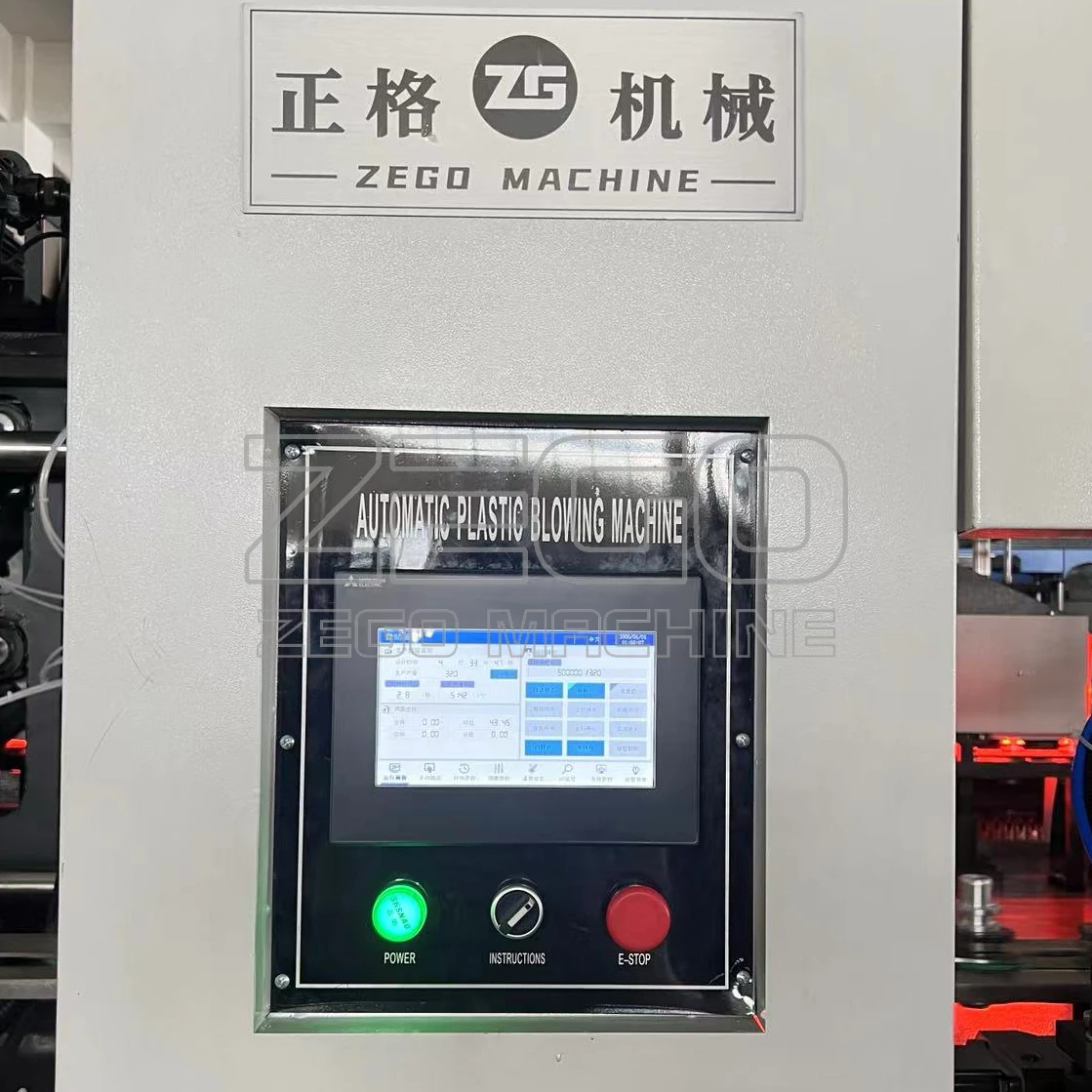

PLC

*Easy operation and monitoring through human - machine interface.

*Daily automatic recording of production data and live
supervision of production information.

*Failure warning and troubleshooting.

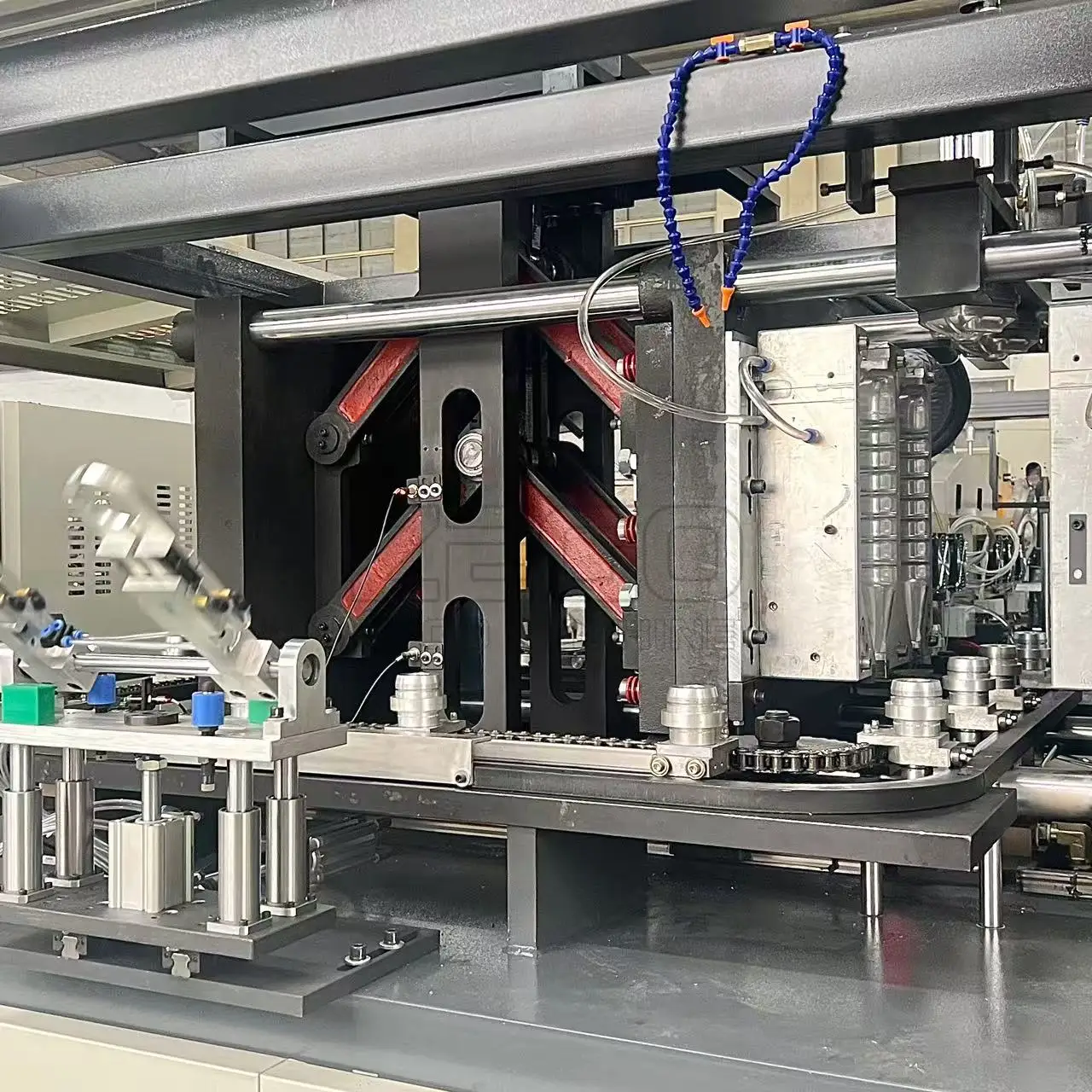

Clamping System

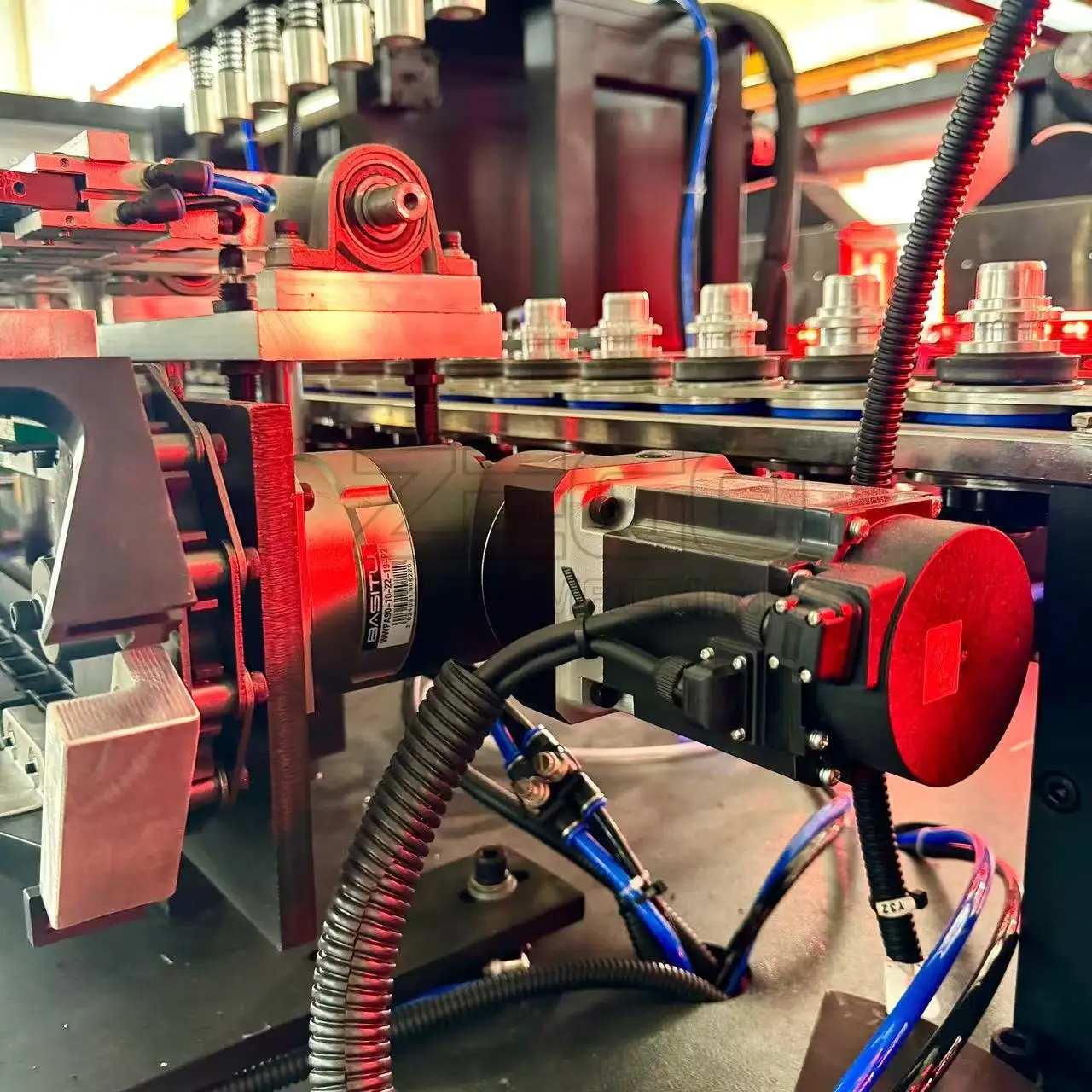

*Servo motor drives two cranks to control clamping.
*Reduces mold-clamping time, boosting productivity.
*Pressurize plate prevents swelling molds and minimizes joint line issues.

Auto Preform Unscrambler System

*One-way preform-feeding with servo motor prevents blockage and abrasion.Dual photoelectric sensors control feeding and separation.Sensors alert operator to add preforms, avoiding machine stops.

Heating System

*Perfect heating system design reduce power consumption. Special oven design save energy and simplifies maintance. Adjustable lamp positions and temperatures, with a cycle air-cooling system to maintain constanterure.

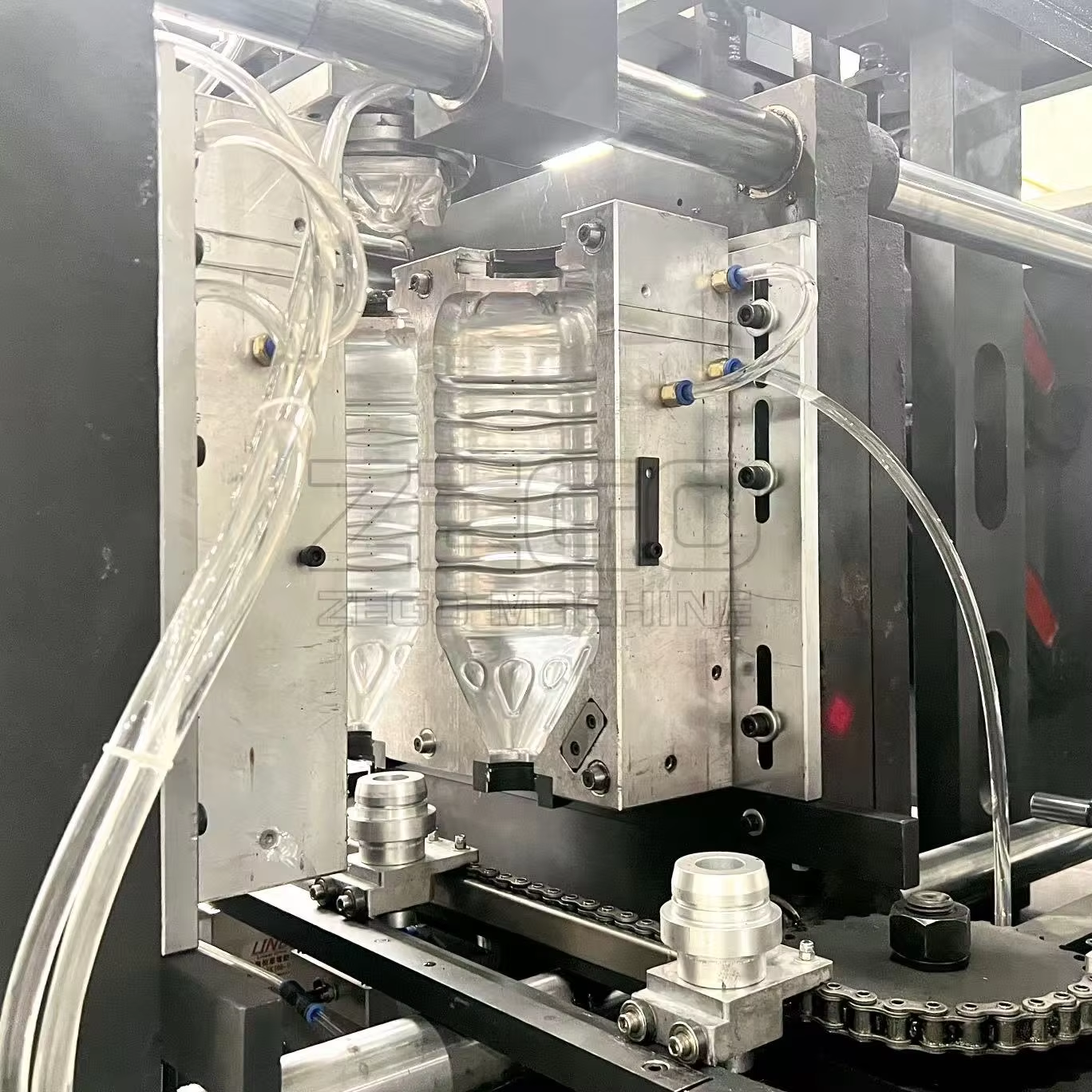

Easy Operate To Change Bottle Mold

*Drawer-type mold structure design.
*Easy mold change within one hour.
*Same bottle neck diameter required.

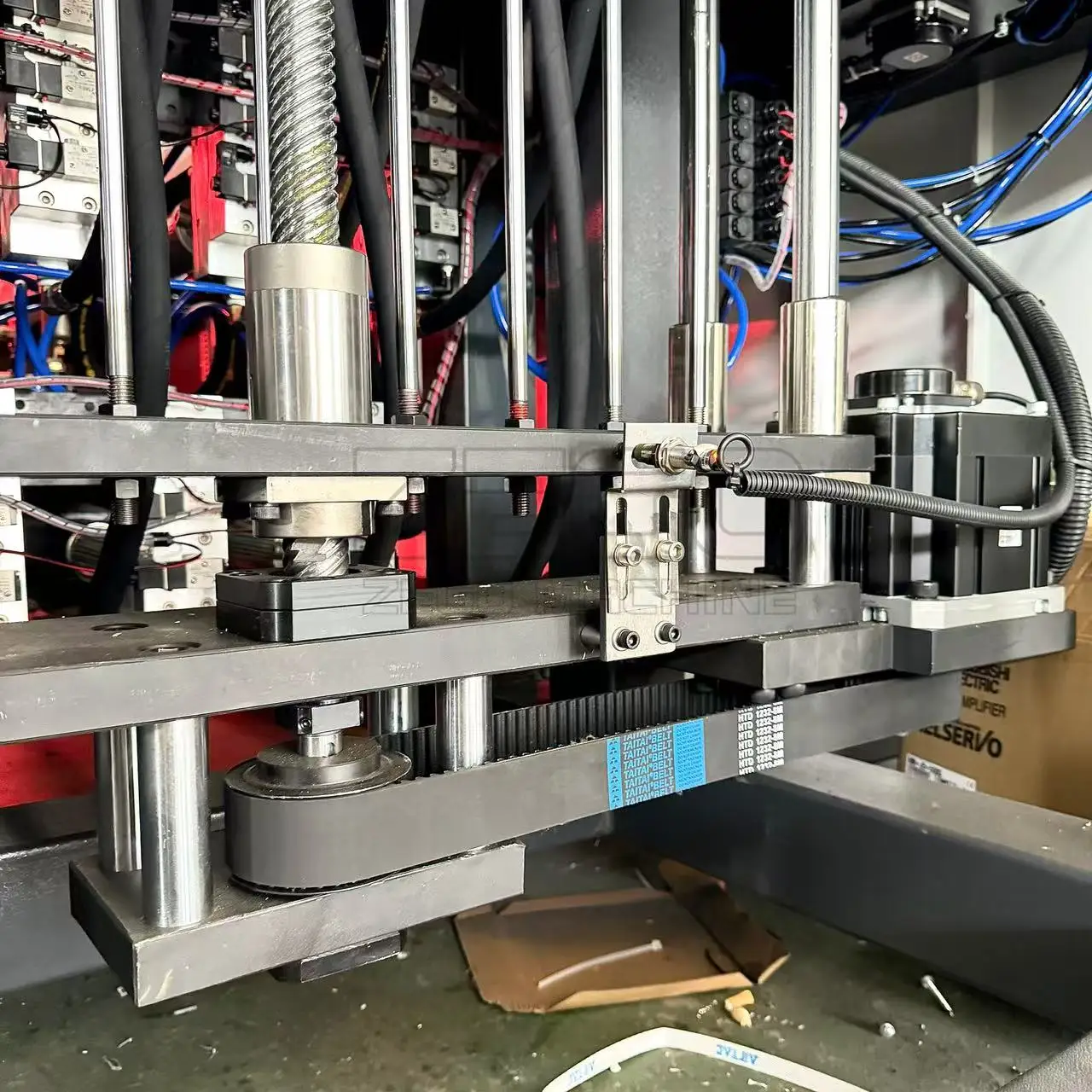

Stretching Servo System

*Servo-driven tie rod for precise control.
*Fast adjustment of blowing and sealing devices.
*Safe operation on the control table.

About Company

H199773d61a3b4da28c2e381cde9b34afS TAIZHOU ZEGO MACHINE CO., LTD., established in 2005, is a leading manufacturer of PET bottle blow molding packaging solutions. We provide end-to-end PET bottle solutions—from injection, blowing, filling, labeling, to packing—for industries such as water, juice, oil, detergents, cosmetics, and pharmaceuticals. Customizable with 1 to 12 cavities, produce 5ml to 50L PET bottles ,with output rates from 100 to 24,000 bottles per hour.

We maintain the “INNOVATIVE VALUE, DELICATE PRODUCTS, and PROMPTSERVICE” spirit. Our slogan is “SHAPE BOTTLES, SHAPE INDUSTRY POWER!” Our ultra-long quality assurance, remote training, competitive pricing, and reliable service have earned the trust of global clients, many of whom return for repeat purchases.
