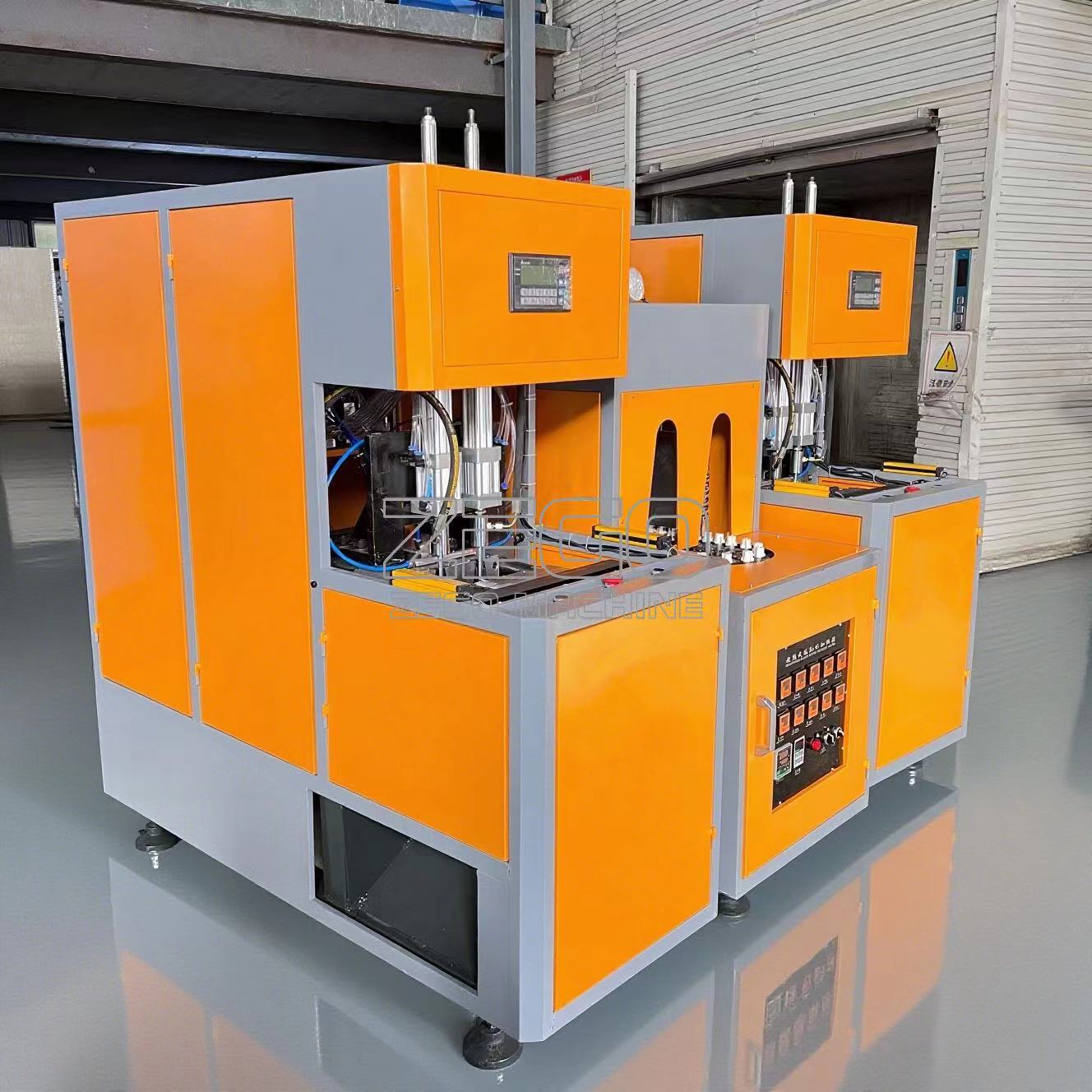

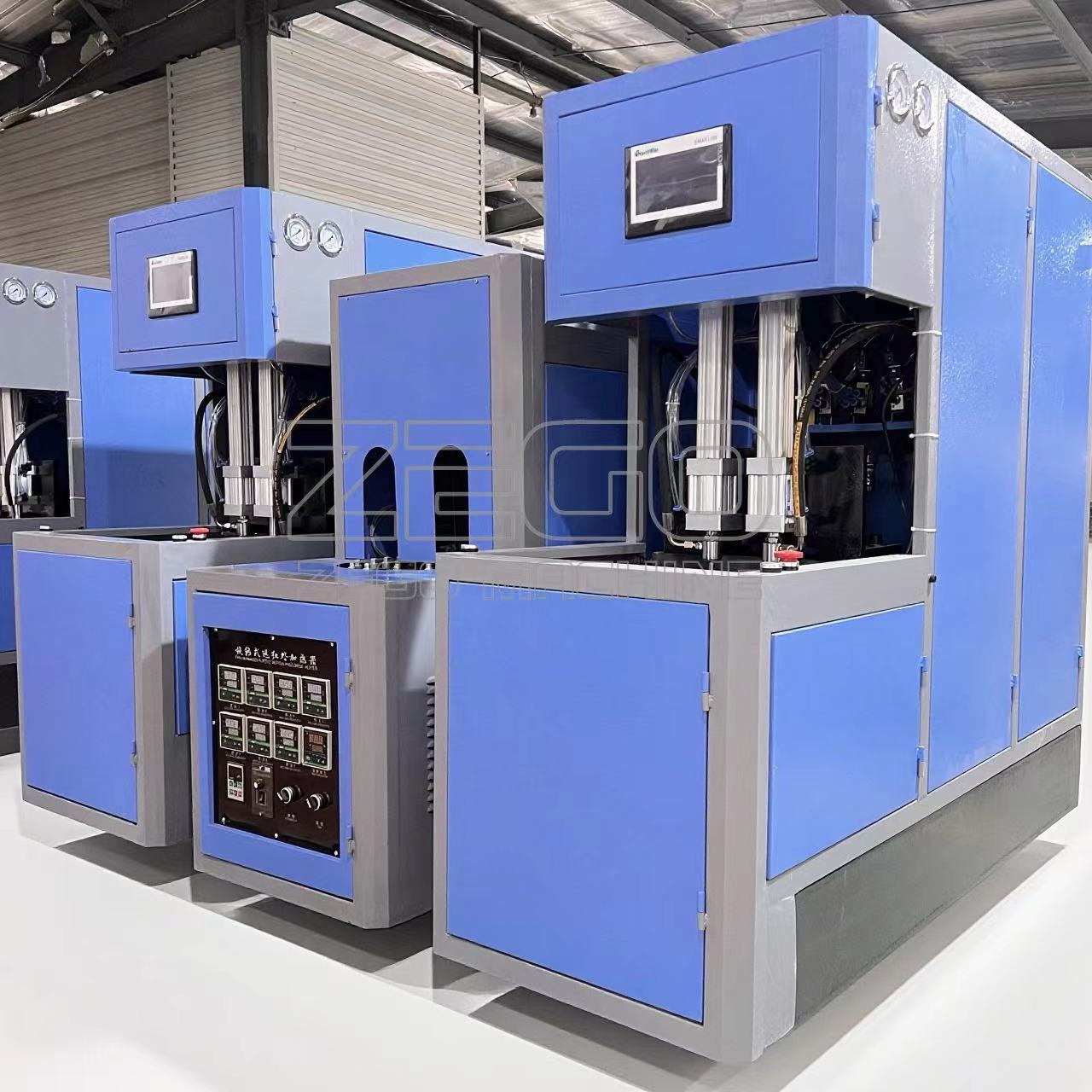

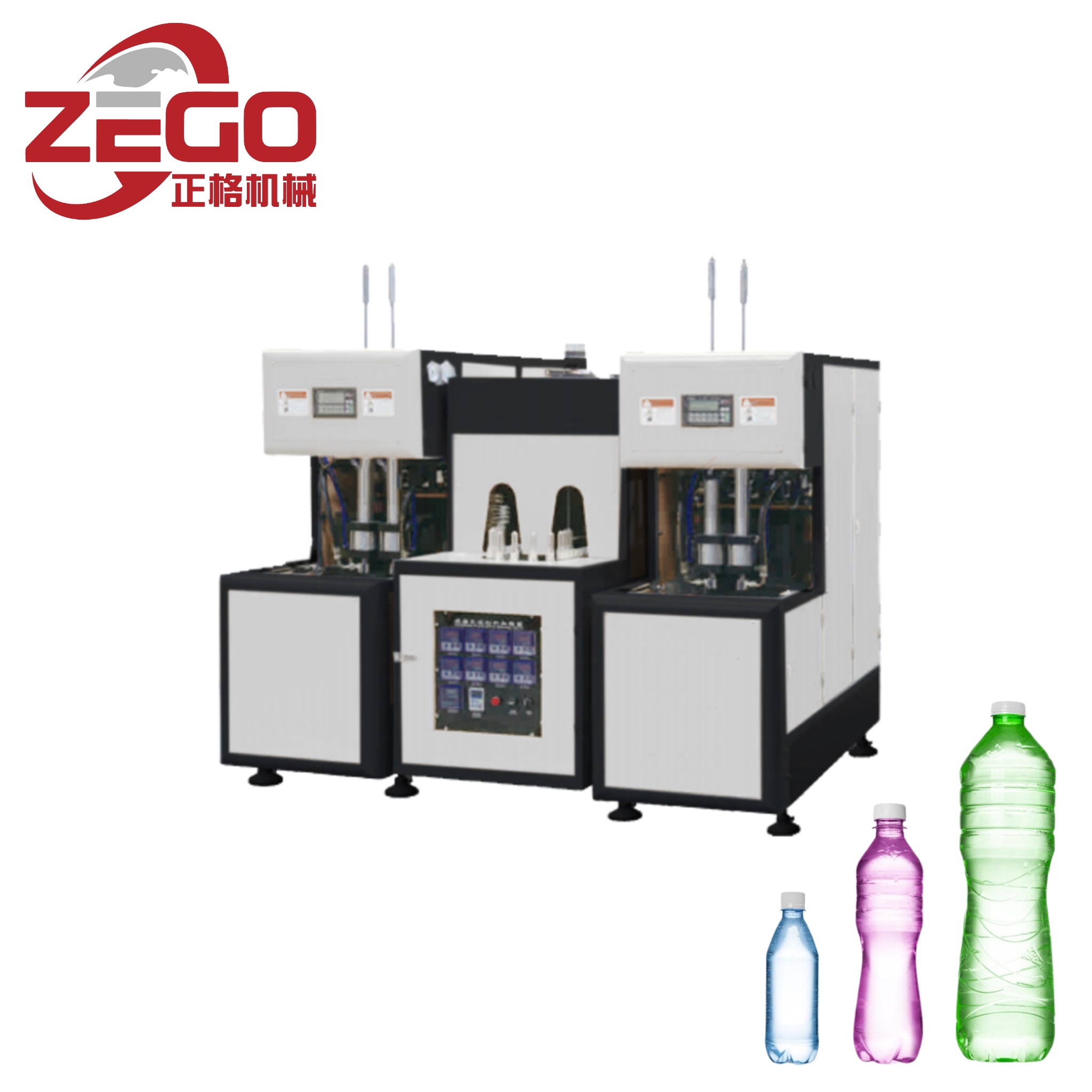

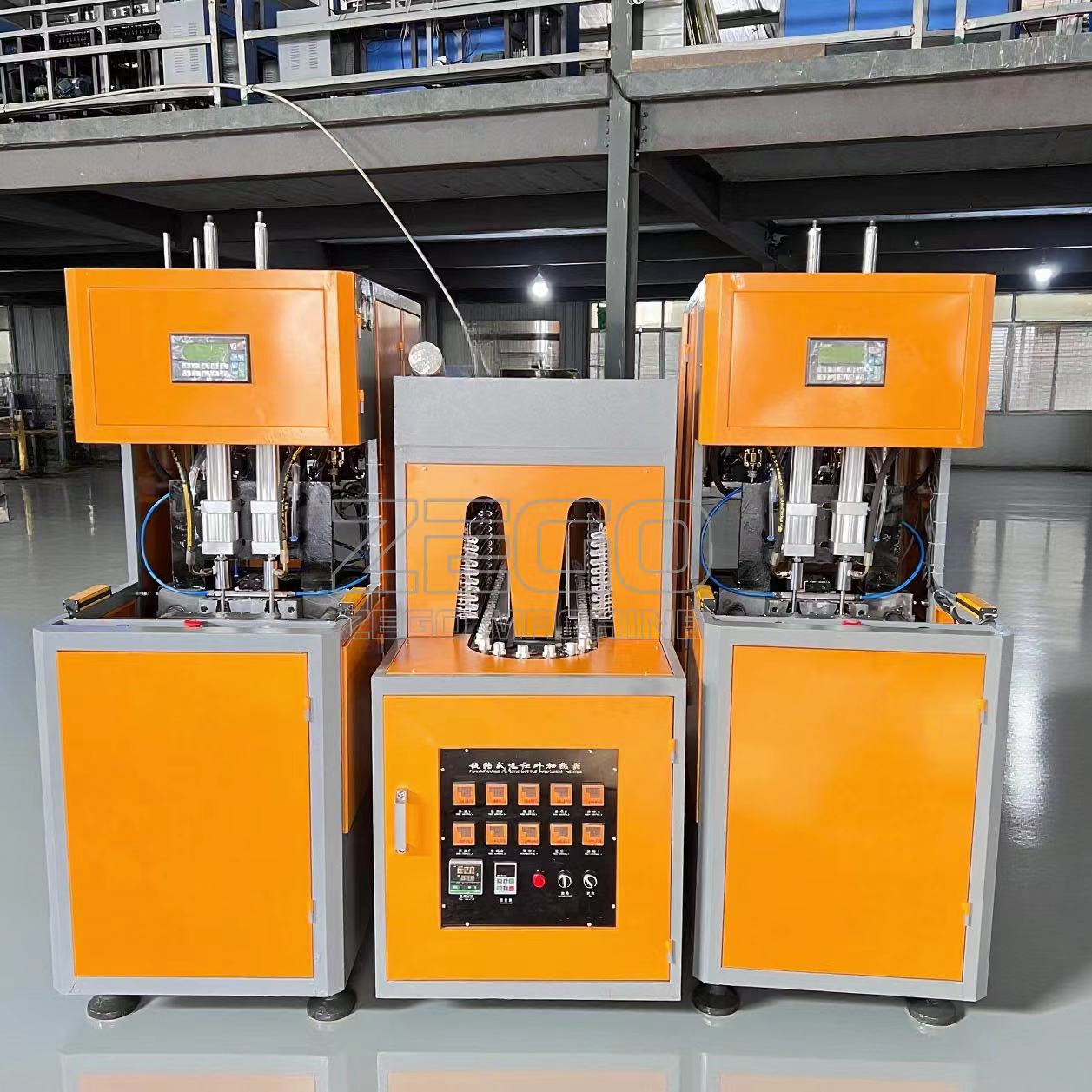

ZG1000B
ZEGO


1.Adopts a high-end single-chip microcomputer control system for stable long-term operation and low failurerisk.
2.Integrally cast frame enhances overall rigidity and anti-vibration ability, ensuring stable equipment operation.

| ZG1000B | ||
| Container | Clamping Force(KN) | 70 |
| Clamping Stroke(MM) | 155 | |
| Stretching Stroke(MM) | 370 | |
| Cavity | 1-2 | |
| Capacity(BPH) | 1800-2200 | |
| Max.Bottle Volume(LTR) | 3 | |
| Max.Neck Diameter(MM) | 110 | |
| Max.Bottle Diameter(MM) | 130 | |
| Max.Height(MM) | 350 | |
| Electric Sydstem | Total Power(KW) | 8 |
| Heating Power(KW) | 5 | |
| Machine Specification | Blower size(MM) | 1650×650×1750*2 |
| Blower weight(MM) | 650*2 | |
| Heater size(MM) | 1700×670×1600 | |
| Heater weight(MM) | 350 |

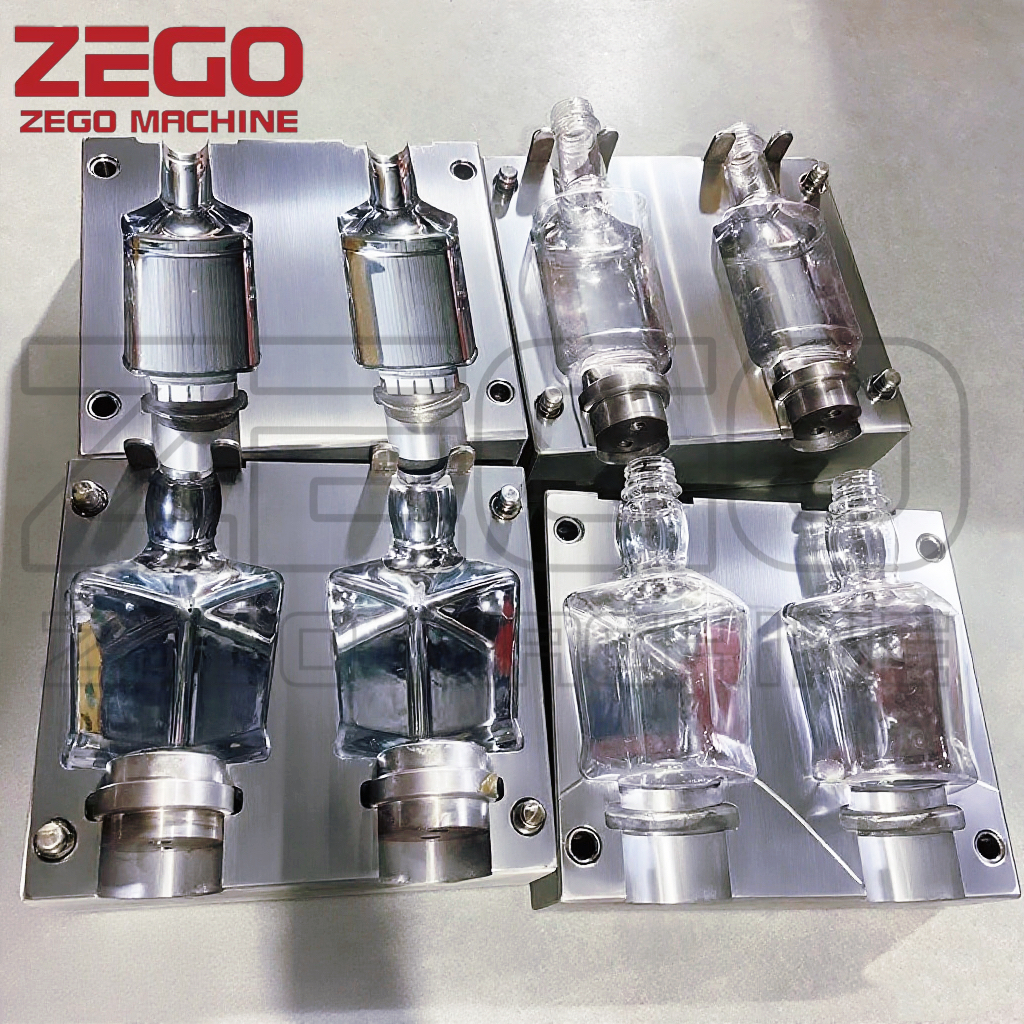

Blow Mold
*Ultra high molding precision ensures product consistency and sealing
*High flexibility and adaptability, quick response to multi specification production needs
*Ultra durable materials and easy to maintain design reduce long-term usage costs
Operating Valve
*It manages the on/off operation of high-pressure air dedicated to bottle blowing machines.
*It allows for precise adjustment of air flow throughout the blow molding process.
*By controlling the high-pressure air supply, it guarantees the accurate shaping of bottle preforms.
PLC
*Operation and monitoring are streamlined via the human-machine interface for ease of use.
*It automatically logs daily production data and enables real-time monitoring of production-related information.
*It provides failure alerts and supports troubleshooting to resolve issues promptly.
Housing Thickness
*Material: The machine enclosure is made of 1.5mm-thick stainless steel.
*Durability: This stainless steel enclosure offers strong resistance to damage.
*Application: It stays intact during transportation and extended periods of customer use.

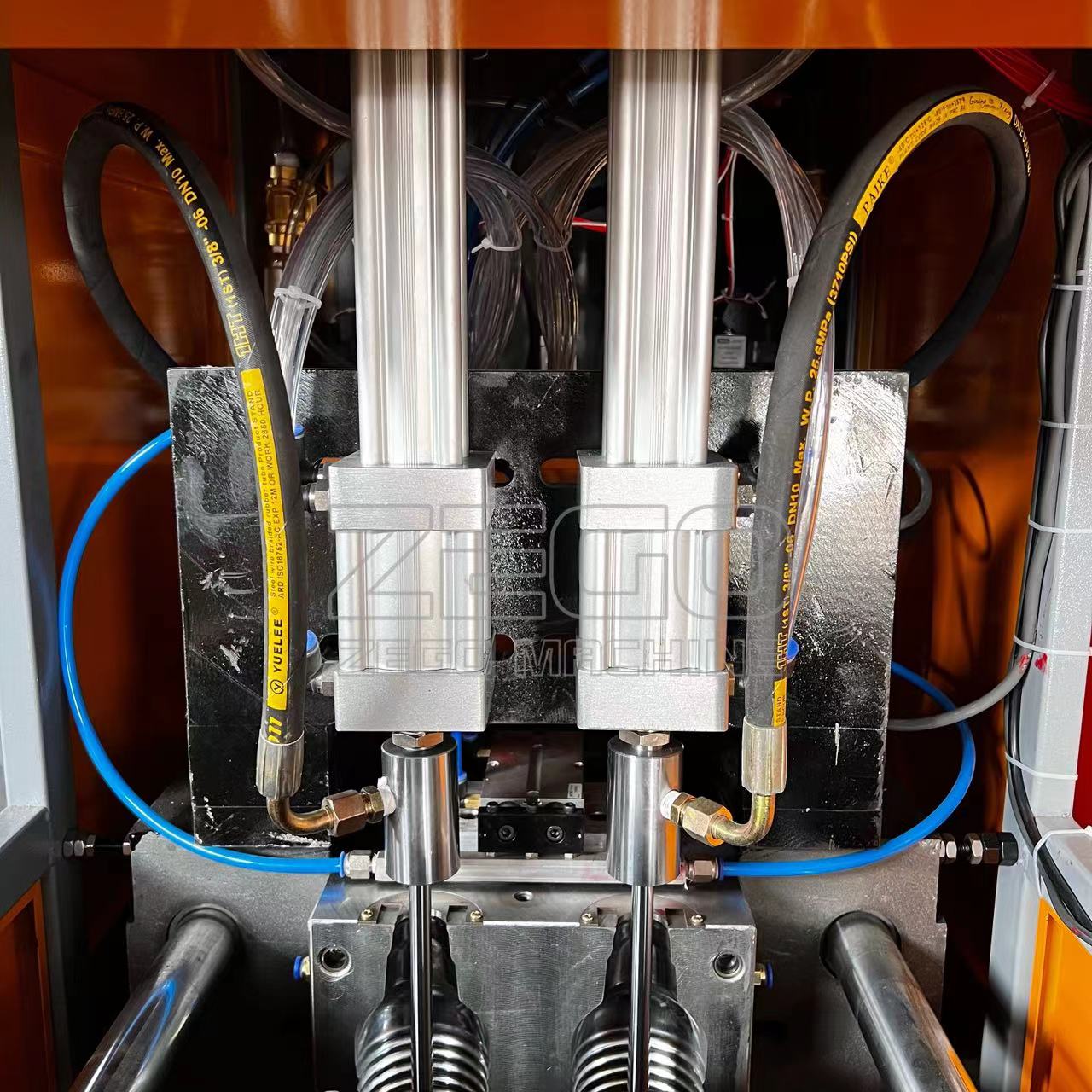

Cylinder
*Stretch/Clamp Cylinder: Airtac/Festo (offering customization possibilities).
*It demonstrates stable operational performance with an exceptionally low failure rate.
*It accomplishes preform clamping, stretching, blow molding, and ejection operations.

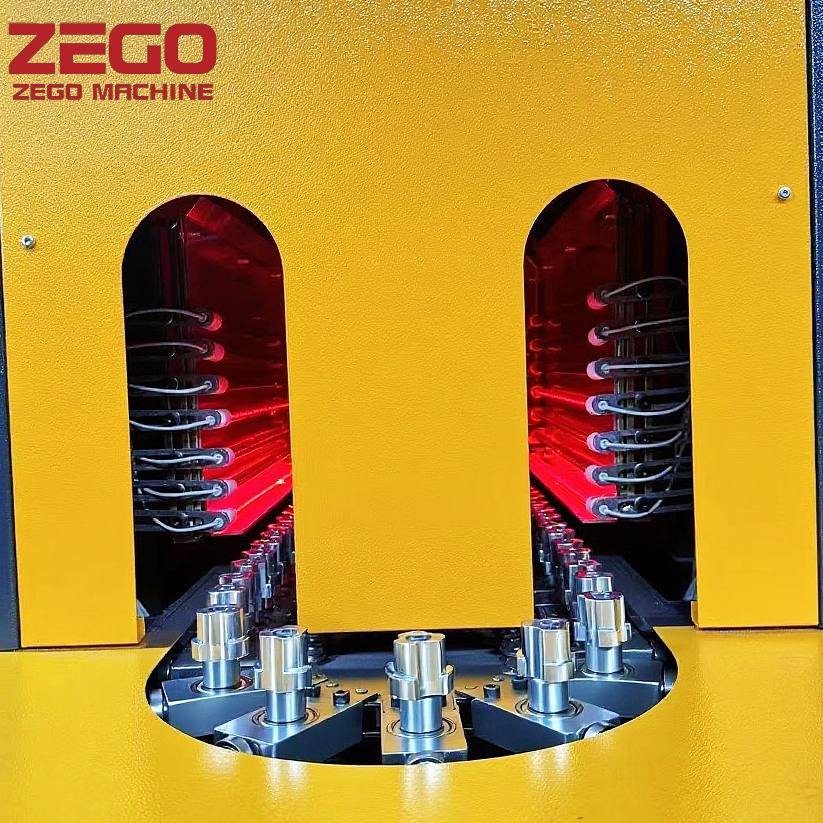

Heater
*Heating Method: Infrared lamps are employed for preform heating.
*Equipment Configuration: The device is equipped with 28 heating lamps and 72 heating holders.
*Adaptability: Heating holders are tailored to the neck sizes of preforms (each size requires a specific holder).
