| Quantity: | |

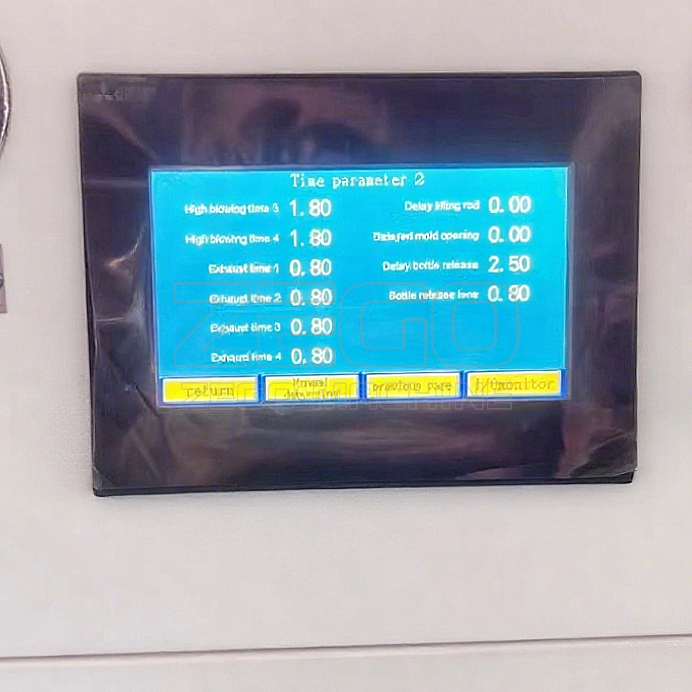

1.Core Control: Adopts a high-end single-chip microcomputer control system, ensuring the equipment operates stably for the long term and significantly reducing the risk of malfunctions.

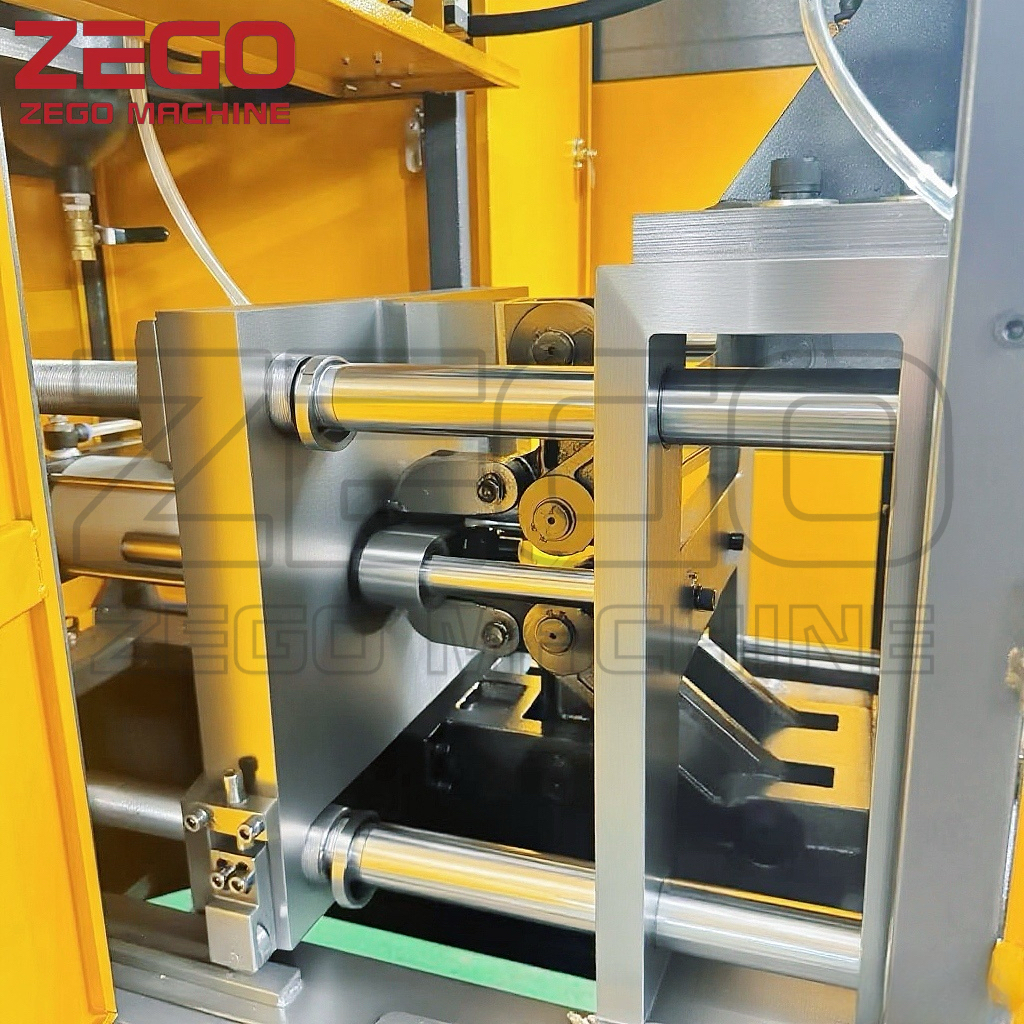

2.Structural Strength: Features an integrally cast frame, which greatly enhances the equipment’s overall rigidity and anti-vibration performance to guarantee stable operation.

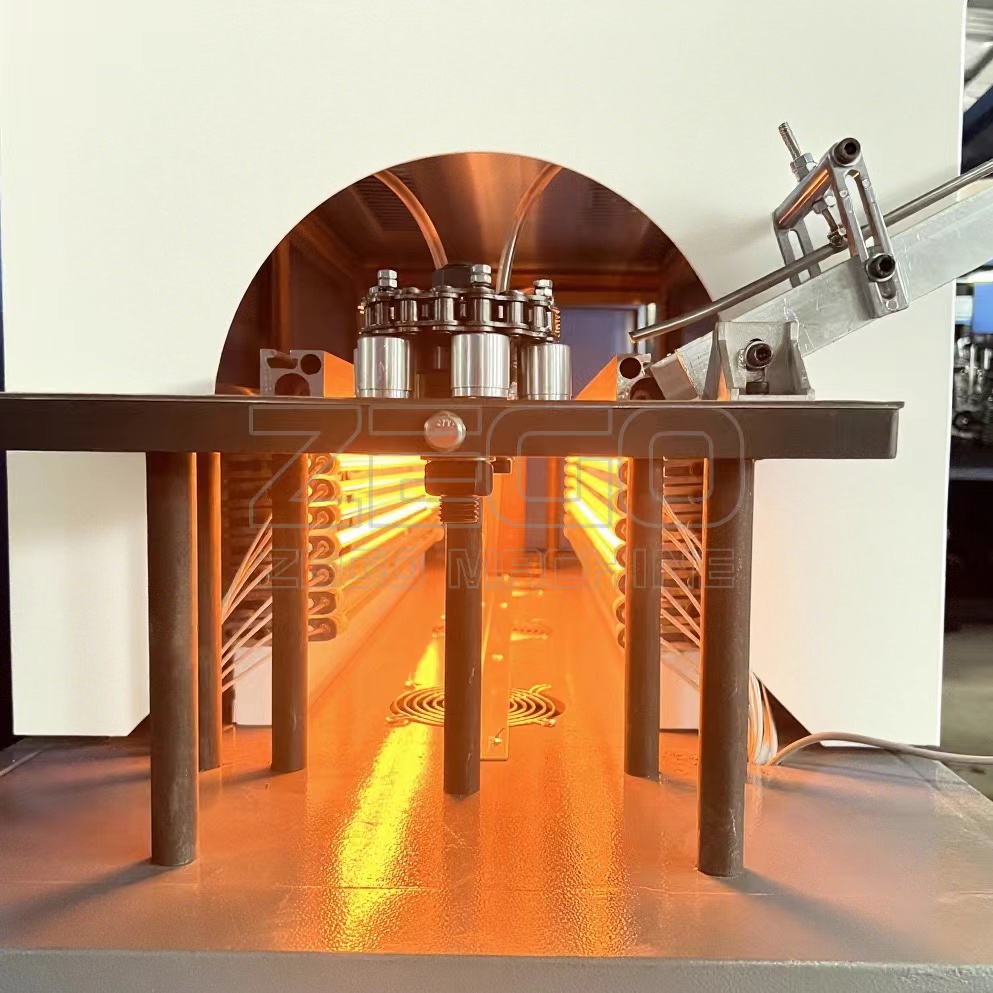

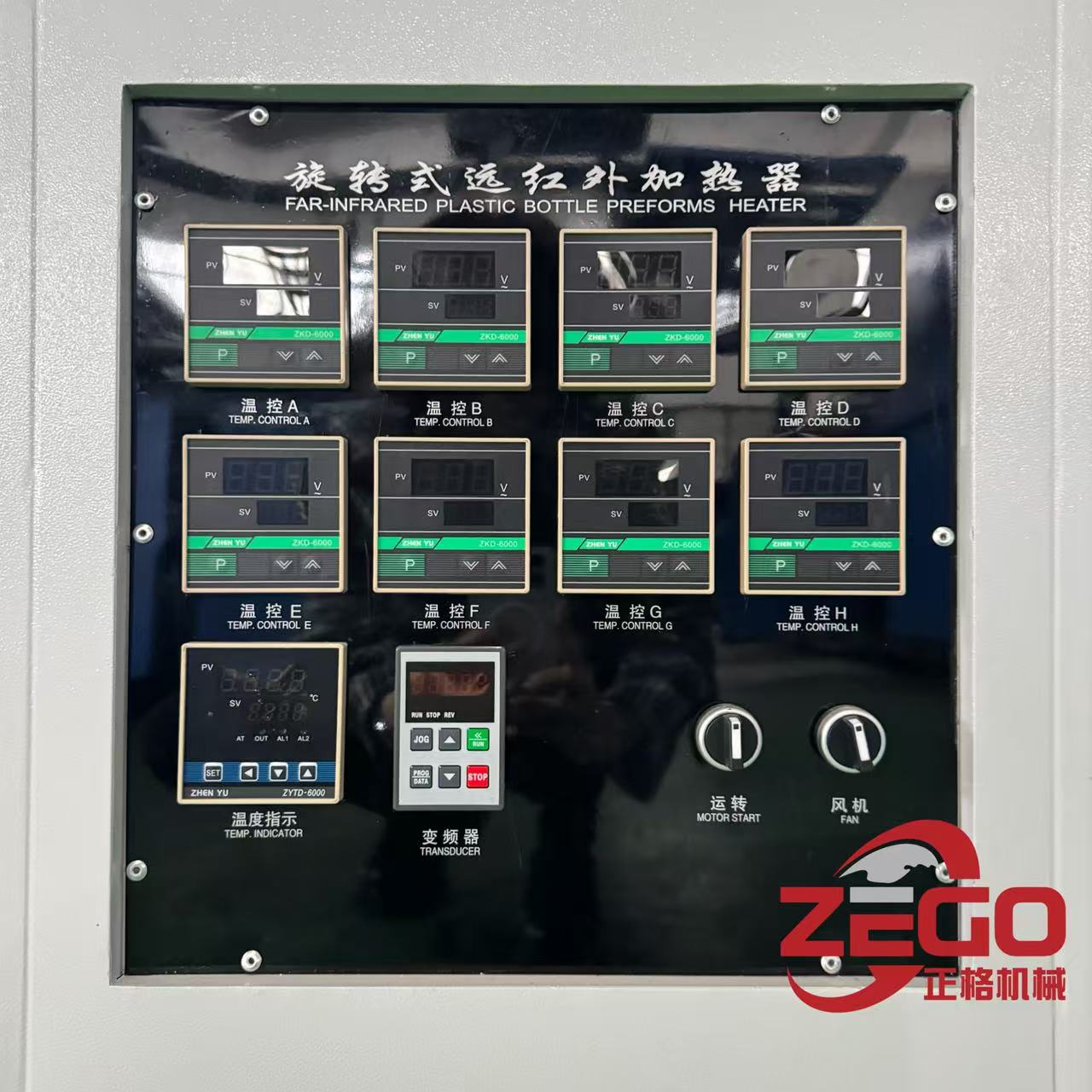

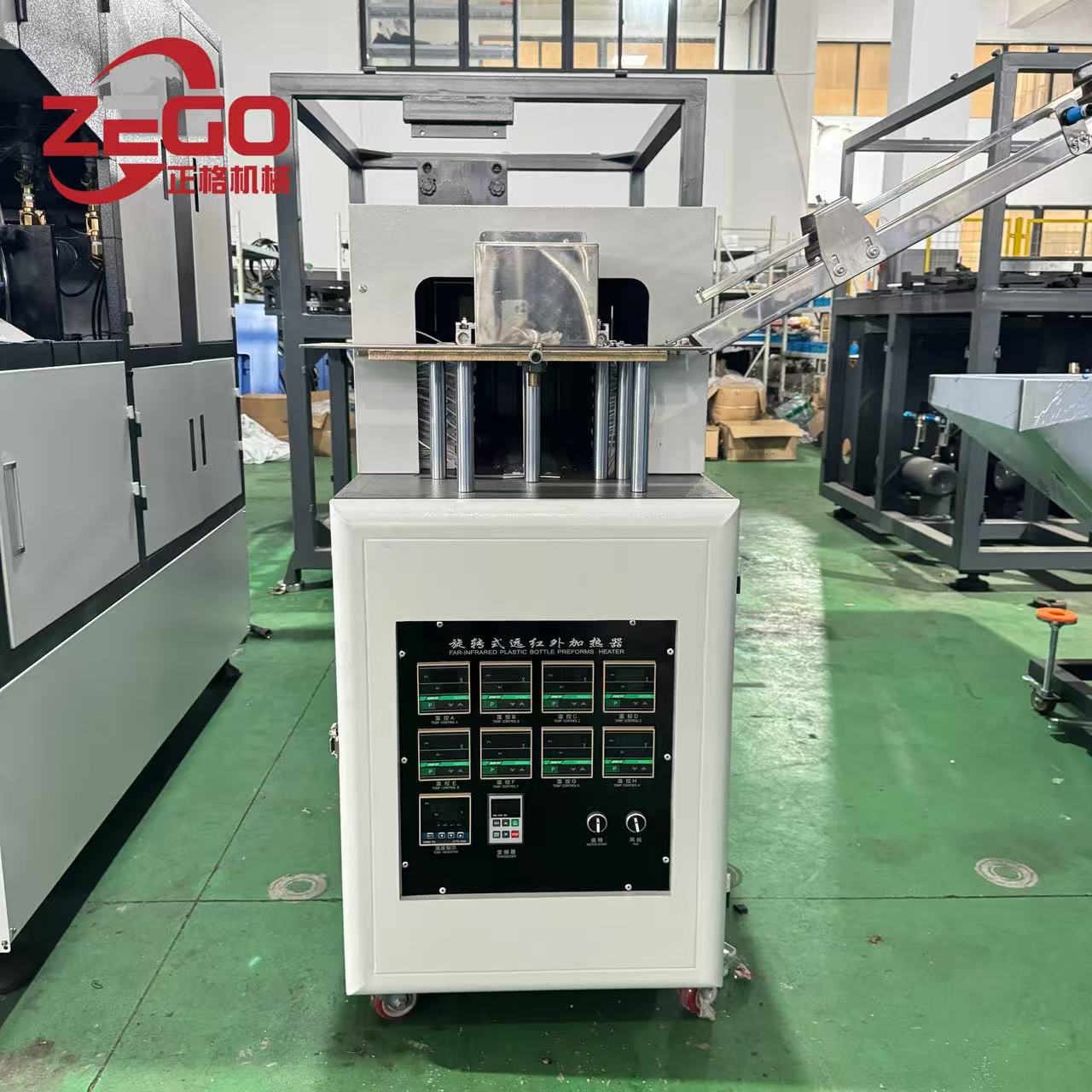

3.Heating System: Equipped with high-penetration infrared heating lamps. Combined with bottle preform rotation and orbital heating technology, it achieves fast, uniform, and reliable heating with consistent heat distribution.
4.Adaptability & Temperature Stability: The heating tube is built with width/height-adjustable baffles, compatible with multiple bottle preform specifications. An integrated automatic exhaust function maintains a stable heating environment.
5.Safety Protection: All mechanical motions are outfitted with safety self-locking mechanisms. In case of process abnormalities, the system automatically switches to a safe operating mode.

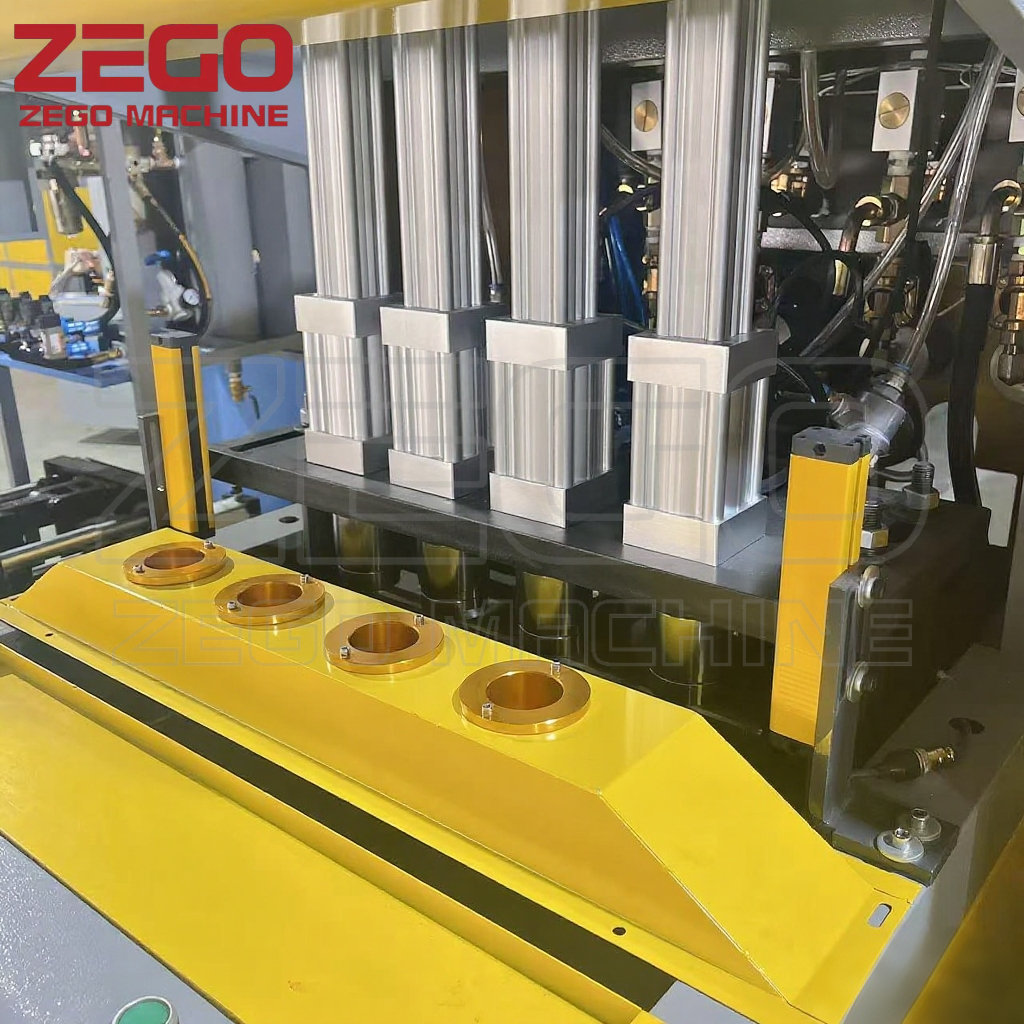

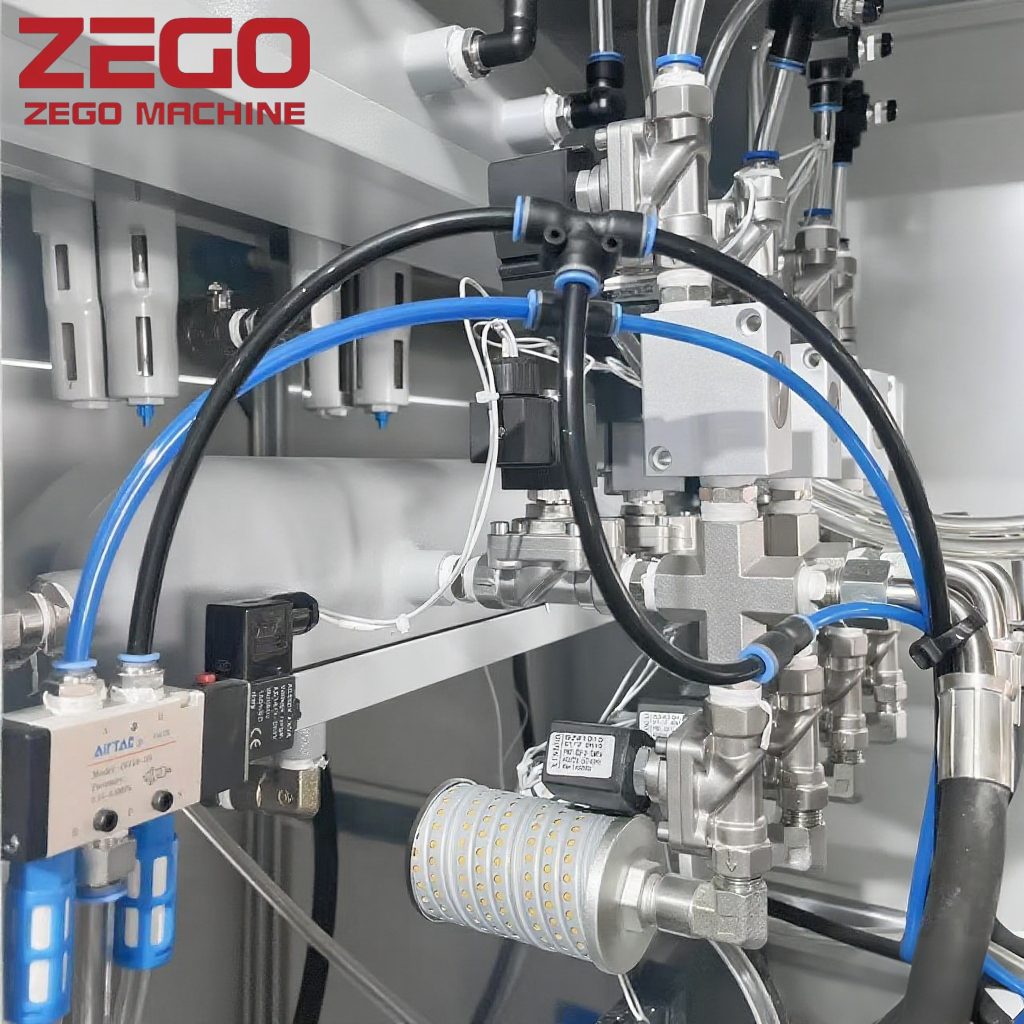

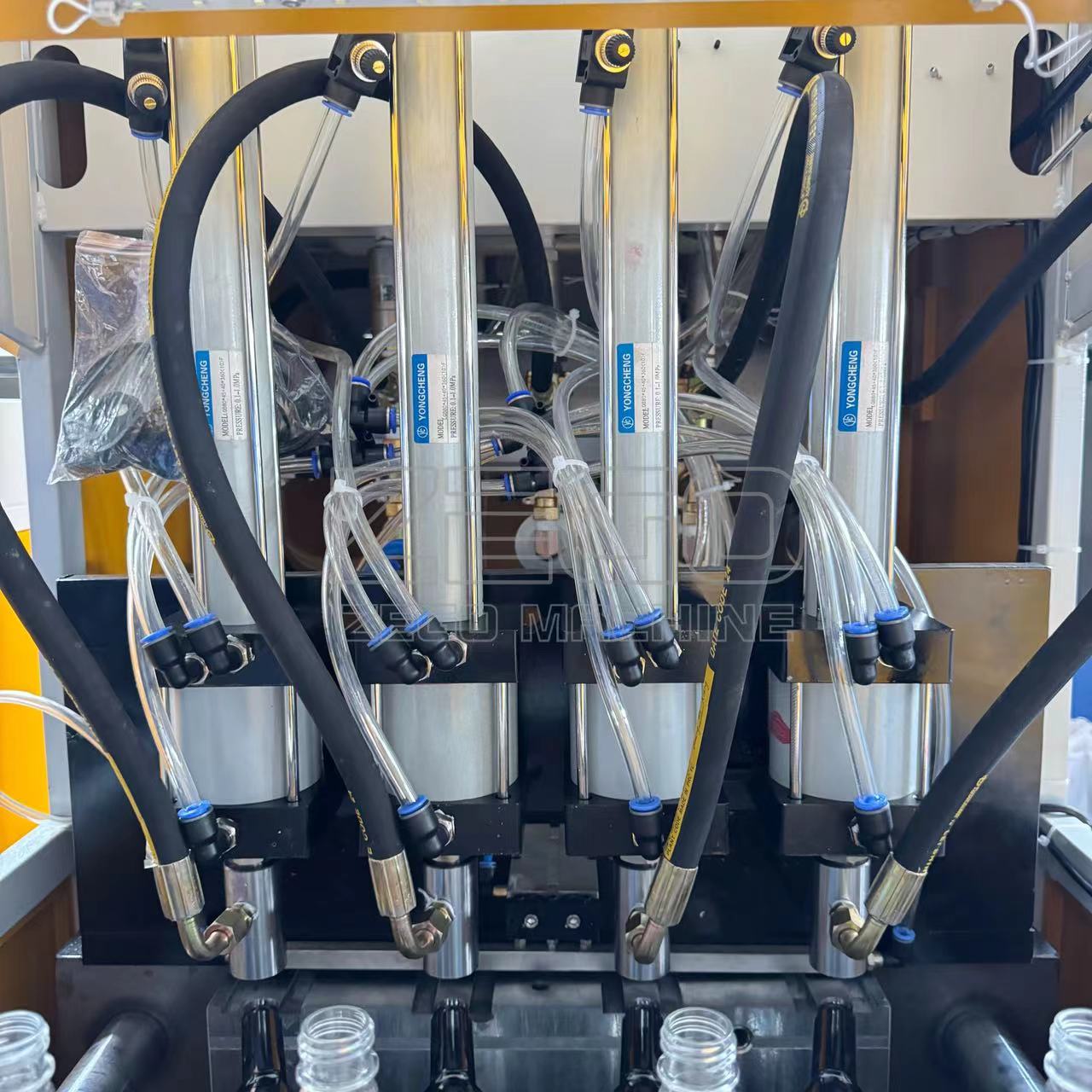

6.Drive Design: Utilizes cylinder-driven operation (no oil pump required), enabling pollution-free operation and keeping the equipment’s running noise at a low level.

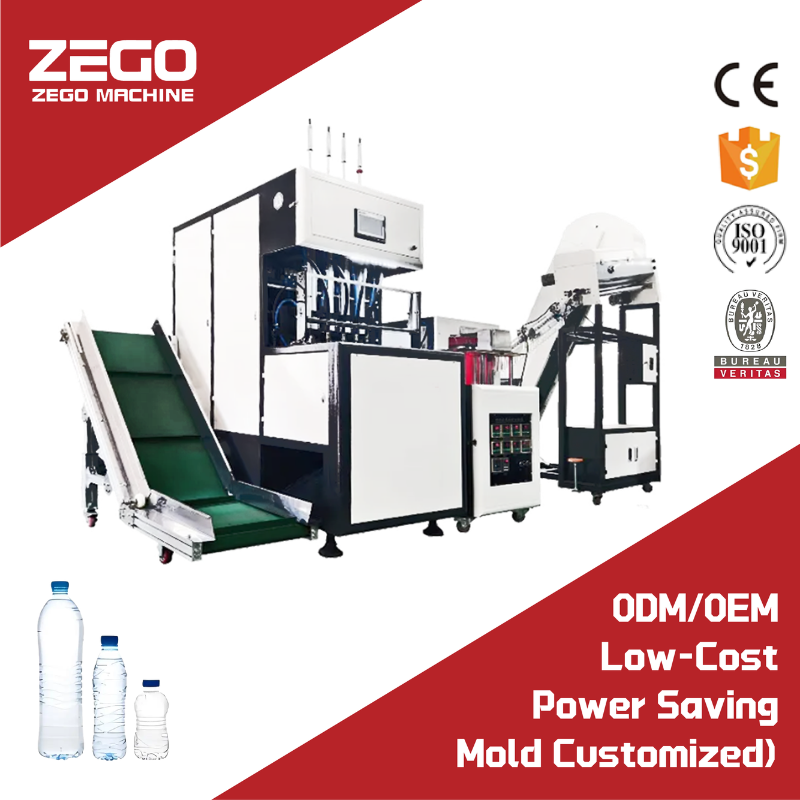

| ZG2000B | ||
| Container | Clamping Force(KN) | 100 |
| Clamping Stroke(MM) | 190 | |
| Stretching Stroke(MM) | 370 | |
| Cavity | 4 | |
| Capacity(BPH) | 2000-2300 | |
| Max.Bottle Volume(LTR) | 2 | |
| Max.Neck Diameter(MM) | 38 | |
| Max.Bottle Diameter(MM) | 100 | |
| Max.Height(MM) | 350 | |
| Electric Sydstem | Total Power(KW) | 13 |
| Heating Power(KW) | 9 | |
| Machine Specification | Blower size(MM) | 1780×820×2000 |
| Blower weight(MM) | 800 | |
| Heater size(MM) | 2170×670×1600 | |
| Heater weight(MM) | 400 |
