Utilizes a top-tier single-chip microcomputer control system, ensuring reliable long-term operation and reducing the likelihood of failures.
Features an integrally cast frame that strengthens overall rigidity and vibration resistance, thus securing stable equipment performance.

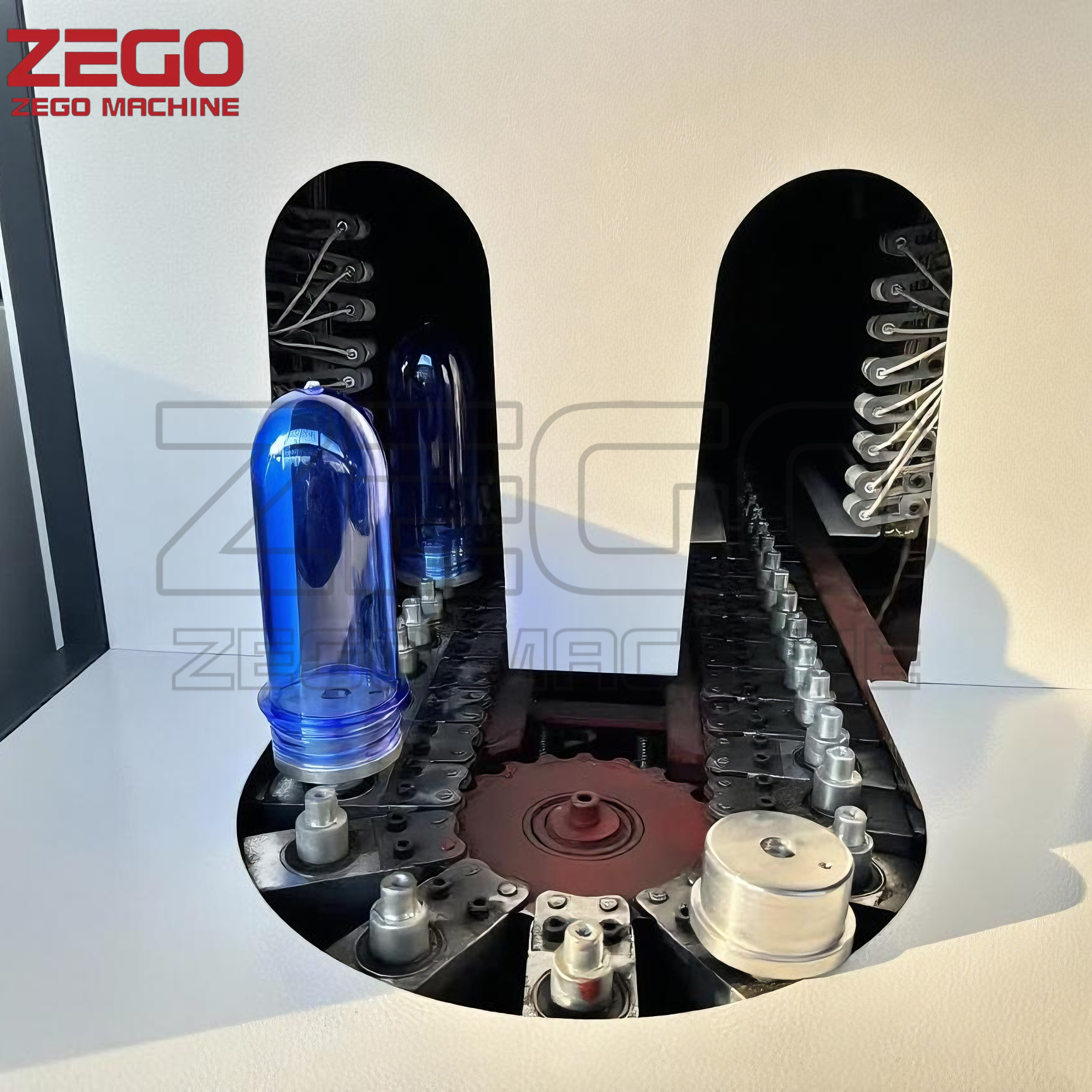

Adopts infrared lamp heating (with high penetration) combined with rotating bottle preforms and orbital uniform heating, enabling quick, even, and trustworthy heating.
The heating tube is fitted with baffles adjustable in width and height to suit different bottle preforms; an internal automatic exhaust system maintains consistent heating conditions.
Every mechanical action is equipped with a safety self-locking mechanism; the system automatically transitions to a safe state if a process error occurs.

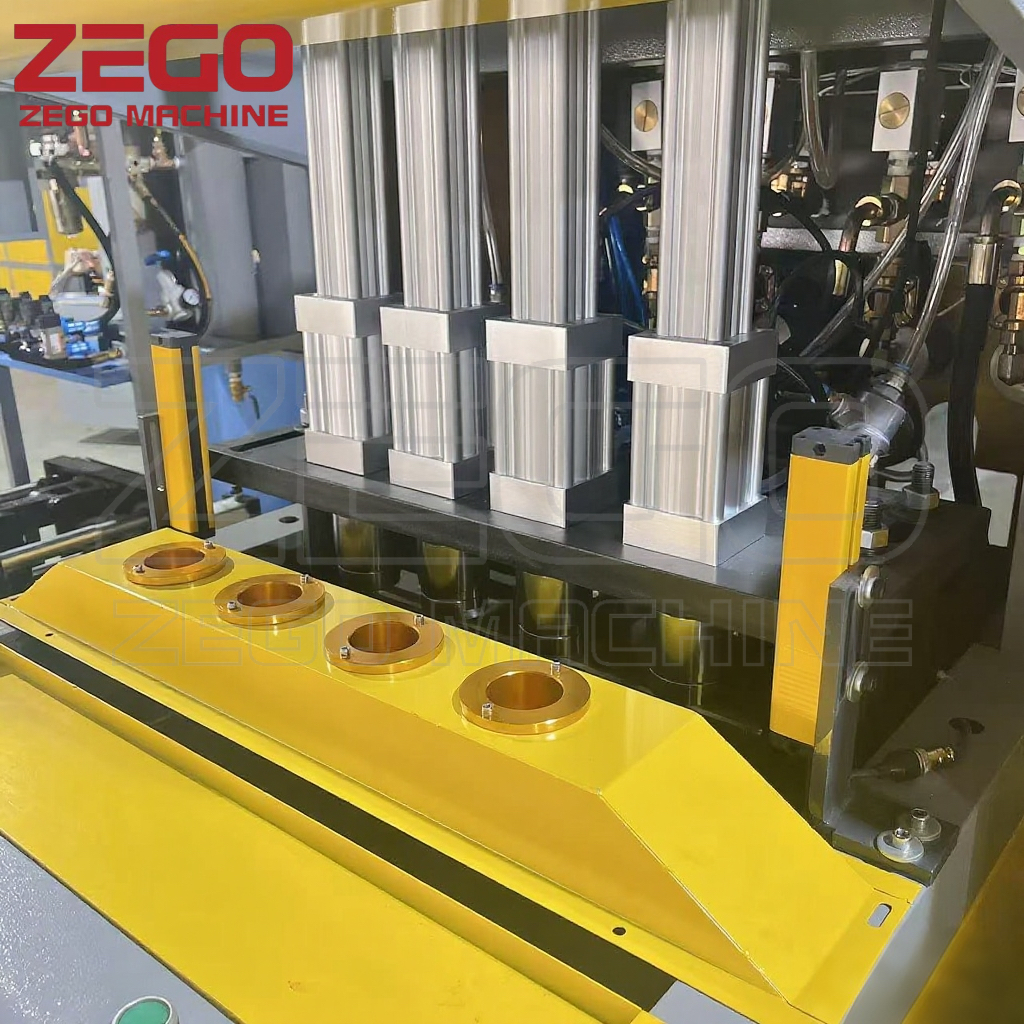

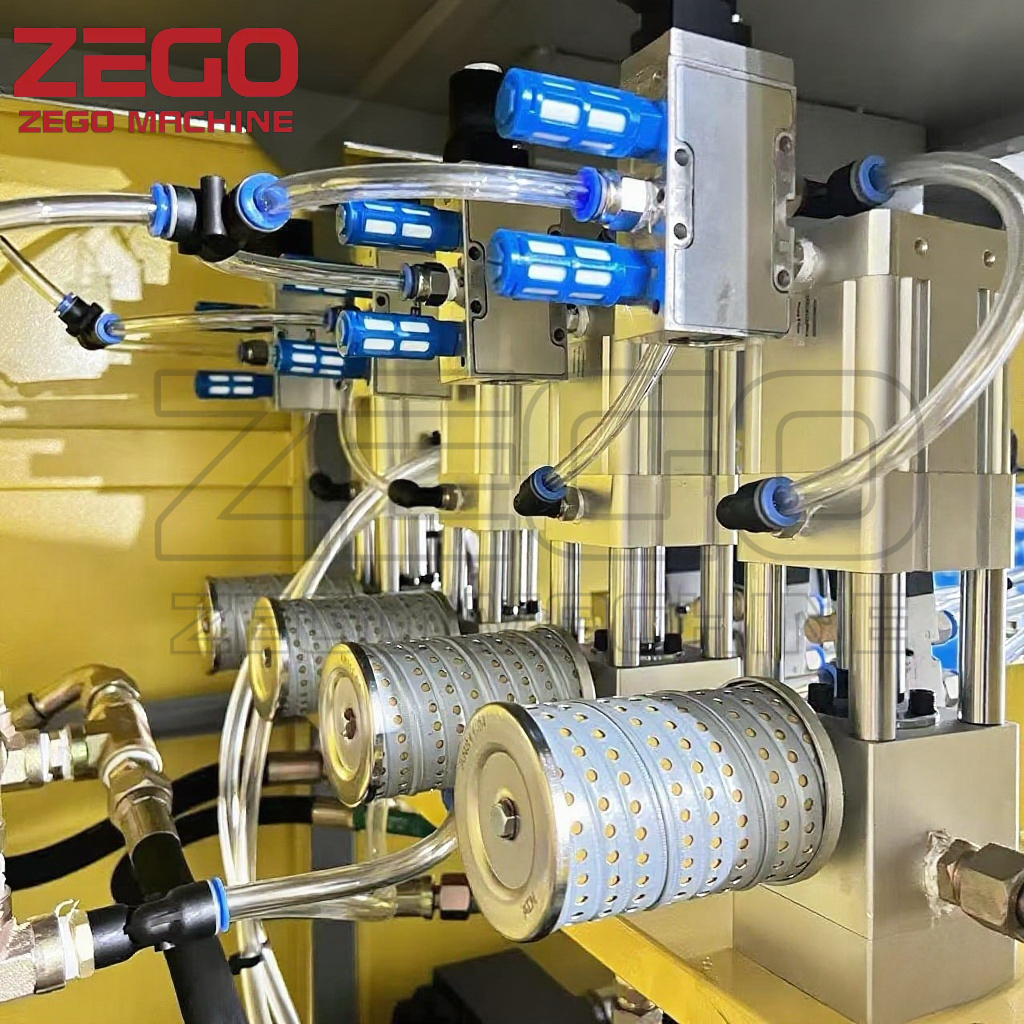

Relies on cylinder-driven actions (no oil pump required), realizing contamination-free operation and low noise levels.
| ZG500C | ||
| Container | Clamping Force(KN) | 100 |
| Clamping Stroke(MM) | 215 | |
| Stretching Stroke(MM) | 400 | |
| Cavity | 1-2 | |
| Capacity(BPH) | 800-1000 | |
| Max.Bottle Volume(LTR) | 5 | |
| Max.Neck Diameter(MM) | 120 | |
| Max.Bottle Diameter(MM) | 185 | |
| Max.Height(MM) | 380 | |
| Electric Sydstem | Total Power(KW) | 8 |
| Heating Power(KW) | 5 | |
| Machine Specification | Blower size(MM) | 1910×770×1710 |
| Blower weight(MM) | 1050 | |
| Heater size(MM) | 2170×565×1360 | |
| Heater weight(MM) | 450 |
