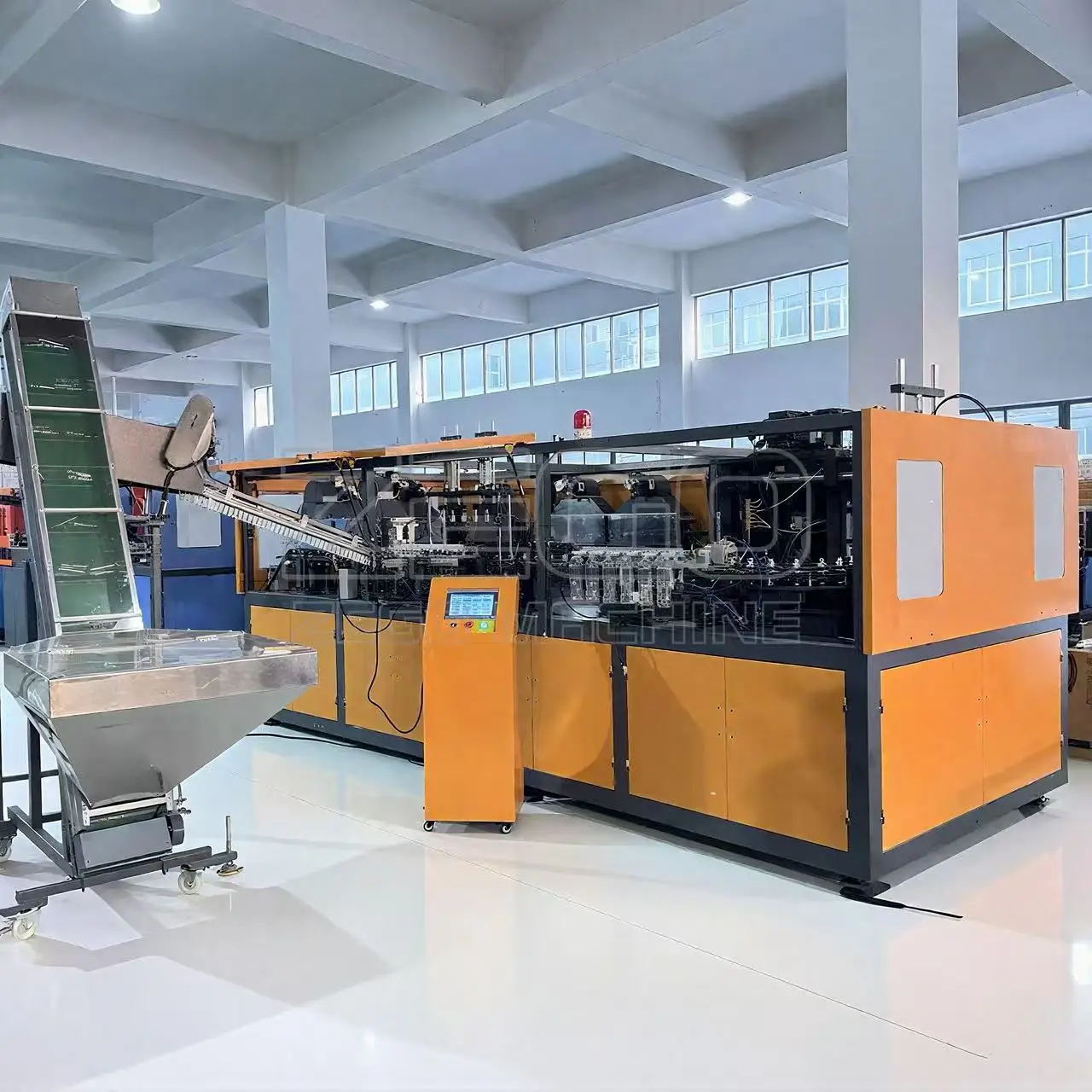

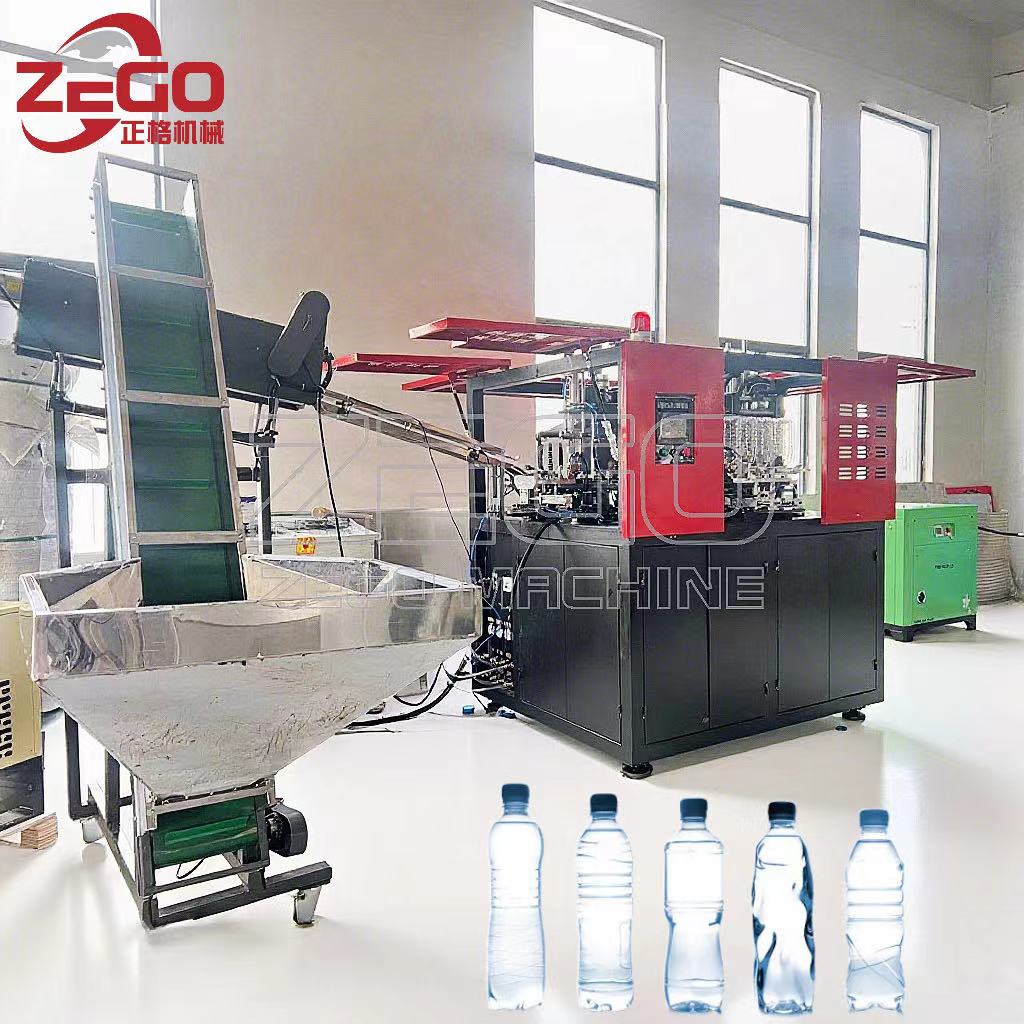

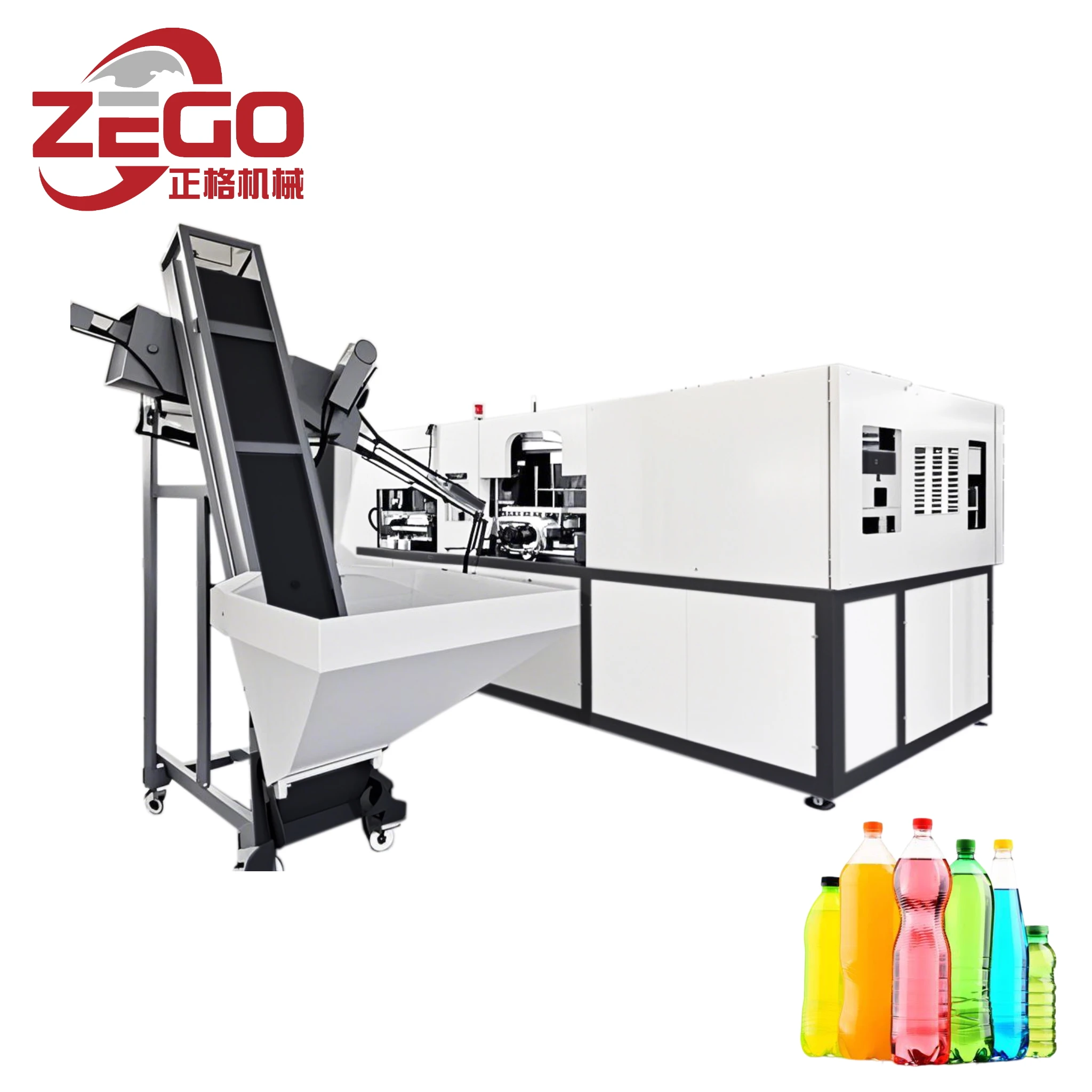

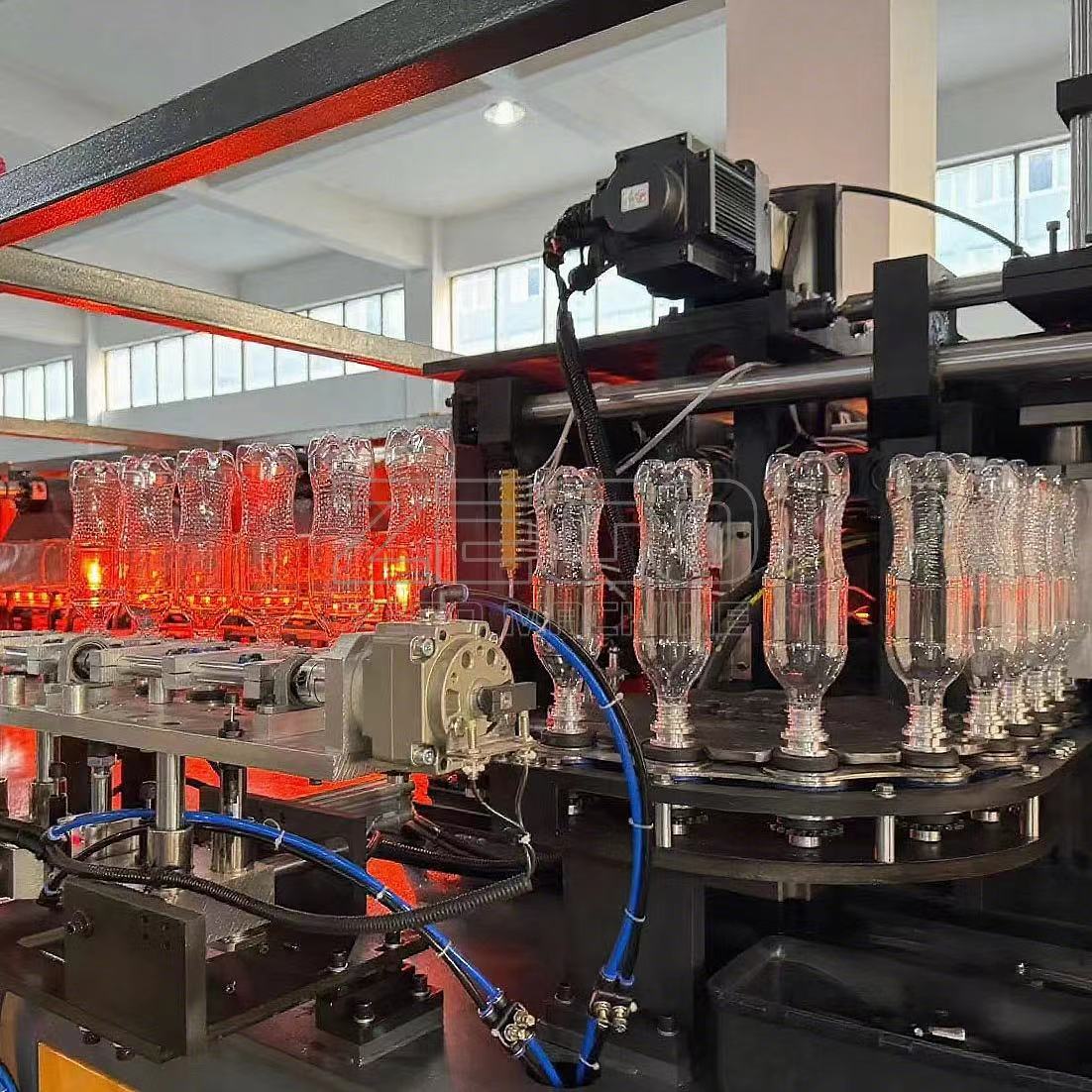

6 Cavity High Speed Plastic Bottle Making 0.5L- 1.5L 6000BPH Automatic PET Stretch Blow Molding Machine


Availability:

Quantity:

Inquire Add to Basket

Model:
ZG6000S
Brand:
ZEGO

Production Capacity: 7000BPH(500ml)
Control mode: Fully-auto PLc control
Container: PET bottle 0.1liter-1.5liter
Your product: Water and csD, Beer, Milk and dairy products, Oil and vinegar,Household & automotive

Advantage：

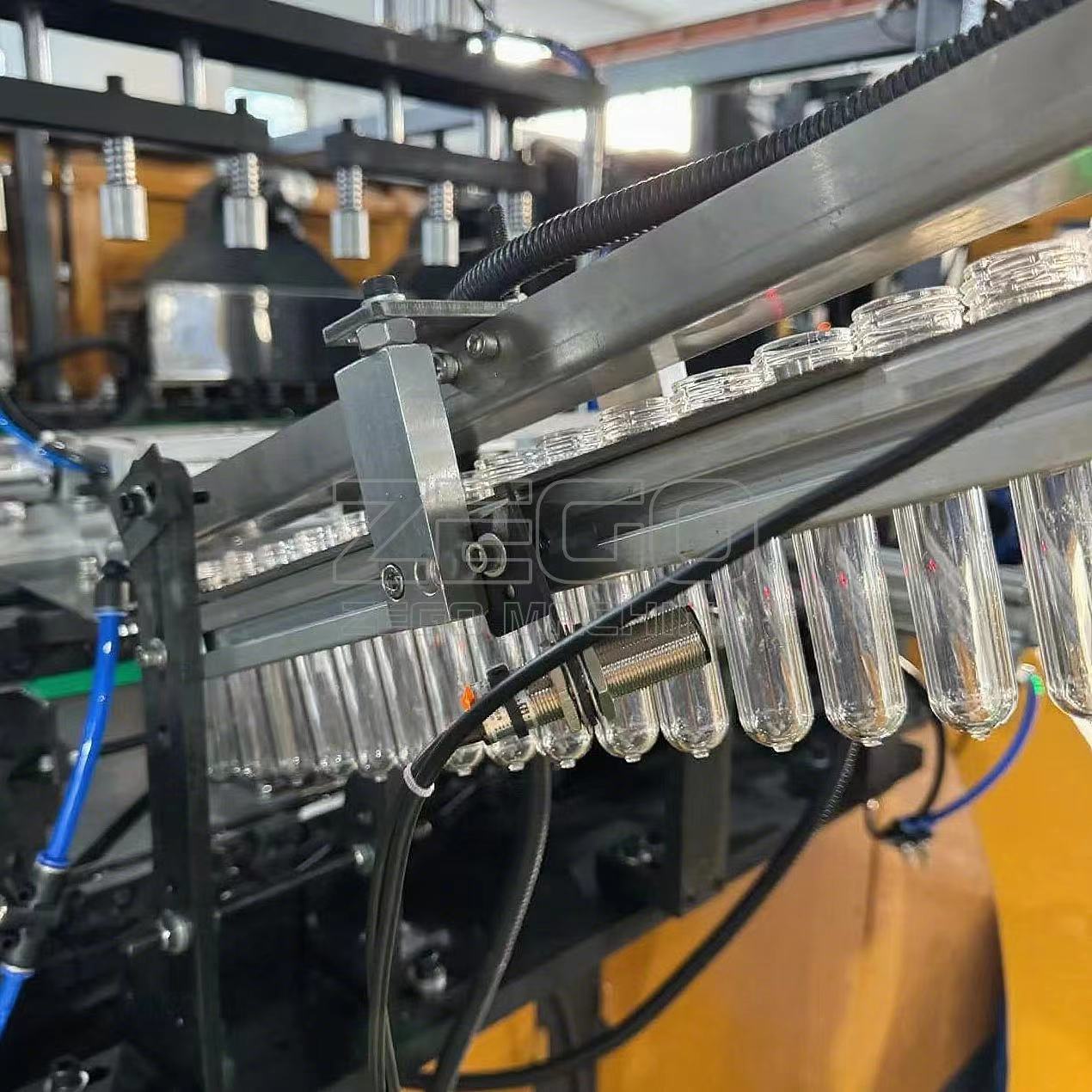

1.The machine use continuous rotation system with multiple safety protection devices to ensure the high speed preform feeding.
2.The preform feeding without turning device,simple structure,convenient maintance, reduce cost of spare part change.
3.The heating pitch between the preforms is small,effectively using the heating space of the lamp tube,and improving the heating efficiency enery saving by variable pitch structure.
4.The water runs directly through the heating channel with air cooling system to protect preform neck from deformation.
5.Optimize oven air draft and preform surface cooling.Reversible heating box make it more easy to change lamp.

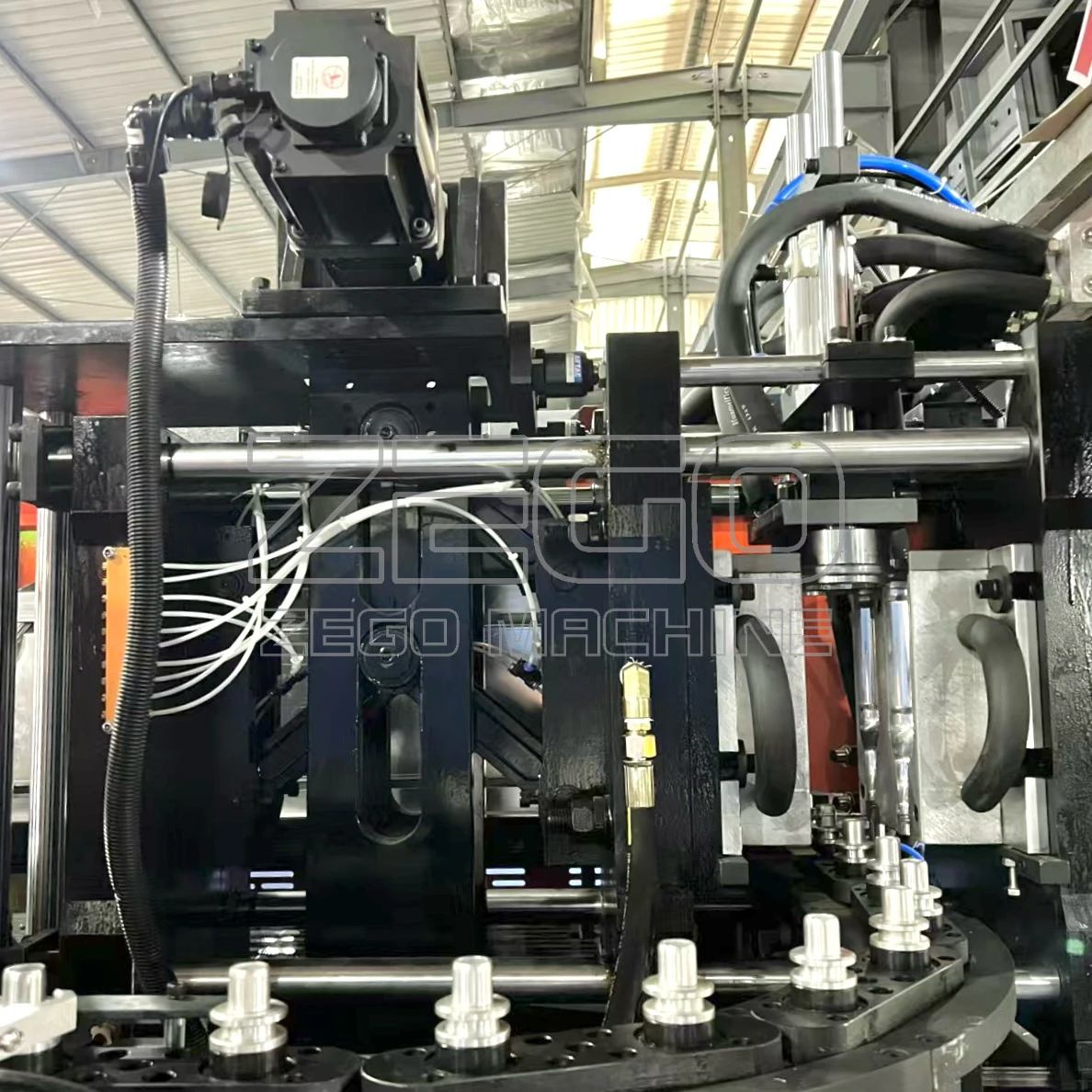

6.Mould closing adopts CAM linkage,no chain plate pin shaft small size, long service life.
7.The stepping servo motor ensure high-speed operation and accurate positioning.
8.Servo moto is used to drive the stretching and blowing station,equipped with high speed precision blowing valve set to achieve high production requirements.
9.Stainless steel pipe make the air blowing more clean without pollution.
10.High pressure recycle system reduce power consumption.

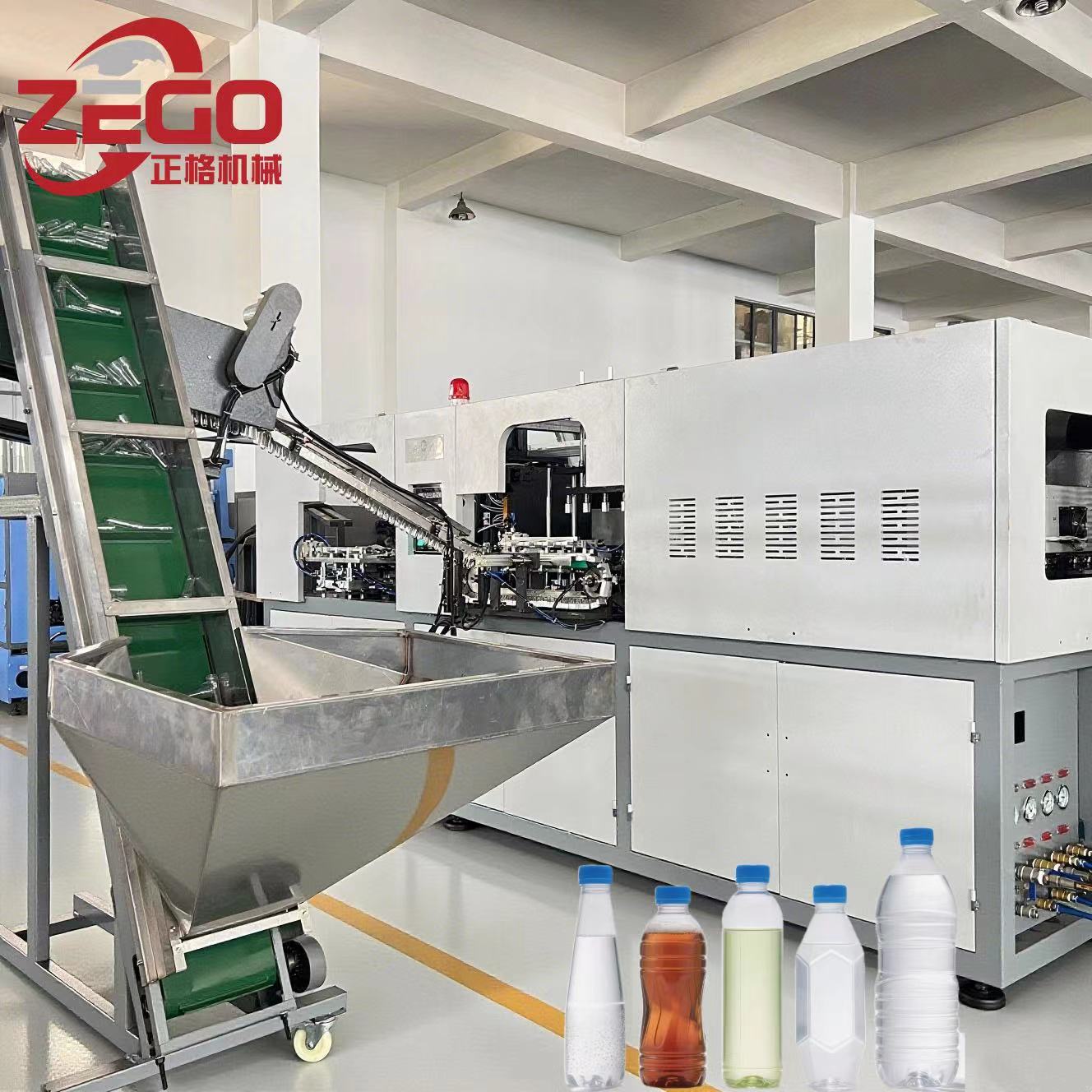

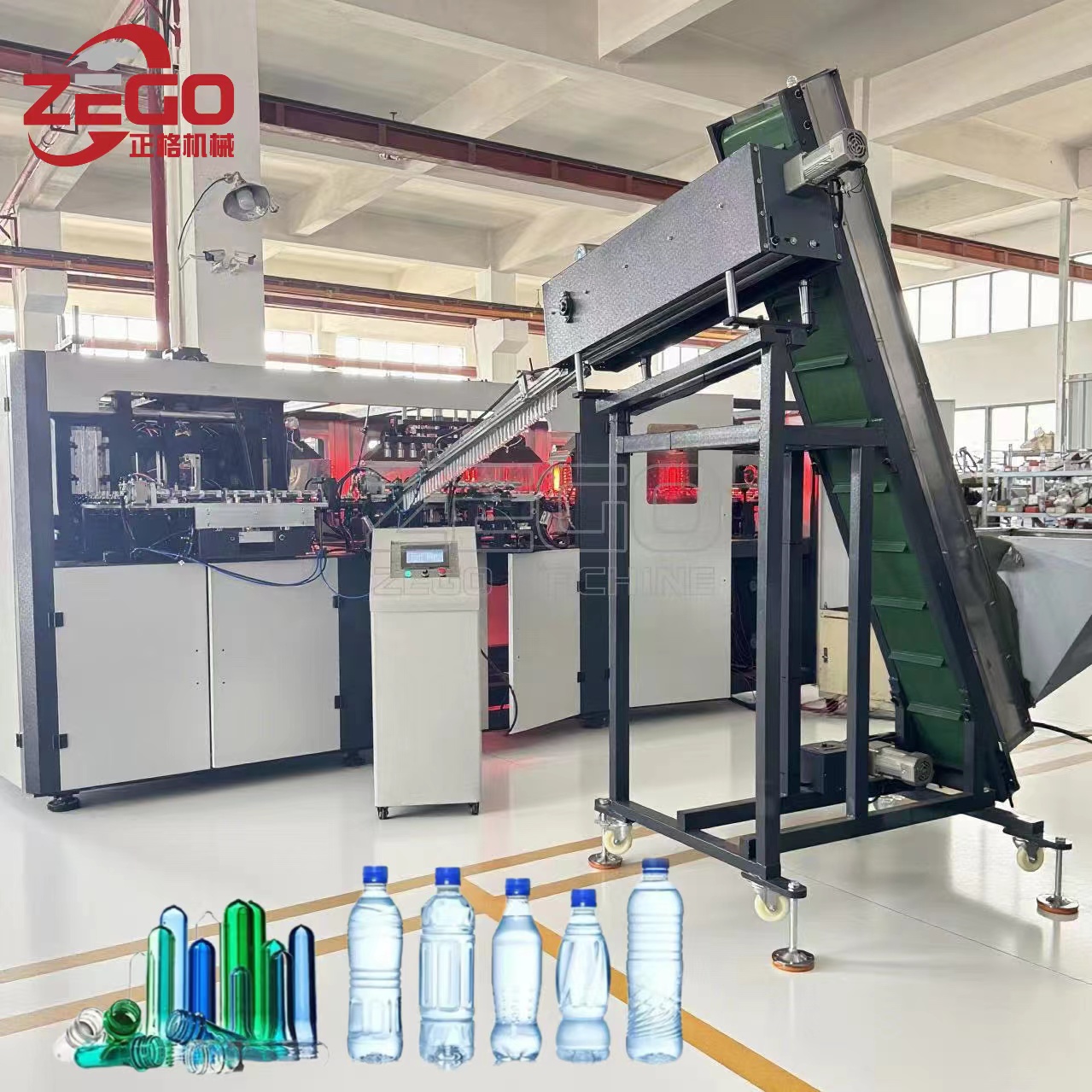

11.Multiple direction positioned for the autoloader make it more flexibly for installation.
12.The machine is desighed to be compact in size.effectively reducing floor space.

Product Specifications

H2765308746464e7bb1f51888fbb817eae H6ed7f763c58649179e8df1dc8fc0c423q

A Variable Pitch PET bottle blower is a high-speed, automated linear stretch-mold system whose preform feed is regulated by altering the gap between gripper and mold. By continuously adjusting this spacing, the machine can switch rapidly among different bottle formats—from small water bottles to large containers—cutting clamp time and raising overall output.

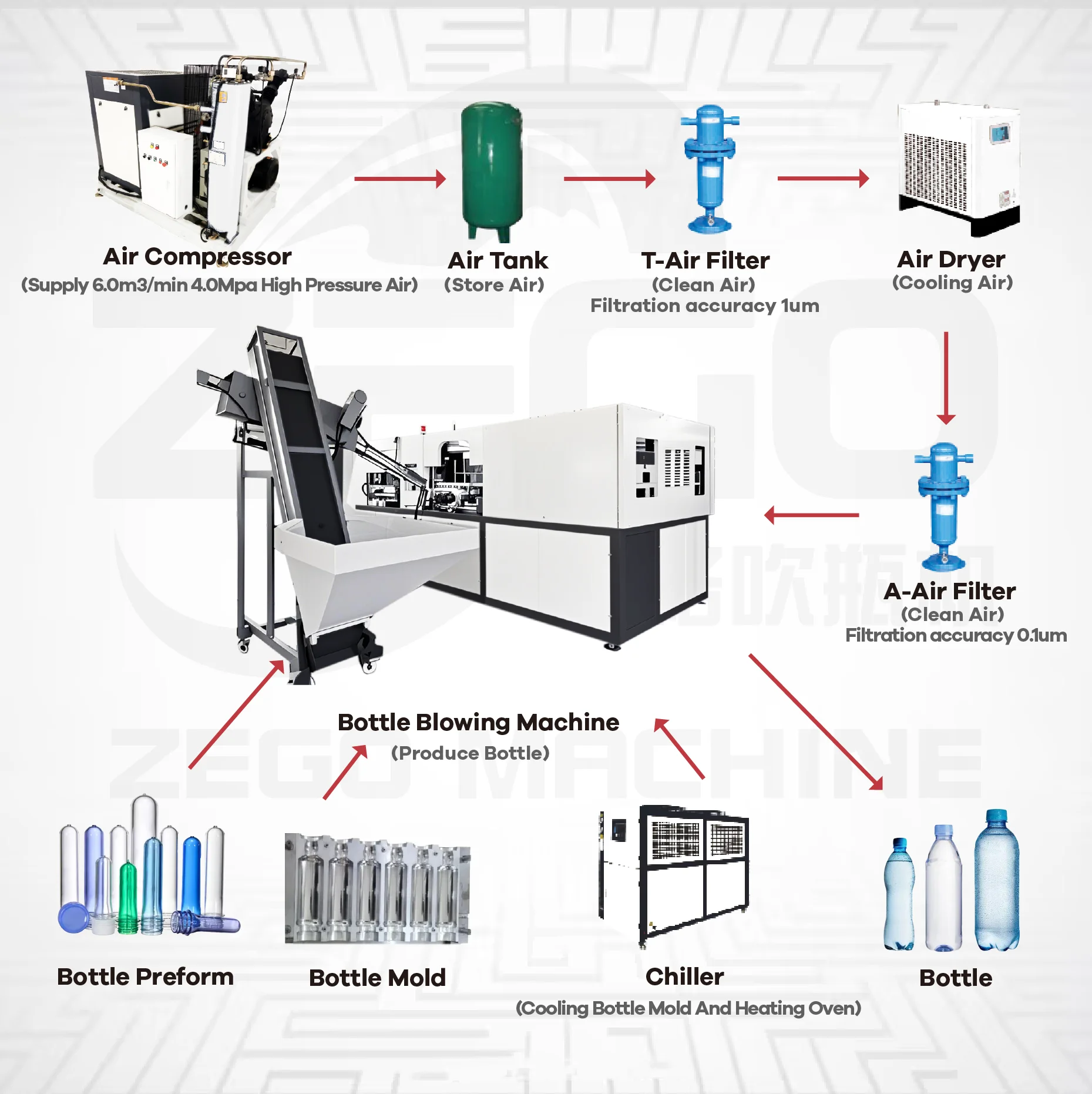

Specification

Air Compressor : Compress air,used for blowing bottle and blower action. ( Pressure 3.0 Mpa )
Air Tank : Store high pressure air.
Air Filter : Including 1 set T-class filter (1um) and 1 set A-class filter (0.01um). Cleaning oil and dust.
Air Dryer : Cooling and dry air,improve bottle quality,prolong phnuematic parts life.
Chiller : Cooling mould,make the machine suitable to working 24 hour per day.

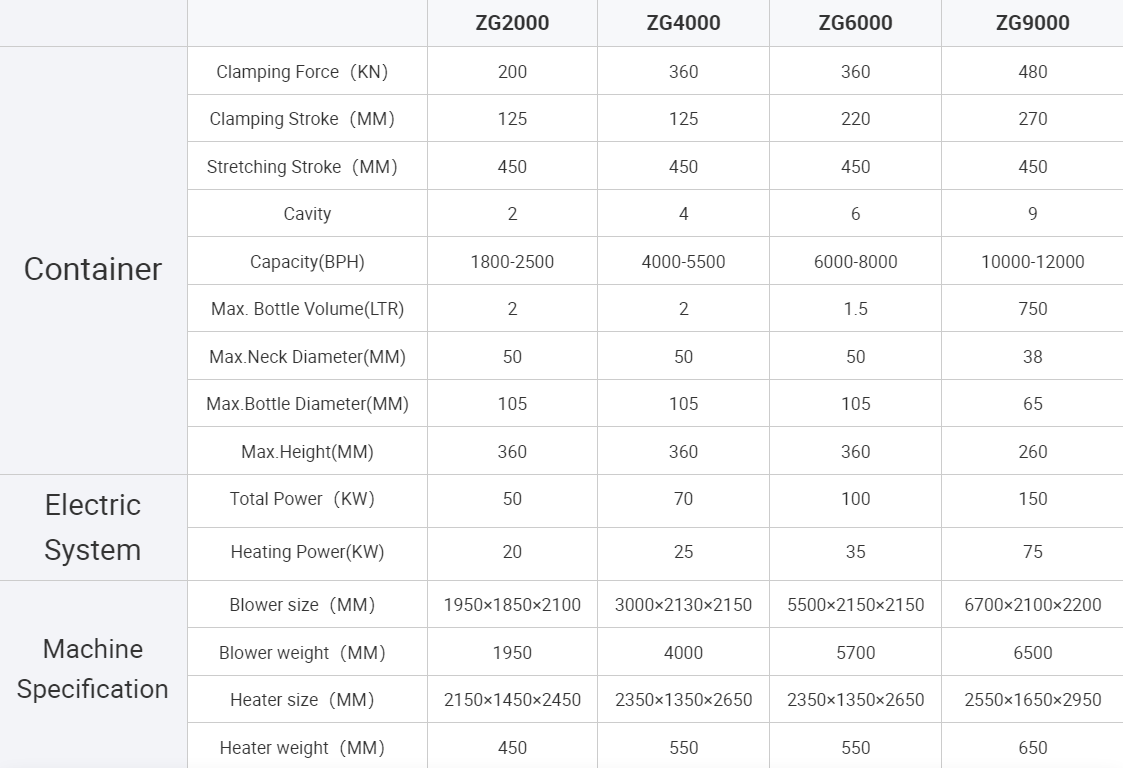

ZG2000

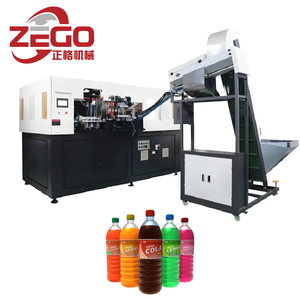

ZG4000

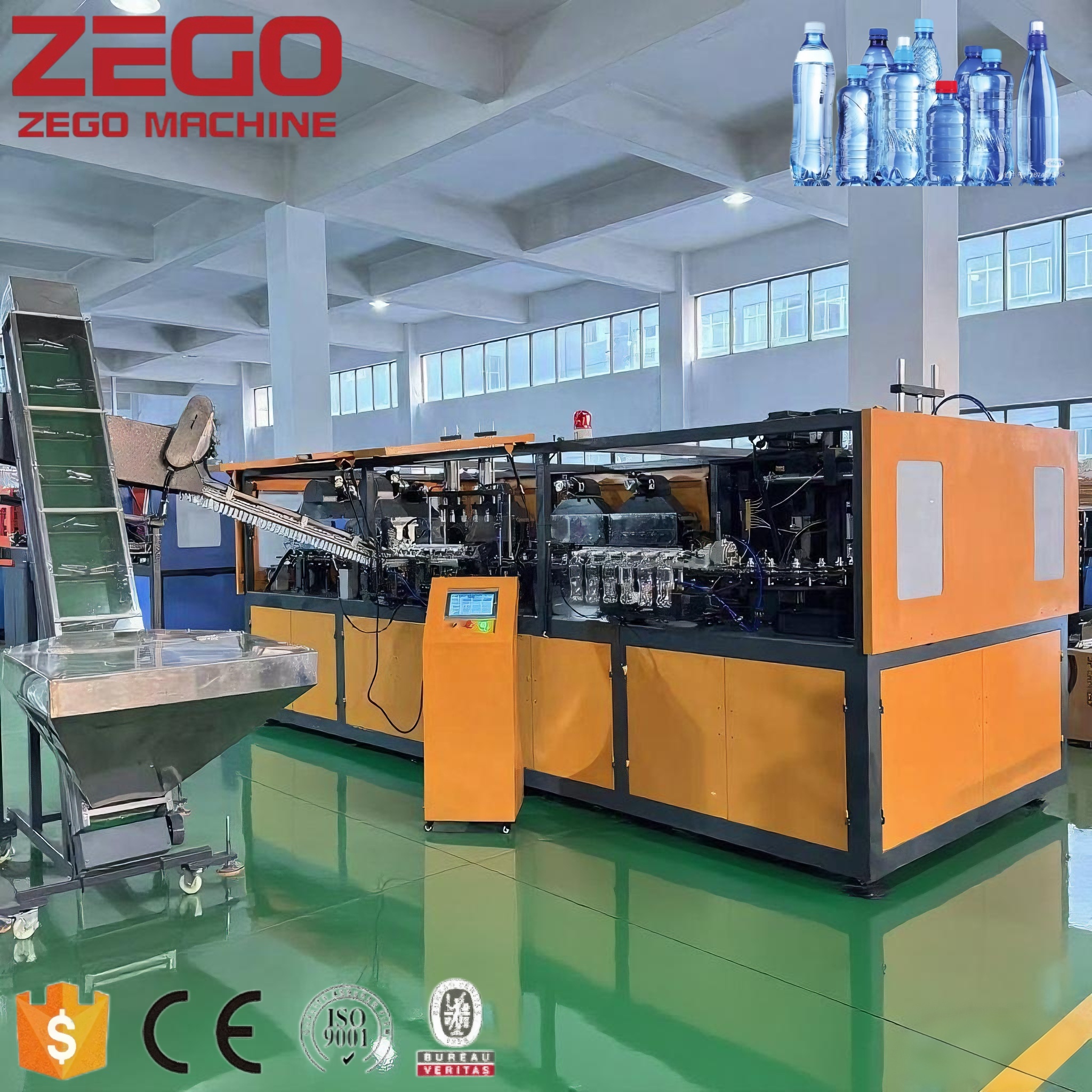

photobank (1) ZG6000

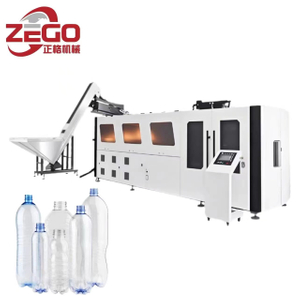

ZG9000

		ZG6000
Container	Clamping Force(KN)	360
	Clamping Stroke(MM)	220
	Stretching Stroke(MM)	450
	Cavity	6
	Capacity(BPH)	6000-8000
	Max.Bottle Volume(LTR)	1.5
	Max.Neck Diameter(MM)	50
	Max.Bottle Diameter(MM)	105
	Max.Height(MM)	360
Electric System	Total Power(KW)	100
Electric System	Heating Power(KW)	35
Machine Specification	Blower size(MM)	5500×2150×2150
	Blower weight(MM)	5700
	Heater size(MM)	2350×1350×2650
	Heater weight(MM)	550

Product Features

About Company

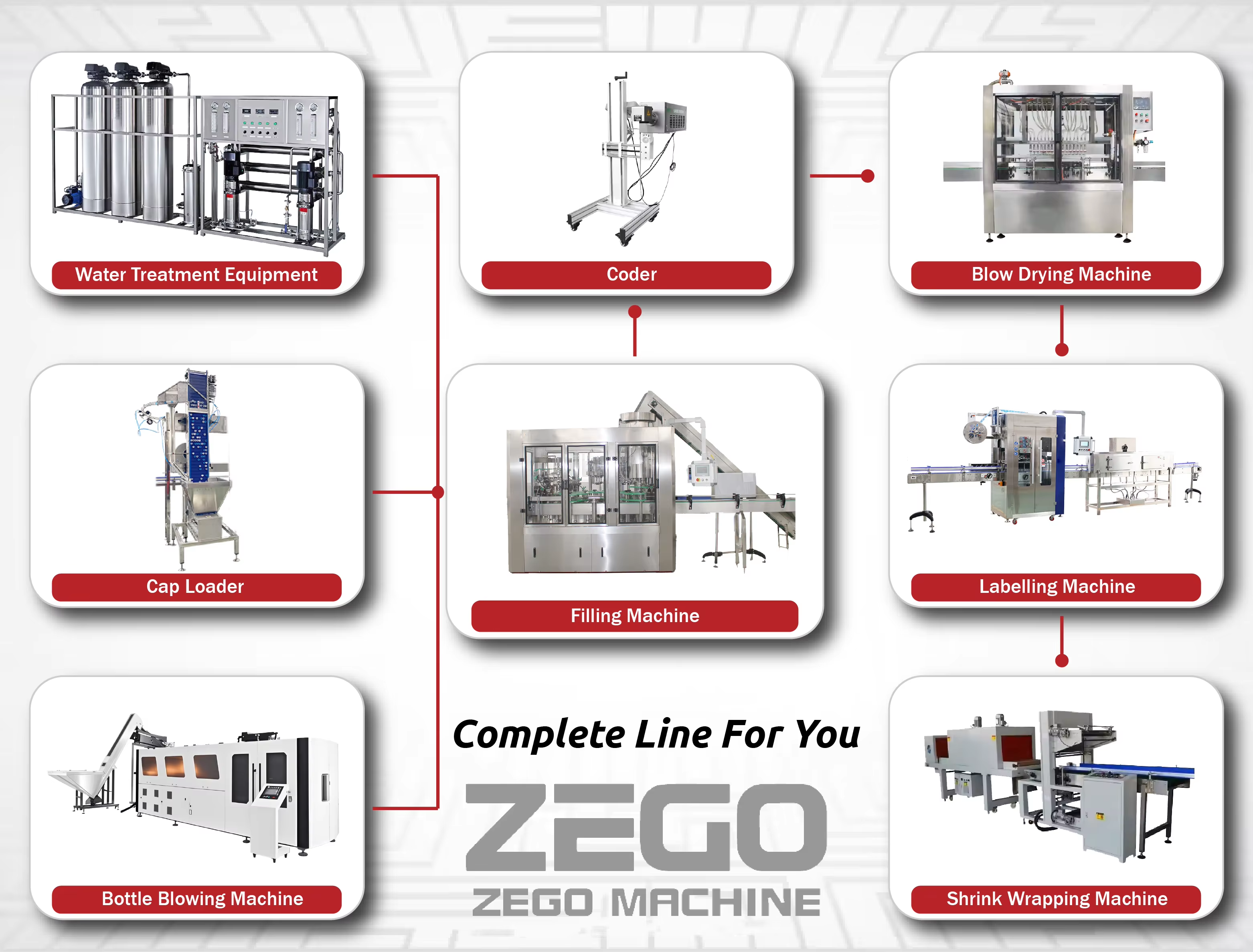

H199773d61a3b4da28c2e381cde9b34afS TAIZHOU ZEGO MACHINE CO., LTD., established in 2005, is a leading manufacturer of PET bottle blow molding packaging solutions. We provide end-to-end PET bottle solutions—from injection, blowing, filling, labeling, to packing—for industries such as water, juice, oil, detergents, cosmetics, and pharmaceuticals. Customizable with 1 to 12 cavities, produce 5ml to 50L PET bottles ,with output rates from 100 to 24,000 bottles per hour.

We maintain the “INNOVATIVE VALUE, DELICATE PRODUCTS, and PROMPTSERVICE” spirit. Our slogan is “SHAPE BOTTLES, SHAPE INDUSTRY POWER!” Our ultra-long quality assurance, remote training, competitive pricing, and reliable service have earned the trust of global clients, many of whom return for repeat purchases.
