Employs a high-end single-chip microcomputer control system, guaranteeing stable long-term operation and a low risk of malfunction.
The integrally cast frame boosts the overall rigidity and anti-vibration performance of the equipment, thus ensuring its stable operation.

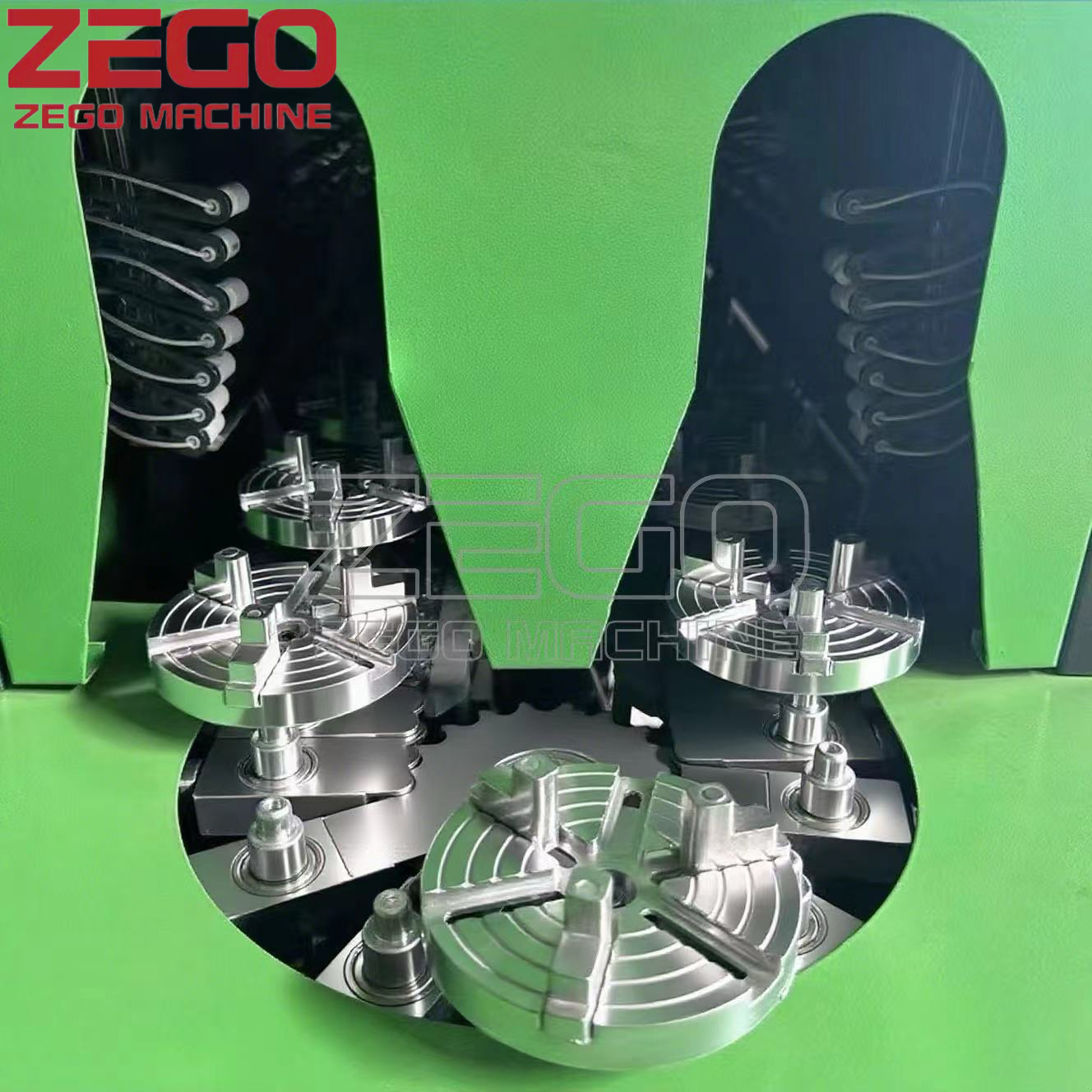

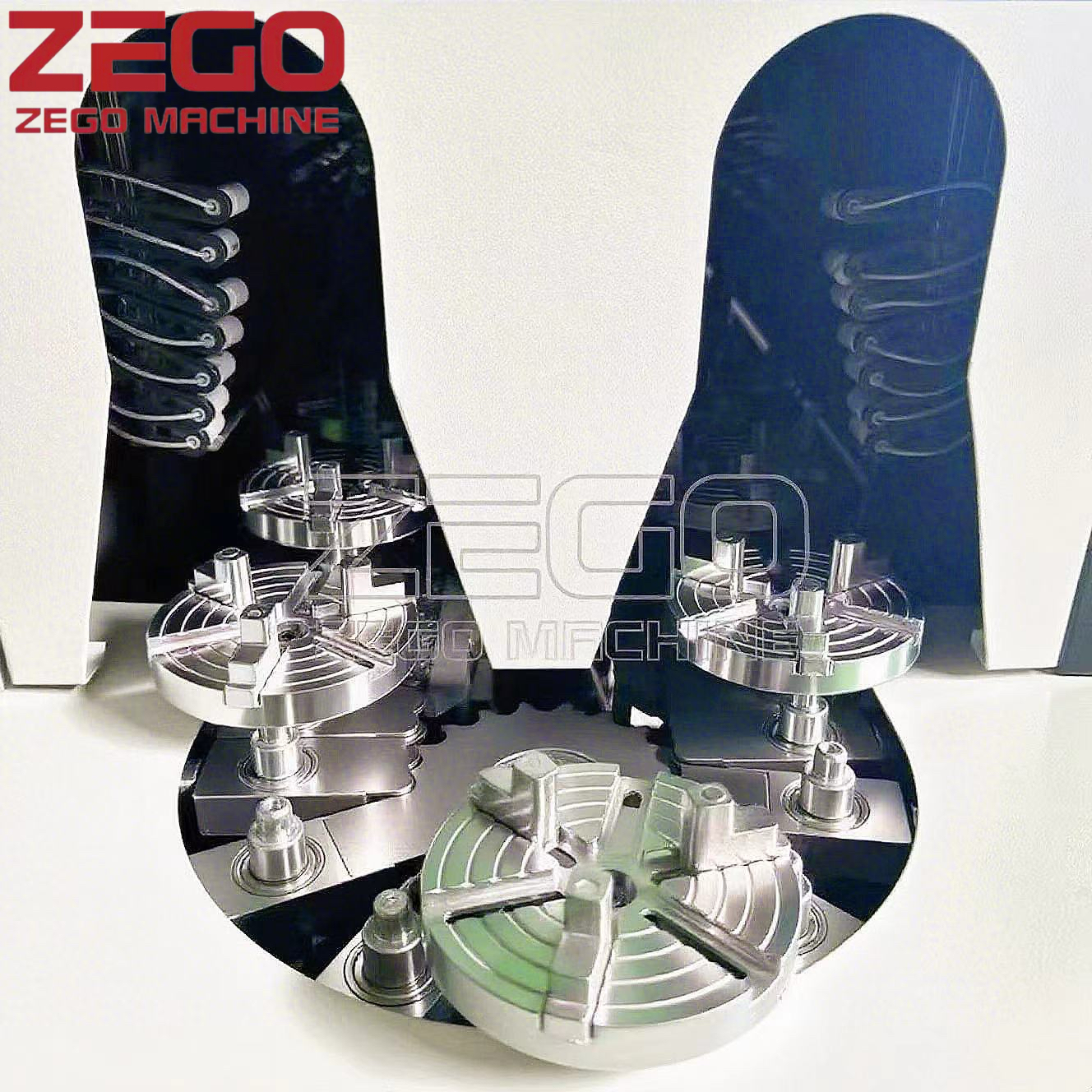

Equipped with infrared lamp heating (featuring strong penetration), the device realizes rapid, uniform, and reliable heating by means of rotating bottle preforms and orbital heating that ensures even heat distribution.
The width/height-adjustable baffles inside the heating tube are compatible with various types of bottle preforms; meanwhile, the built-in automatic exhaust function helps maintain stable heating conditions.
Every mechanical movement is equipped with a safety self-locking mechanism. In the event of a process failure, the system will automatically switch to a safe operating state.
The cylinder-driven operation (without the need for an oil pump) achieves pollution-free running and low noise levels during the equipment’s operation
| ZG500-JAR | ||
| Container | Clamping Force(KN) | 70 |
| Clamping Stroke(MM) | 155 | |
| Stretching Stroke(MM) | 370 | |
| Cavity | 1-2 | |
| Capacity(BPH) | 800-1000 | |
| Max.Bottle Volume(LTR) | 3 | |
| Max.Neck Diameter(MM) | 110 | |
| Max.Bottle Diameter(MM) | 130 | |
| Max.Height(MM) | 350 | |
| Electric Sydstem | Total Power(KW) | 8 |
| Heating Power(KW) | 5 | |
| Machine Specification | Blower size(MM) | 1650×650×1750 |
| Blower weight(MM) | 650 | |
| Heater size(MM) | 1700×670×1600 | |
| Heater weight(MM) | 350 |
