Double-Station HDPE Extrusion Blow Molding Machine for Cosmetics, Pesticide Bottles, And Edible Oil Bottles with Automatic Flash-Removal Molds | ZEGO

Double-Station HDPE Extrusion Blow Molding Machine for Cosmetics, Pesticide Bottles, And Edible Oil Bottles with Automatic Flash-Removal Molds | ZEGO


Availability:

Quantity:

Inquire Add to Basket

Model:
ZG-75
Brand:
ZEGO

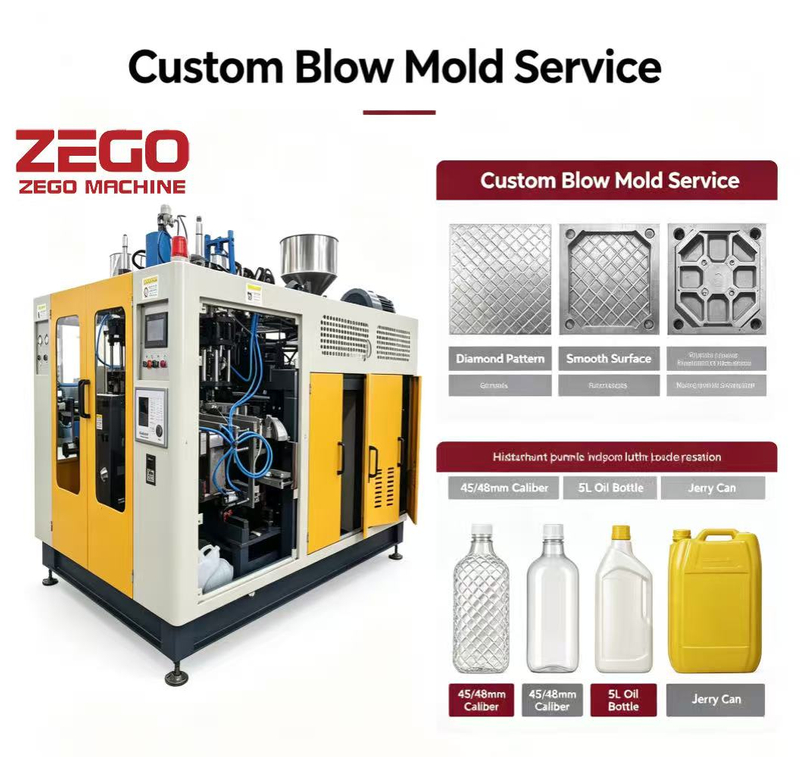

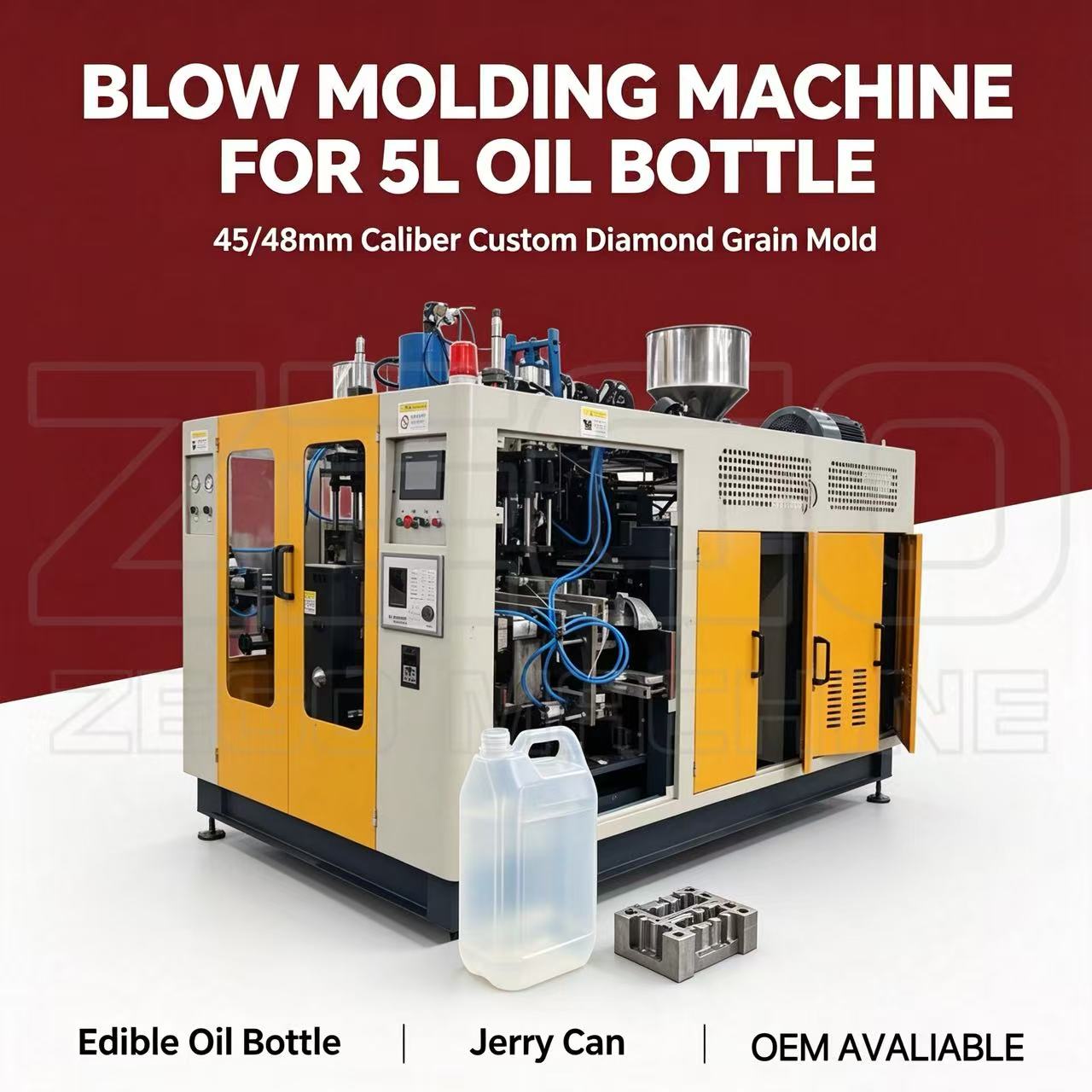

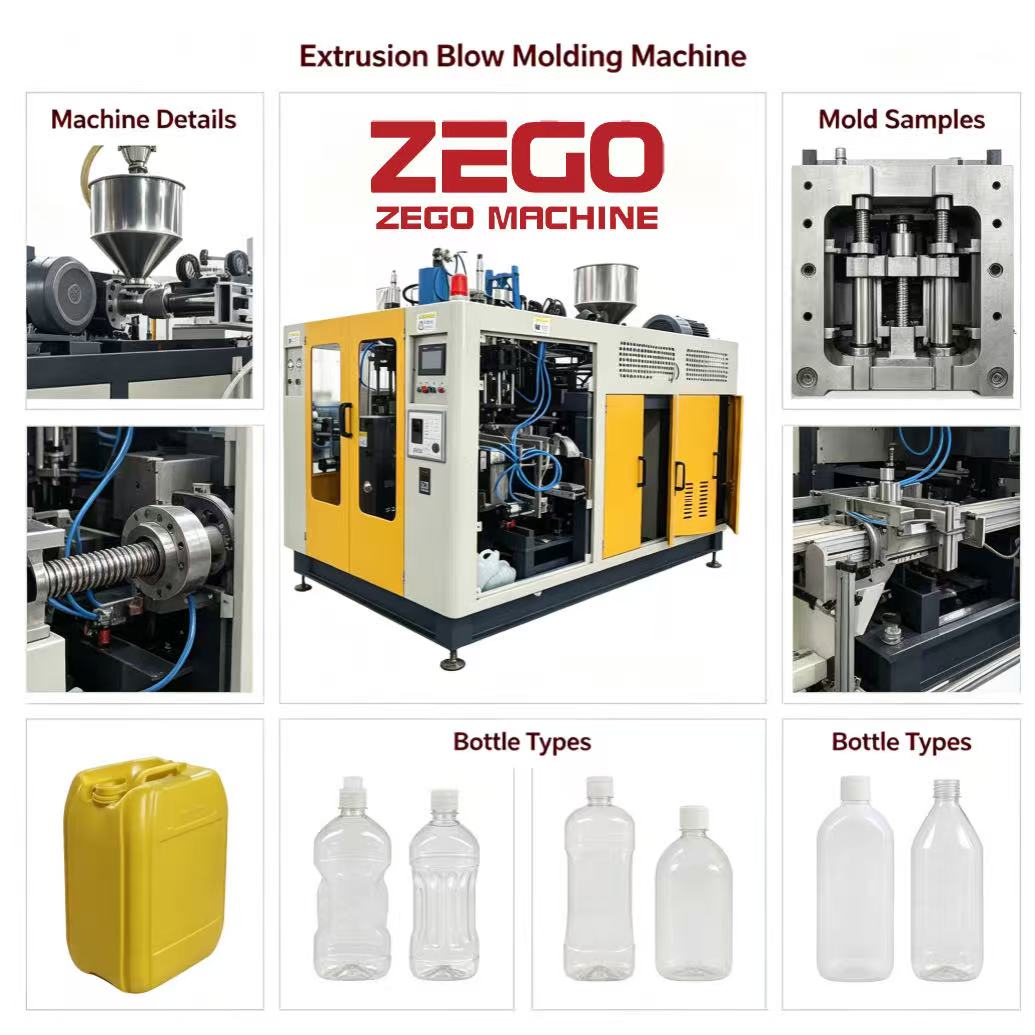

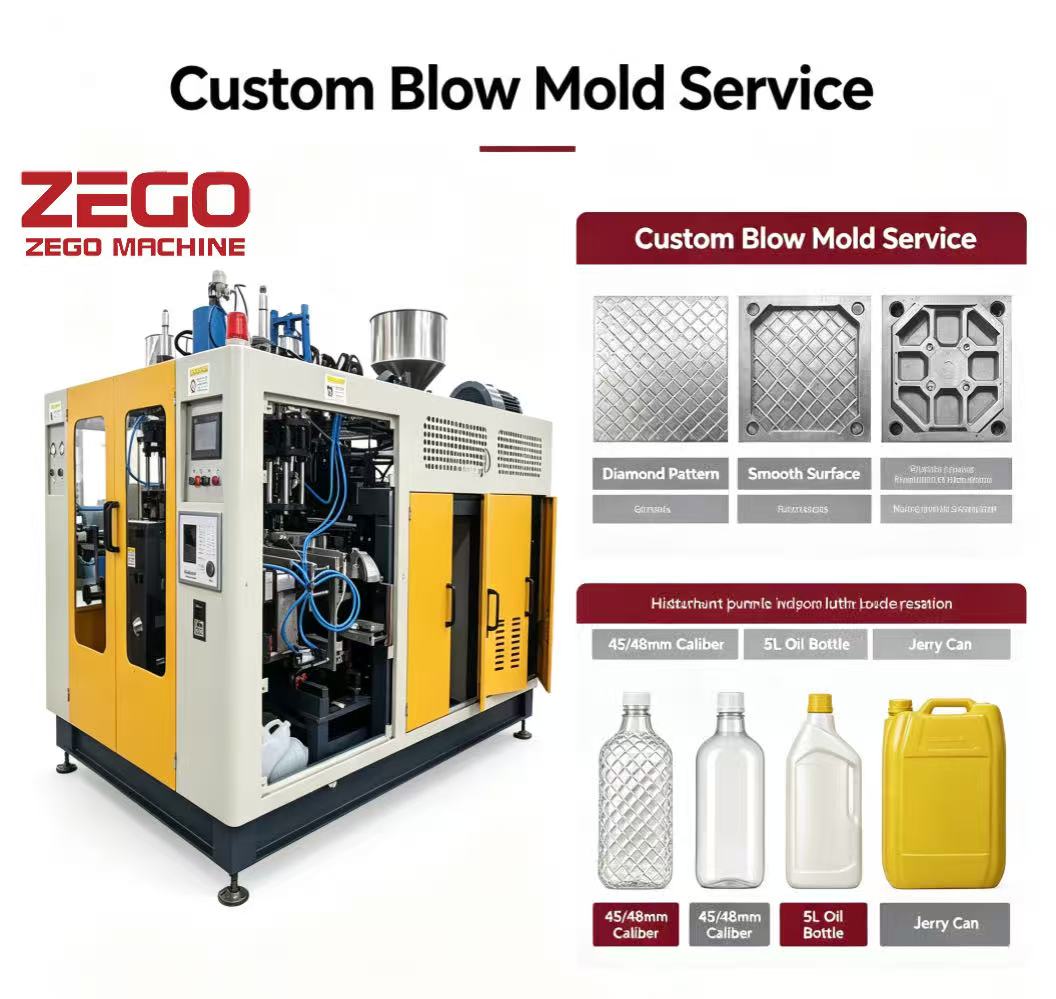

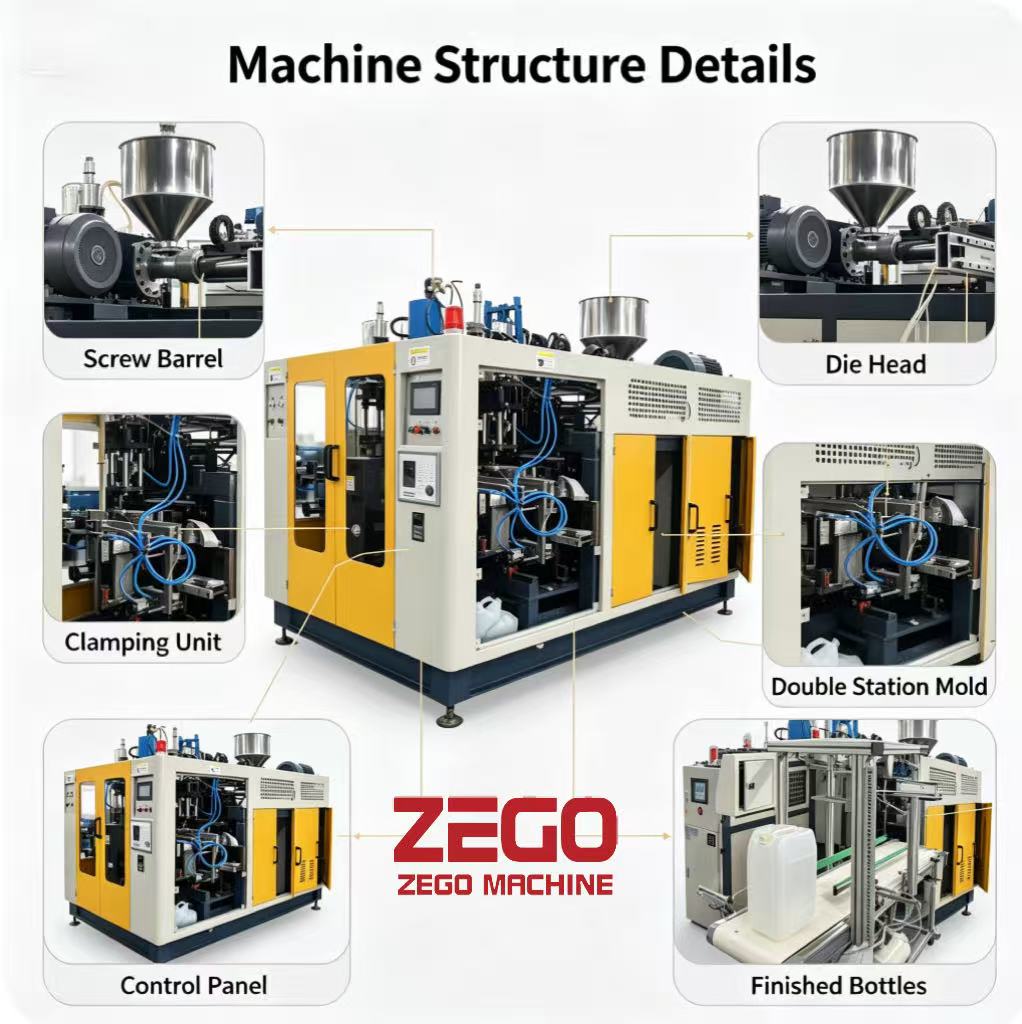

This double-station extrusion blow molding machine is used to produce HDPE plastic oil cans, chemical jerry cans and daily plastic containers ranging from 2L to 25L. It allows customization of bottle caliber (45/48mm), diamond texture, bottle shape and handle design. Featuring automatic PLC control, stable running and low maintenance cost, the machine comes with customizable molds. We offer tailored service for customers from Africa and South America.

Product Description

Basic Specifications	Unit	ZG-75	ZG-80	ZG90
Maximum Production Volume	L	7	10	15-20
Dimension	M	3.62.32.8	4.22.66.3	4.82.83.6
Weight	TON	7.2	9	12
Clamping Force	KN	220	360	380
Mold Spacing	MM	230-510	300-680	320-700
Mold Size	MM	480*320	550*420	650*460
Max Mold Size	MM	420*320	500*420	600*460
Minimum Mold Thickness	MM	240	300	325
Motor Power	KW	18.5	22	37
Air pressure	MPA	0.8	0.8	1
Air Dispacement	MPA	1.2	1.2	1.2
Maximum total power	m³/min	48	52	75
Average energy consumption	KW	≥12	≥18	≥28
Screw dimater	MM	75	80	90
Screw length to diameter ratio	L/D	25	25	25
Plasticizing capacity	KG/HR	80	95	110
Screw heating power	KW	27	30	36
Hydraulic servo motor power	KW	7.5	11	15
Max extrusion diameter	MM	180	230	280
