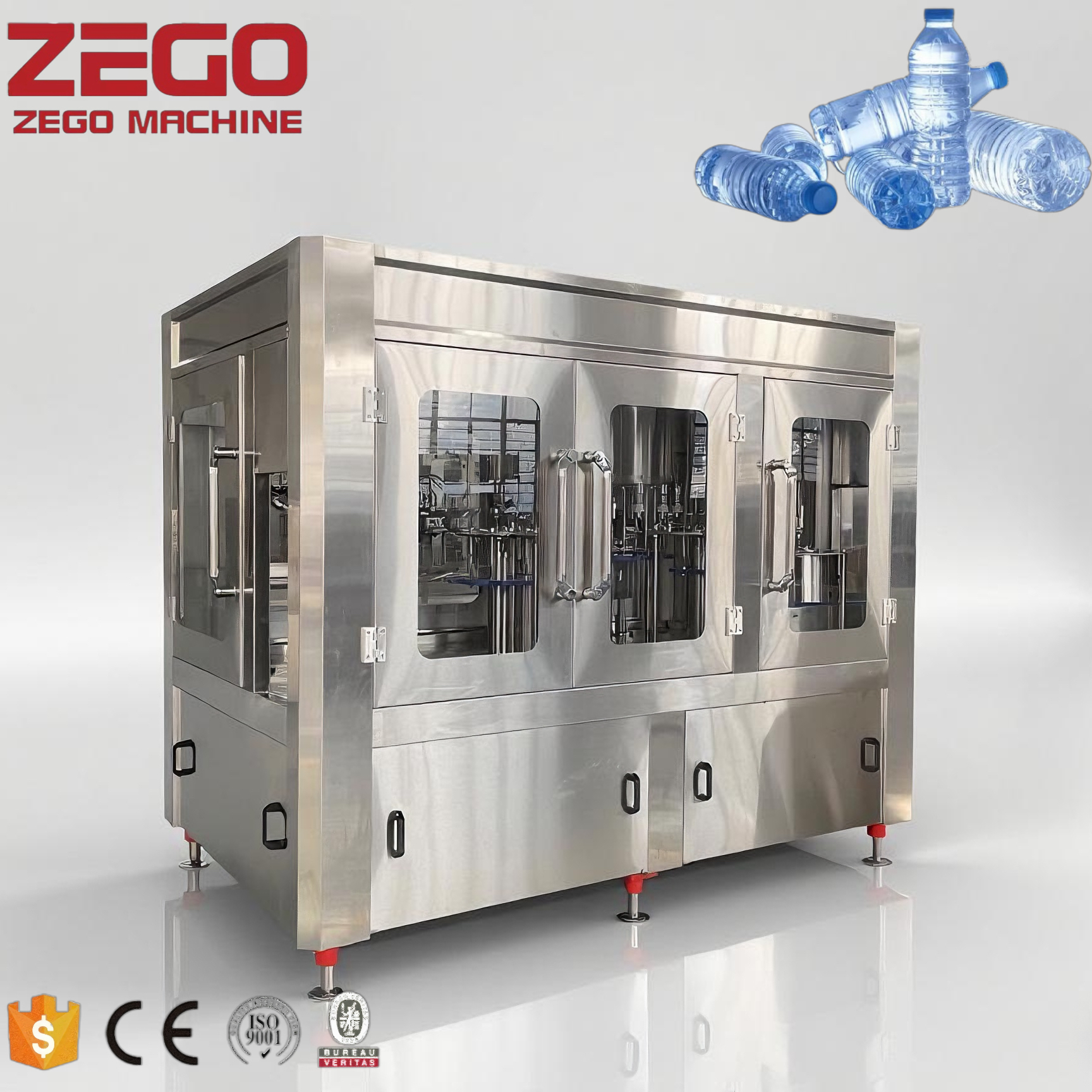

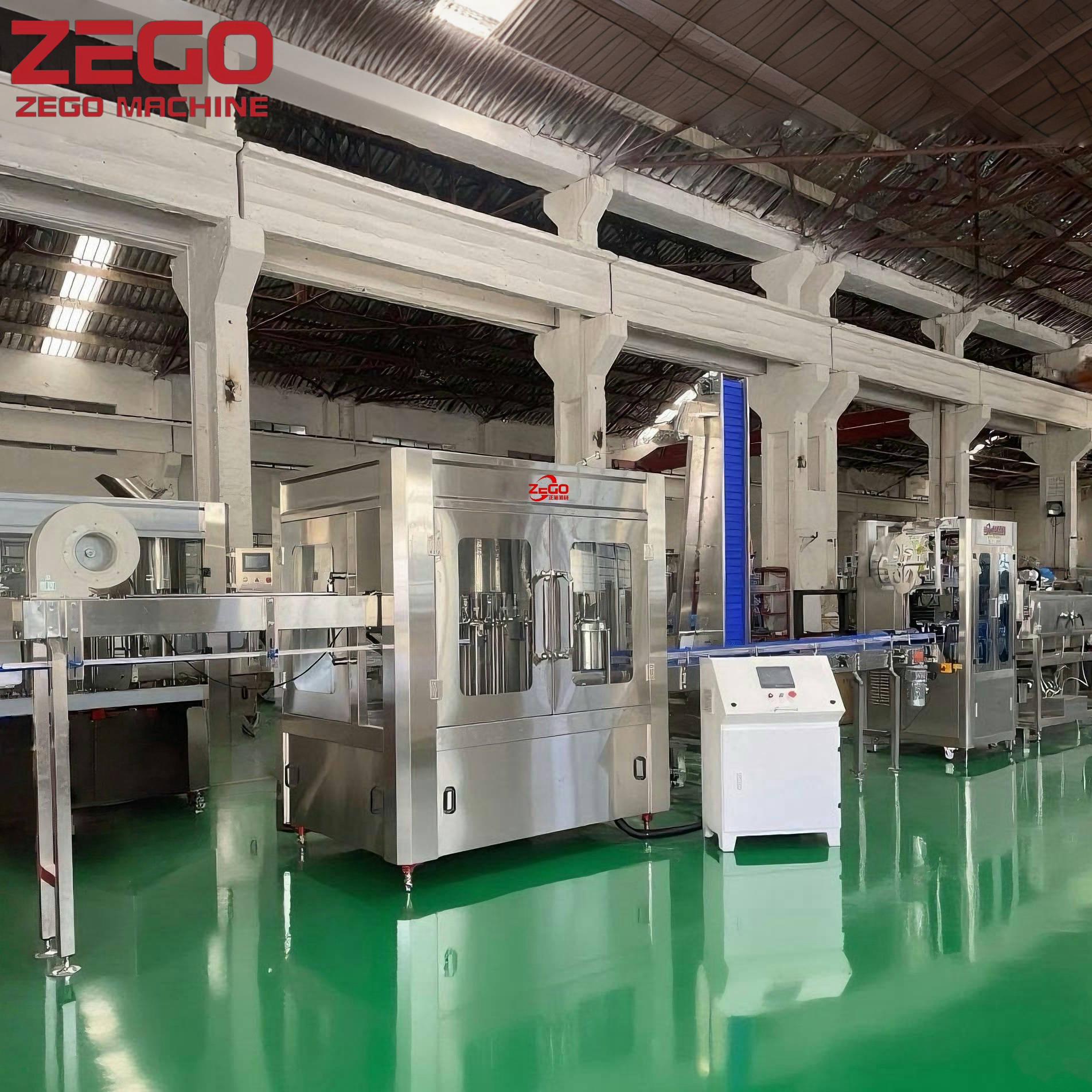

2000BPH High Efficiency Automatic Top Pure Water Liquid Filling Machine Production Line Solutions


Availability:

Quantity:

Inquire Add to Basket

Model:
ZG8-8-3
Brand:
ZEGO

360° rotary monoblock, continuous motion—no stop.
PLC control, one-touch ease, fully automatic—zero labor.
Field-proven design, high output, global-standard valves.
Latest tech, faster pure-water filling, lower cost per bottle.

Product Description

What is the production capacity of the water bottling machine?

2000ml Bottled Water: 1500 bottles per hour

1500ml Bottled Water: 1800 bottles per hour

1000ml Bottled Water: 2000 bottles per hour

500ml Bottled Water: 2500 bottles per hour

Does the machine support different bottle sizes?

Versatility Unleashed: 883 3-in-1 Pure Water Bottling Machine!

Supports Bottle Sizes: 200ml to 2000ml

Experience unmatched flexibility in your bottled water production with our 883 type 3-in-1 machine.

Through change an shape mold to fit different volume and shape plastic bottle.

Parameter

MODEL	ZG8-8-3
Capacity of production	2000-2500Bottle Per Hour
Main Motor Power	5KW
Bottle diameter	Max.100mm
Bottle height	Max.150mm
Air resource pressure	0.5Mpa
Filling Water	1-1.5T/H
Consume Water	0.8T/H
Dimension	206015902160mm
Net Weight	1800kg

Machine Details

Introduction

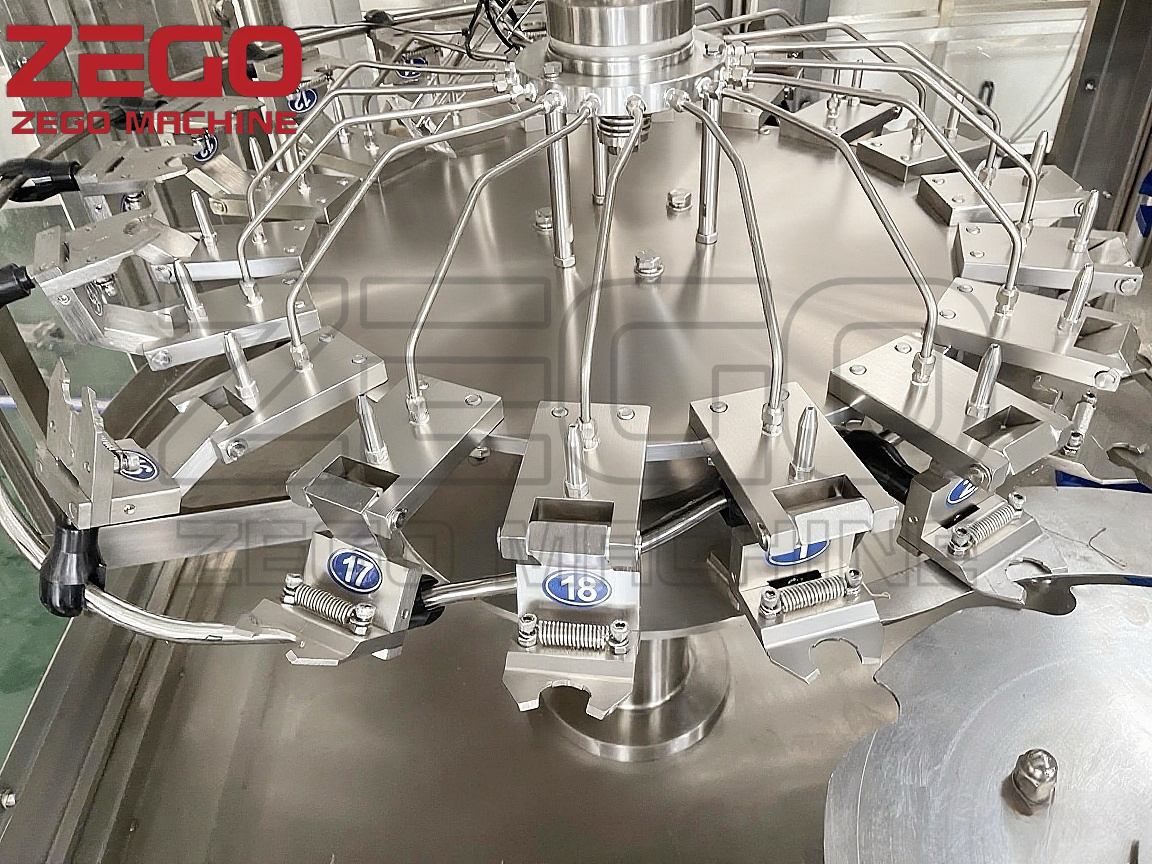

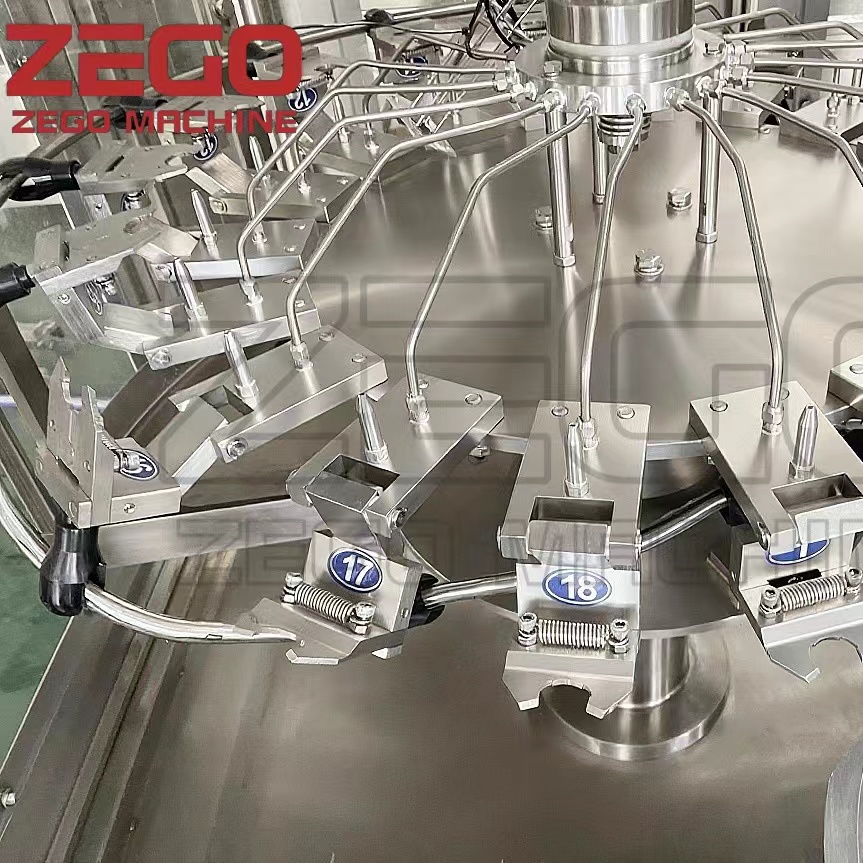

Bottling Washing

- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.

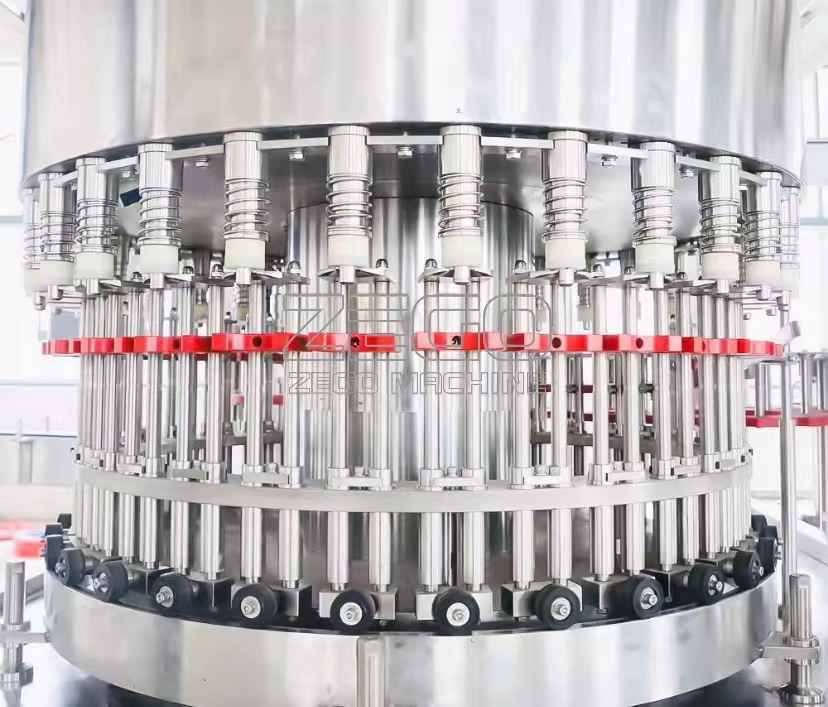

Bottling Filling

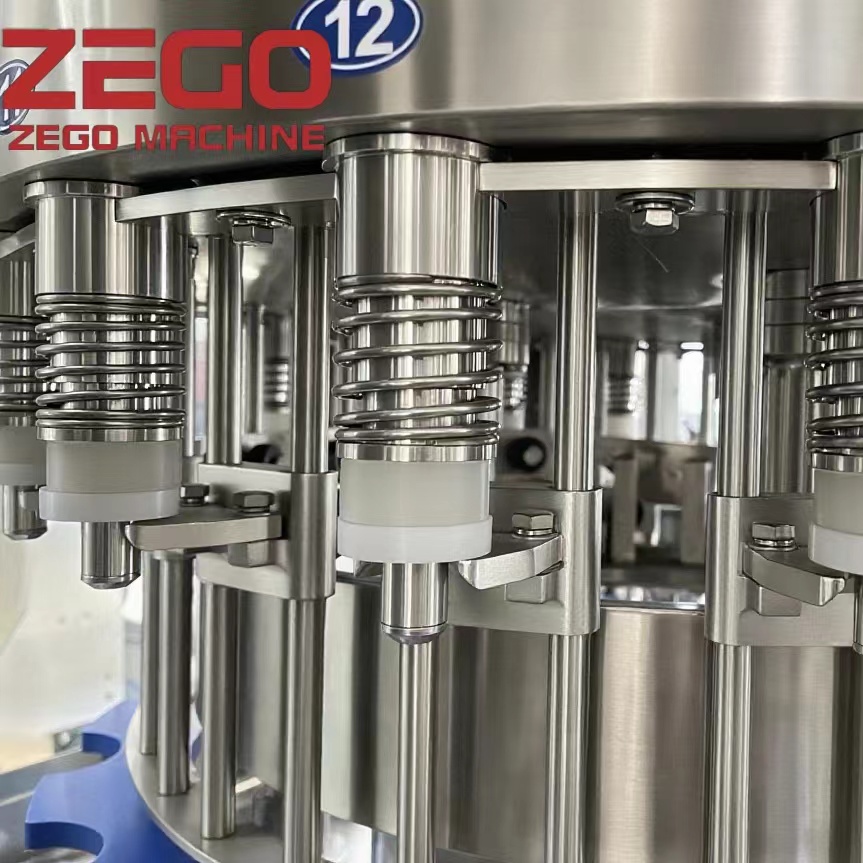

- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing

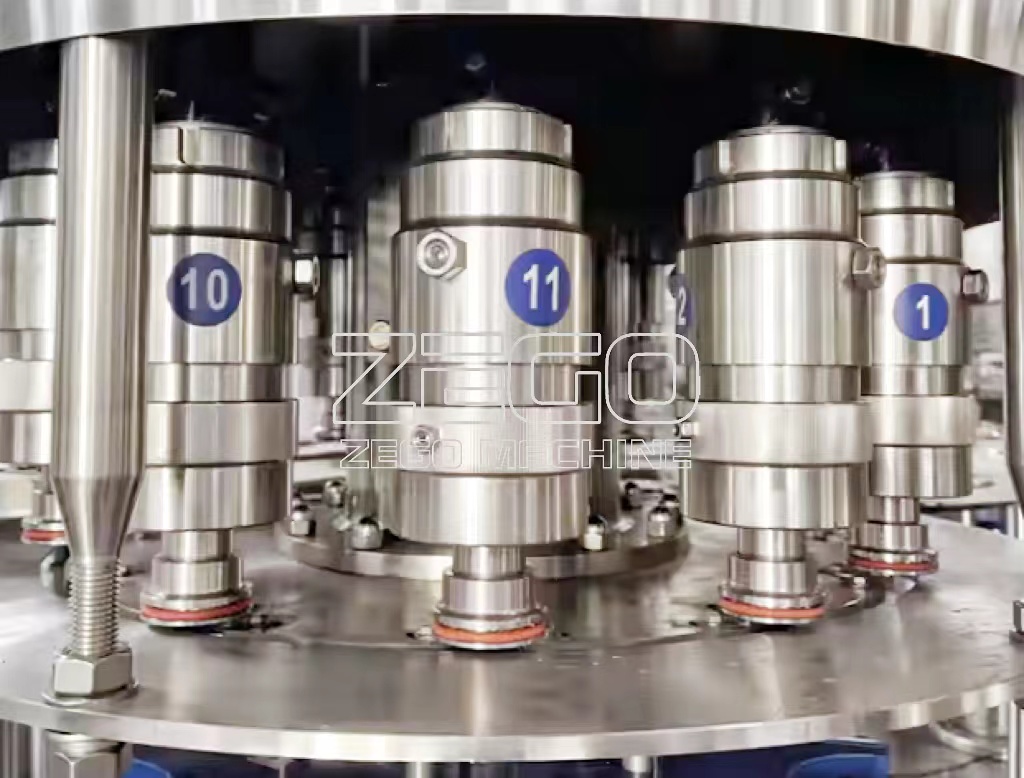

Bottling Capping

- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2%

With Customer&Package

2000BPH water bottle complete line shipping to Colombia

2000BPH juice bottle complete line shipping to South Africa

微信图片_20250625171448

微信图片_20250703164228

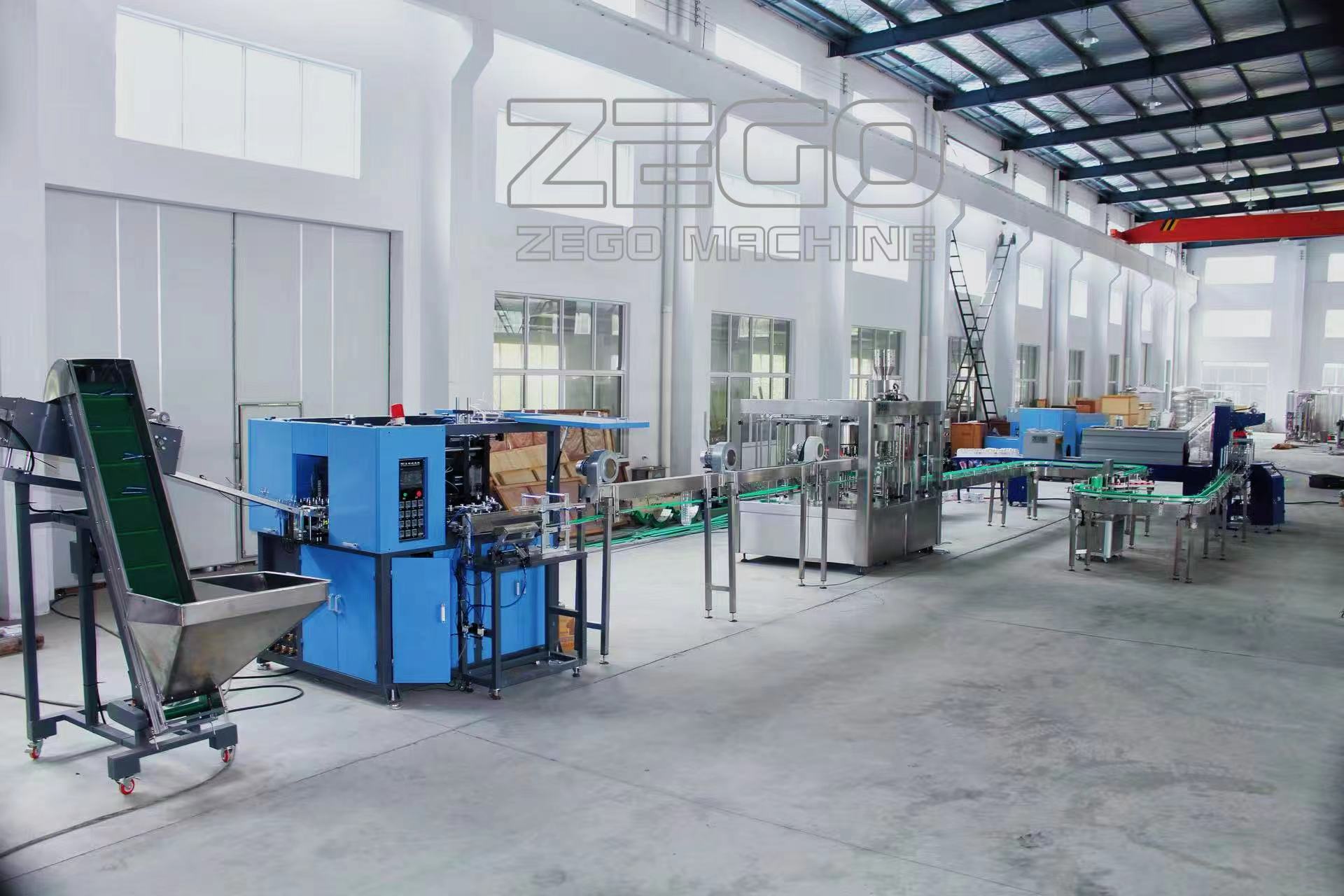

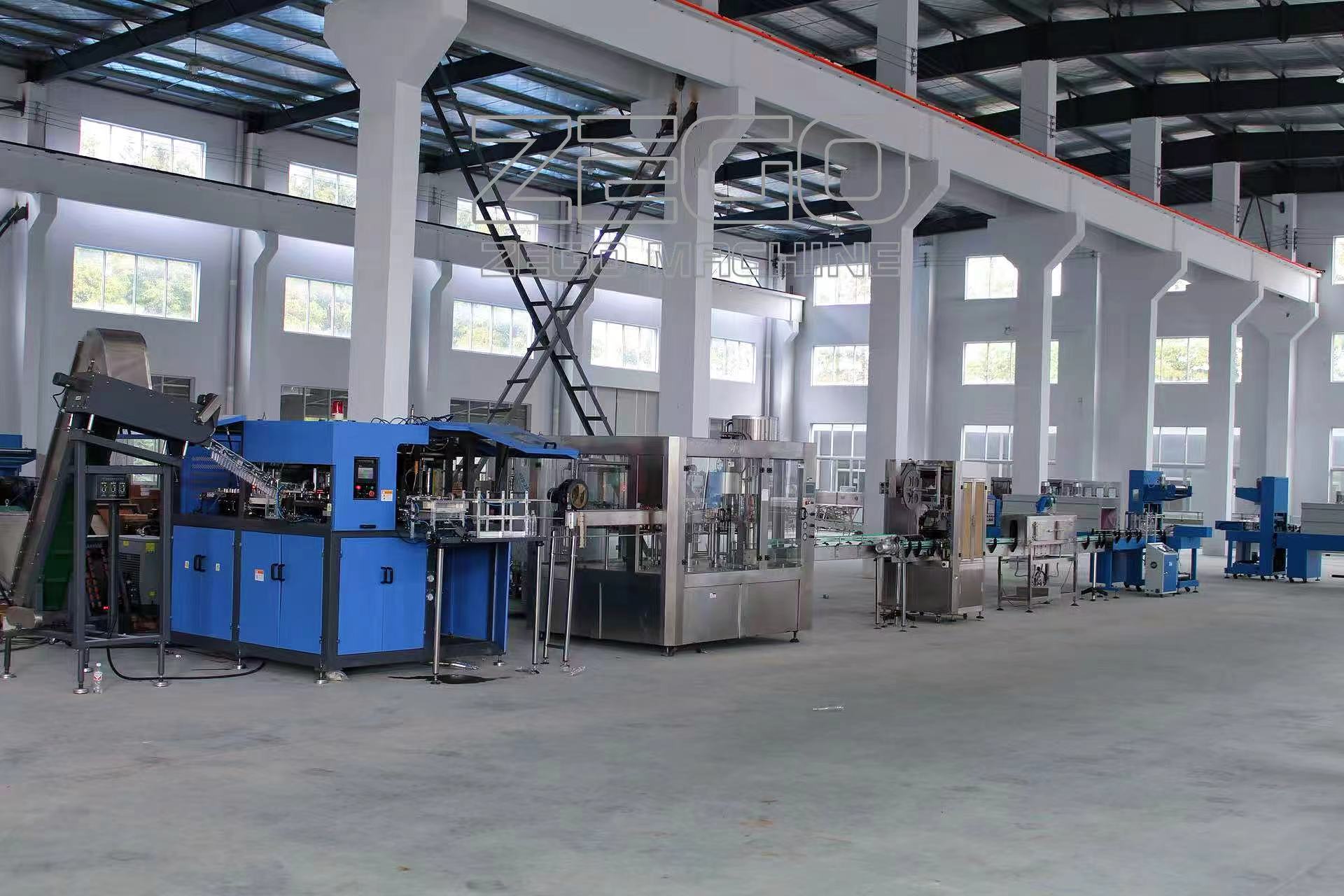

Prouduction Line

Introduction

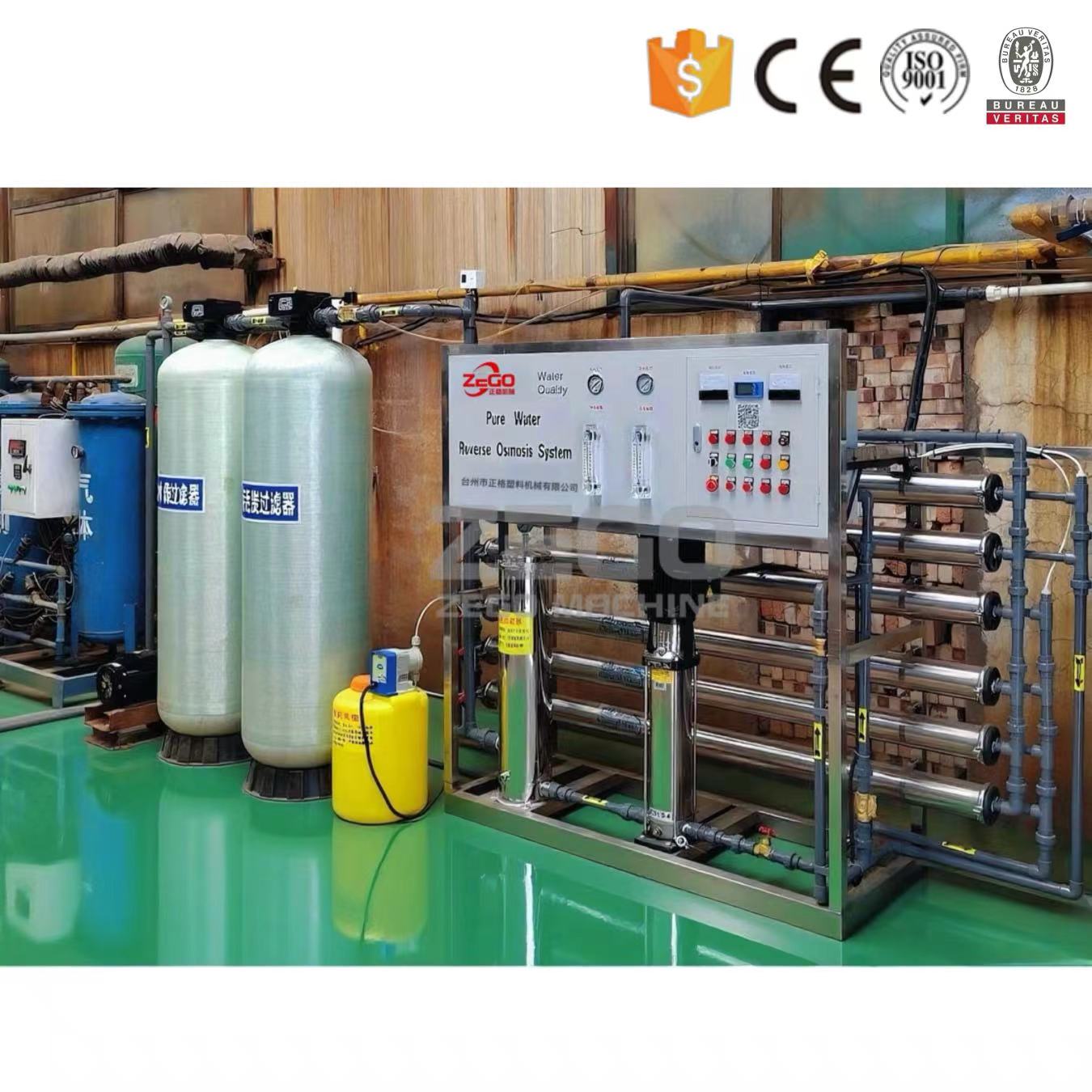

Water Treatment

We adopt different equipment to produce pure water, mineral water etc. The main equipment of RO Water Treatment Plant are silica sand filter, active carbon filter, sodium ion exchanger, hollow fiber, RO, UV sterilizer, precision filter, ozone generator, water tank etc.
Bottle Blowing Machine

Bottle blowing machine adopts our most advanced blowing technologies. This machine is a high intelligent, stable and reliable blowing machine,with simple structure,and low energy consumption.
Filling Machine

CGF water filling machine adopts the suspension design. It allows the machine to fill different type of the bottles. It is normally used as drinking water filling machine. However, it can also be used for fill PET bottle with fruit juice and tea drinks at high temperature by simply change the accessories.

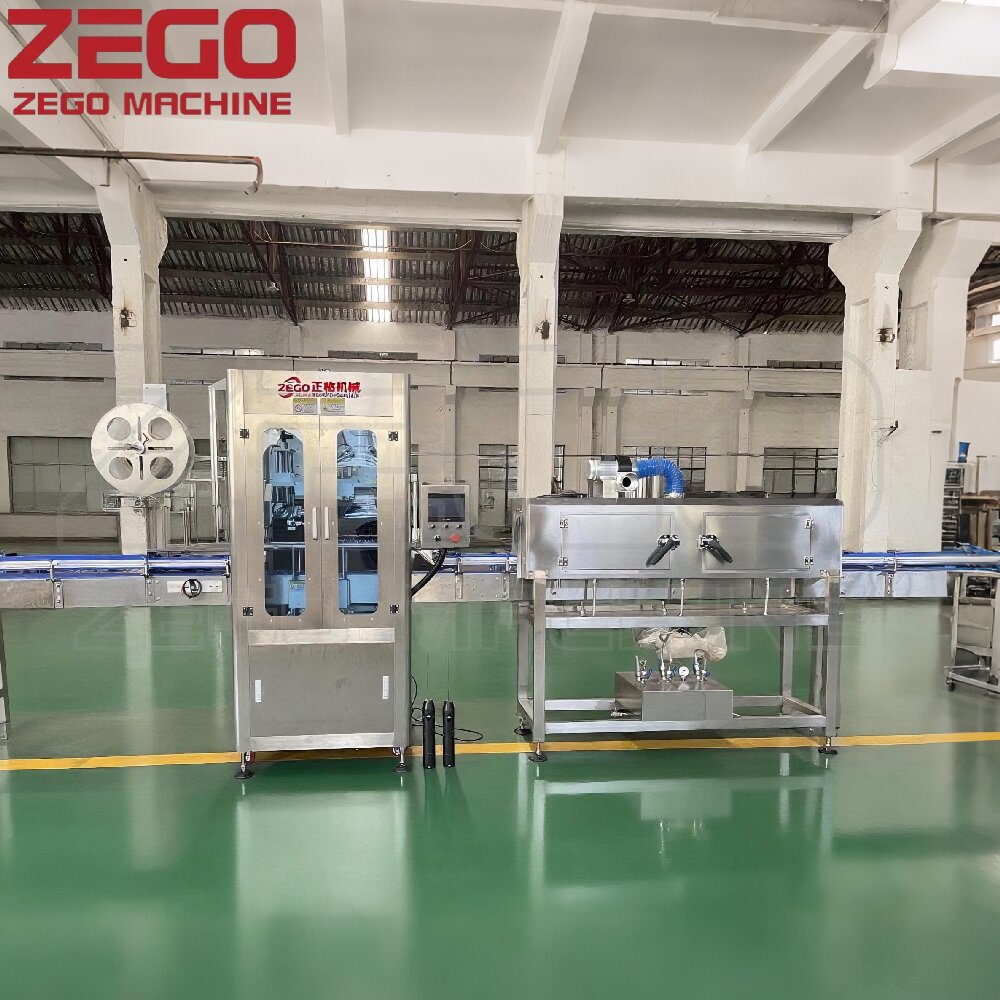

Labeling Machine

Including PVC Shrinking Labeling Machine, OPP labeling machine, Self-adhesive / Sticker labeling machine, Etc.
Widely used for different material of container and label. The label cost is comparatively lower, it can meet therequirements of those users who have diverse kinds of the containers.

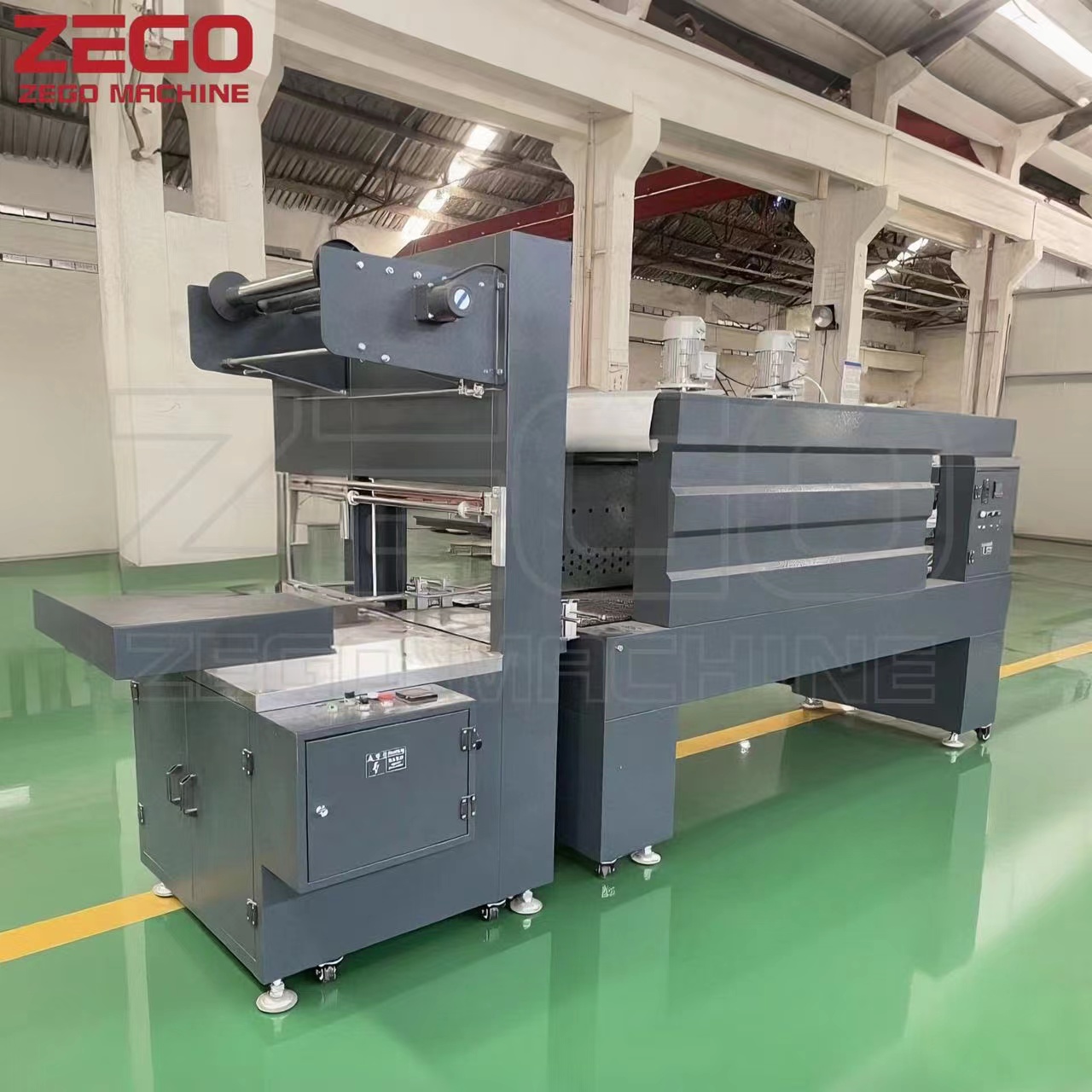

Package Machine

PE film heat shrink wrapping machine is suitable for wrapping of such products as pop top, mineral water, bottles, drinks etc. Working with PE film shrink tunnel to pack the goods perfectly , the whole production process adopts the Germany advanced technics, and the main parts are imported from international famous company.
