How To Build A Complete Bottled Water Plant: Essential Equipment & Practical Guide

Launching a bottled water plant remains one of the most attractive investment opportunities for beverage entrepreneurs across global markets. Clean drinking water is always in high demand for retail stores, offices, hotels and community distribution. However, many new investors underestimate how many interconnected systems are required to run stable, compliant bottled water production.

Building a profitable water bottling plant is not simply purchasing one single machine. It requires a full production workflow: raw water purification, PET bottle forming, hygienic filling, brand labeling and finished goods packing. Every piece of equipment must match your target output, bottle specifications and workshop layout.

In this article, we walk you through the full setup process, list all must have machinery, and share practical tips for startup and medium scale projects, with real world solution experience from ZEGO Machine.



Step 1: Project Planning Before Buying Any Machinery

Before ordering production equipment, finish basic feasibility research to avoid costly later stage adjustments.

1. Confirm your target hourly output: small scale lines usually run from 1000-3000 bottles per hour, while industrial plants can reach 8000-24000 BPH.

2. Define bottle sizes: common options include 330ml, 500ml, 1L, 1.5L and 5 gallon large water jugs.

3. Measure your workshop space: calculate available length, width and ceiling height for machine layout and future expansion.

4. Check local power supply, raw water source and food safety regulations for bottled beverage manufacturing.

Many first time buyers skip this planning phase and end up with mismatched equipment. Working with an experienced machinery supplier like ZEGO Machine helps you generate custom plant layouts according to your actual conditions.



Step 2: 5 Core Equipment Modules for a Full Bottled Water Line

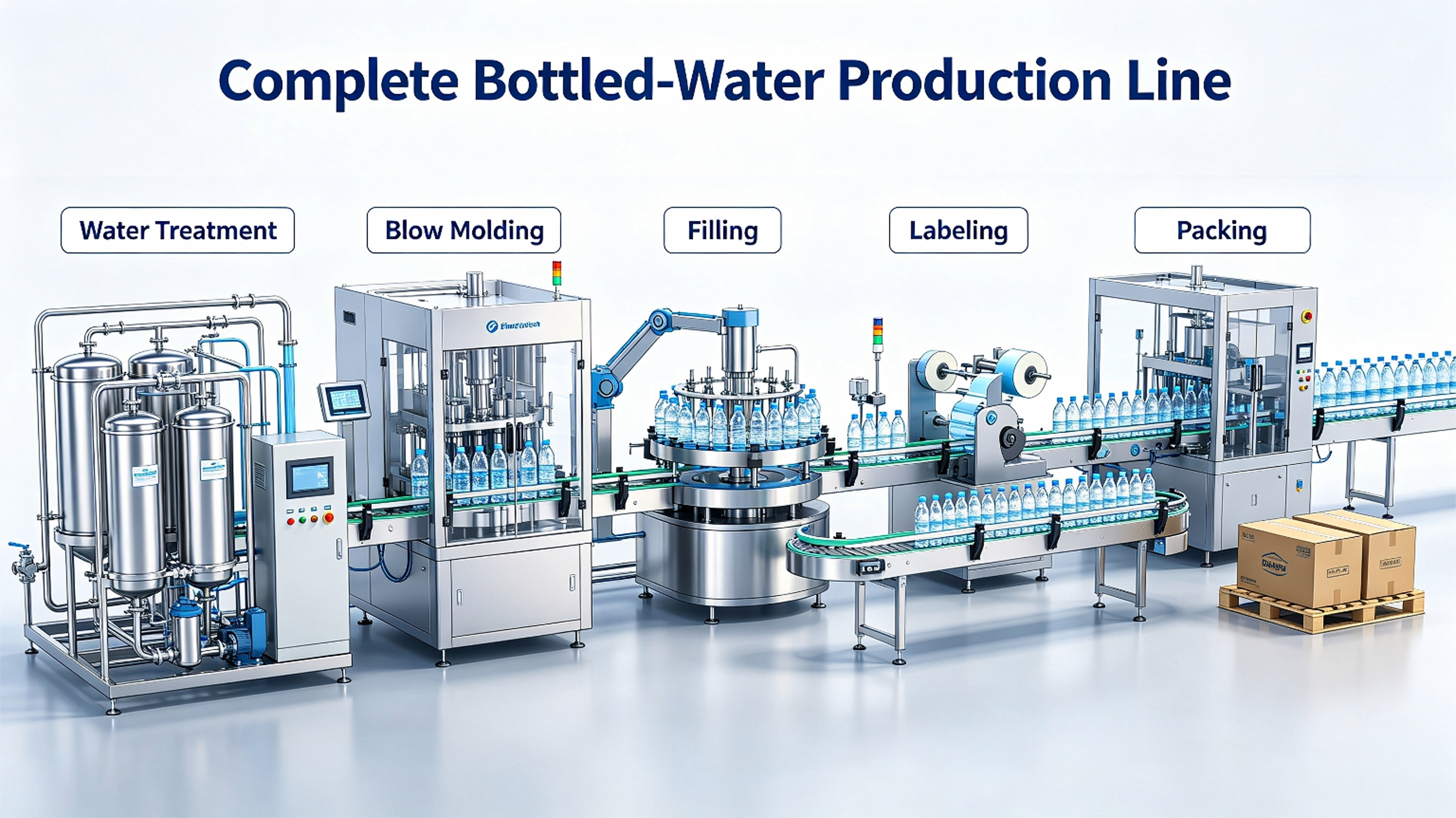

A complete in house bottled water plant mainly consists of five core groups of equipment: water treatment equipment, PET blow molding machine, filling machine, labeling machine and packing machine. Each module serves an irreplaceable role in the whole production chain.

1. Water Treatment Equipment — The Foundation of Product Quality

No bottled water business can succeed without reliable water purification. Raw water from wells, springs or municipal pipelines contains suspended solids, heavy metals, bacteria and peculiar smells that must be removed before bottling.

A standard water treatment system includes multi-media filters, activated carbon filters, water softener, precision filters, RO reverse osmosis membrane and UV or ozone sterilizer. The whole system turns raw water into purified drinking grade water that meets local beverage safety standards.

Capacity of the water treatment unit must be higher than your filling line consumption, preventing production stops caused by insufficient purified water supply. ZEGO Machine configures matched water treatment capacity for every turnkey water plant project.

2. PET Blow Molding Machine — Produce Your Own Empty Bottles

Buying ready made PET bottles from third party suppliers brings high packaging costs and unstable delivery cycles. More and more water plant owners choose to produce empty PET bottles on-site with blow molding machines.

PET blow molding machines heat PET preforms and stretch blow them into finished bottles under high pressure air. You can switch molds to make different bottle shapes for mineral water, juice or edible oil containers.

For small budget startups, semi automatic blow molding machines are cost effective choices. For mass production factories, full automatic servo driven blow molding machines deliver high hourly output with low failure rates.

ZEGO Machine supplies both semi automatic and full automatic PET bottle blowing machines, compatible with diversified preform weights and multi-cavity molds. The blow molding unit can connect with filling machines via air conveyors to realize automatic empty bottle feeding without manual contact.

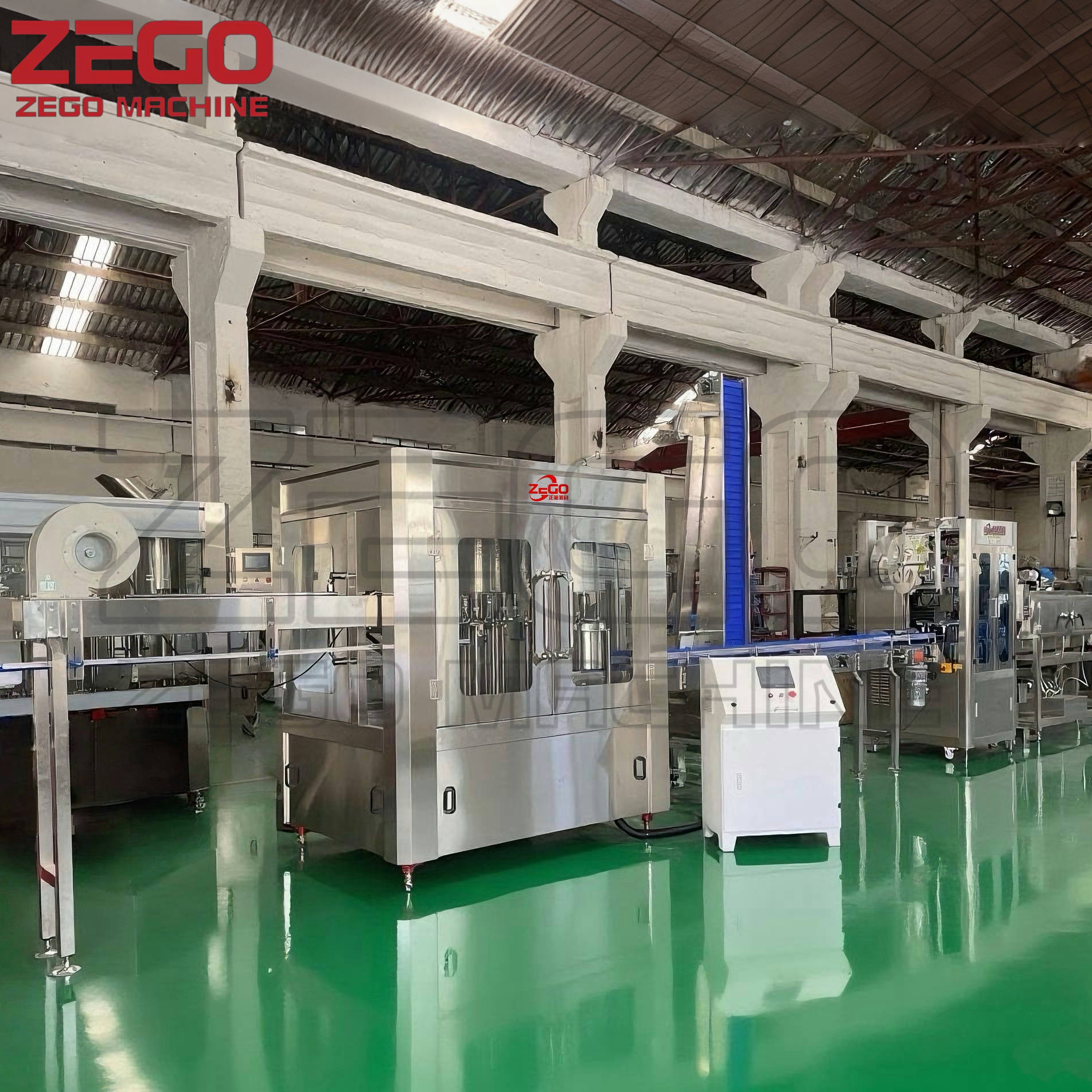

3. Filling Machine — The Heart of Bottling Production

The filling machine is the central host of your whole bottling plant. Most water production projects adopt 3-in-1 monoblock filling machines, integrating bottle rinsing, water filling and capping within one compact unit.

Food grade stainless steel material guarantees hygiene during filling. Precise liquid level control avoids over filling or under filling issues. Different filling speeds are available for small batch workshops and large volume beverage factories.

When designing the production line, keep the output of filling machines consistent with blow molding capacity. Unmatched speeds will create bottle stockpiles or frequent line halts.

4. Labeling Machine — Add Brand Identity to Finished Bottles

After bottles are filled and capped, labeling machines apply self-adhesive labels or shrink labels onto bottle surfaces. Labels carry your brand logo, product name, production information and barcodes, which are essential for retail sales.

Labeling equipment needs stable running performance to reduce label wrinkling and offset defects. It supports round bottles and some special shaped containers. If you plan to print batch numbers and expiry dates, you can add a laser coding device together with the labeling machine.

5. Packing Machine — Prepare Bottles for Storage & Logistics

The final production step is packaging. A packing machine gathers finished bottles into groups and completes shrink film wrapping or carton packing. Packed bundles are easy for stacking, warehousing and transportation to distributors and retail markets.

Without automatic packing equipment, you will need large numbers of workers for manual packing, which increases labor cost and limits your overall production capacity.



Step 3: Two Typical Line Solutions for Different Investors

Option A: Small Scale Startup Water Plant

Suitable for new market entrants with limited investment.

· Water treatment system: low to medium capacity RO system

· Blow molding: semi automatic PET blow molding machine

· Filling: compact 3-in-1 monoblock filling unit

· Labeling & packing: semi automatic labeling machine + semi automatic shrink packing machine

ZEGO Machine often recommends this combination for clients testing local water bottle market demand. It occupies less workshop space and requires fewer operators.

Option B: Large Capacity Industrial Water Plant

For mature beverage businesses pursuing high volume mass production.

· Full flow large capacity water treatment equipment

· Full automatic servo multi-cavity PET blow molding machine

· High speed continuous running filling monoblock

· Automatic labeling machine with bottle dryer device

· Automatic shrink wrap or carton packing machine

All modules can be linked by conveyor systems to achieve nearly unattended 24 hour production.



Step 4: Why Choose Turnkey Solution from ZEGO Machine

Many investors buy machines from different separate suppliers, which leads to poor equipment matching, difficult on-site debugging and scattered after sales support.

ZEGO Machine provides one stop turnkey water bottling plant solutions covering water treatment equipment, PET blow molding machine, filling machine, labeling machine and packing machine. Our engineering team completes line matching calculation, layout drawing, pre-shipment testing, installation guidance and operator training for global customers.

Whether you run a small startup workshop or expand an existing beverage factory, we customize equipment configuration based on your target output, bottle types, workshop size and budget.



Frequently Asked Questions

Q: Do I have to install a blow molding machine in my water plant?

A: No. You can purchase finished empty PET bottles externally. But building your own blow molding station cuts long term packaging cost and gives you freedom for custom bottle shape development.

Q: What bottle sizes can a complete water bottling line produce?

A: Normally from 200ml up to 20L large water jugs. Machine configuration and molds need to be adjusted for different bottle volumes.

Q: How many workers does a small bottled water plant require?

A: Semi automatic lines need 3-6 operators. Fully automatic integrated lines can run with only 1-2 staff for monitoring.



Final Thoughts

Building a bottled water plant is a systematic project. Success depends not only on machine quality, but also on reasonable matching among water treatment, bottle making, filling, labeling and packing sections.

If you are planning to set up or upgrade your bottled water production facility, contact ZEGO Machine. Share your expected hourly output, bottle sizes and workshop conditions, and our team will send you a customized plant layout and quotation proposal.
